AERMEC NRL - 20.2. DIMENSIONAL TABLES

OUT 4”
IN 4”
369 - 568*
OUT 4”
IN 4”
2450
8100
2200
Position AVX
Evaporator water connections
DESUPERHEATER water connections
IN 2”
OUT 2”

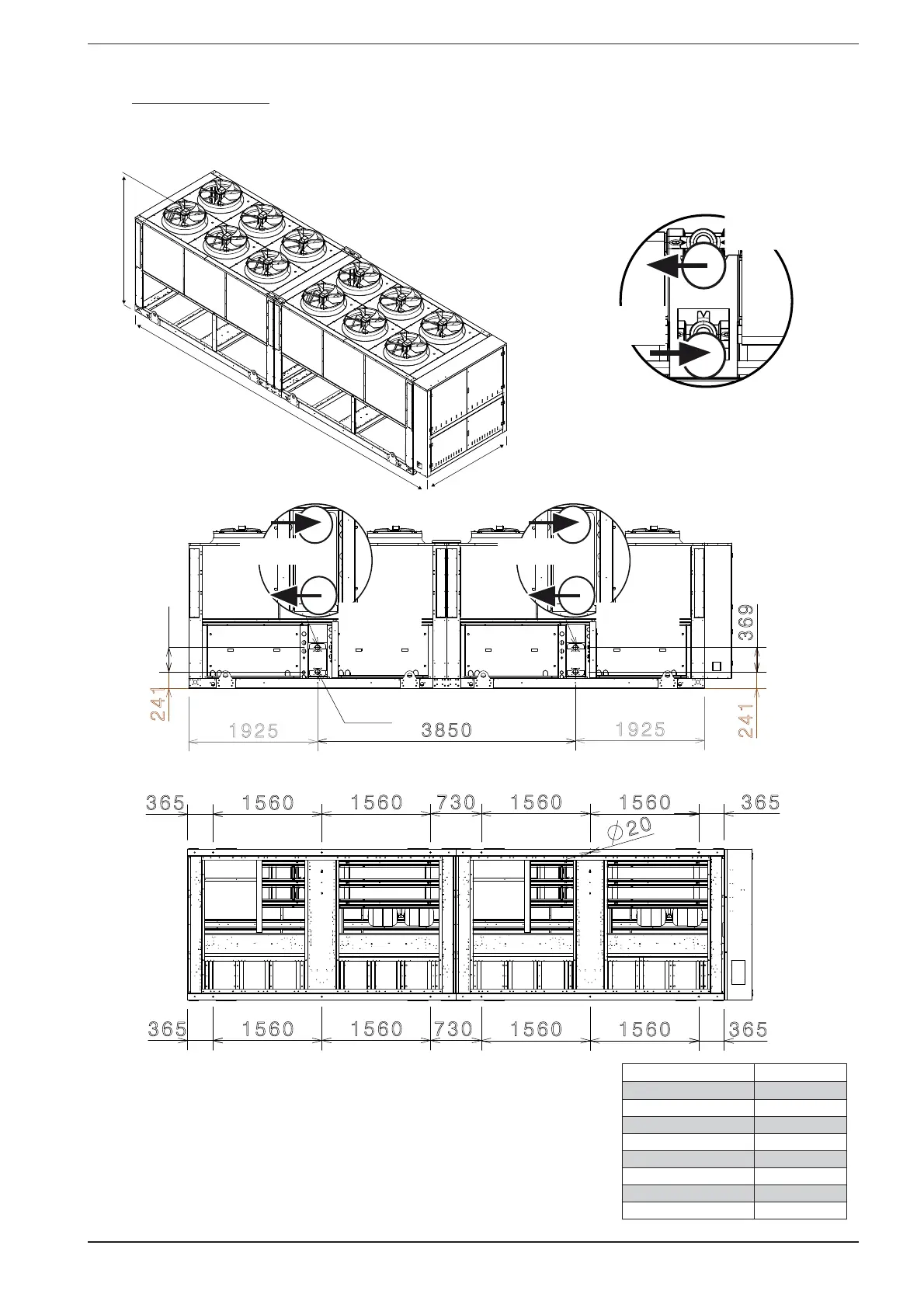

20.2. DIMENSIONAL TABLES
NRL 2800 - 3000 - 3300 - 3600 STANDARD
MODEL POSITION
2800 °-L 369
3000 °-L 369
3300 °-L 568
3600 °-L 568
2800 H - HL 568
3000 H - HL 568
3300 H - HL 568
3600 H - HL 568
*NOTE:
The opposite table shows the variation
of the position according to the
exchanger type
33
INRLPY. 02.10 4086916_01
