AERMEC NRL - Page 35

2450
8100
2200
OUT 4”
IN 4”
OUT 4”
IN 4”

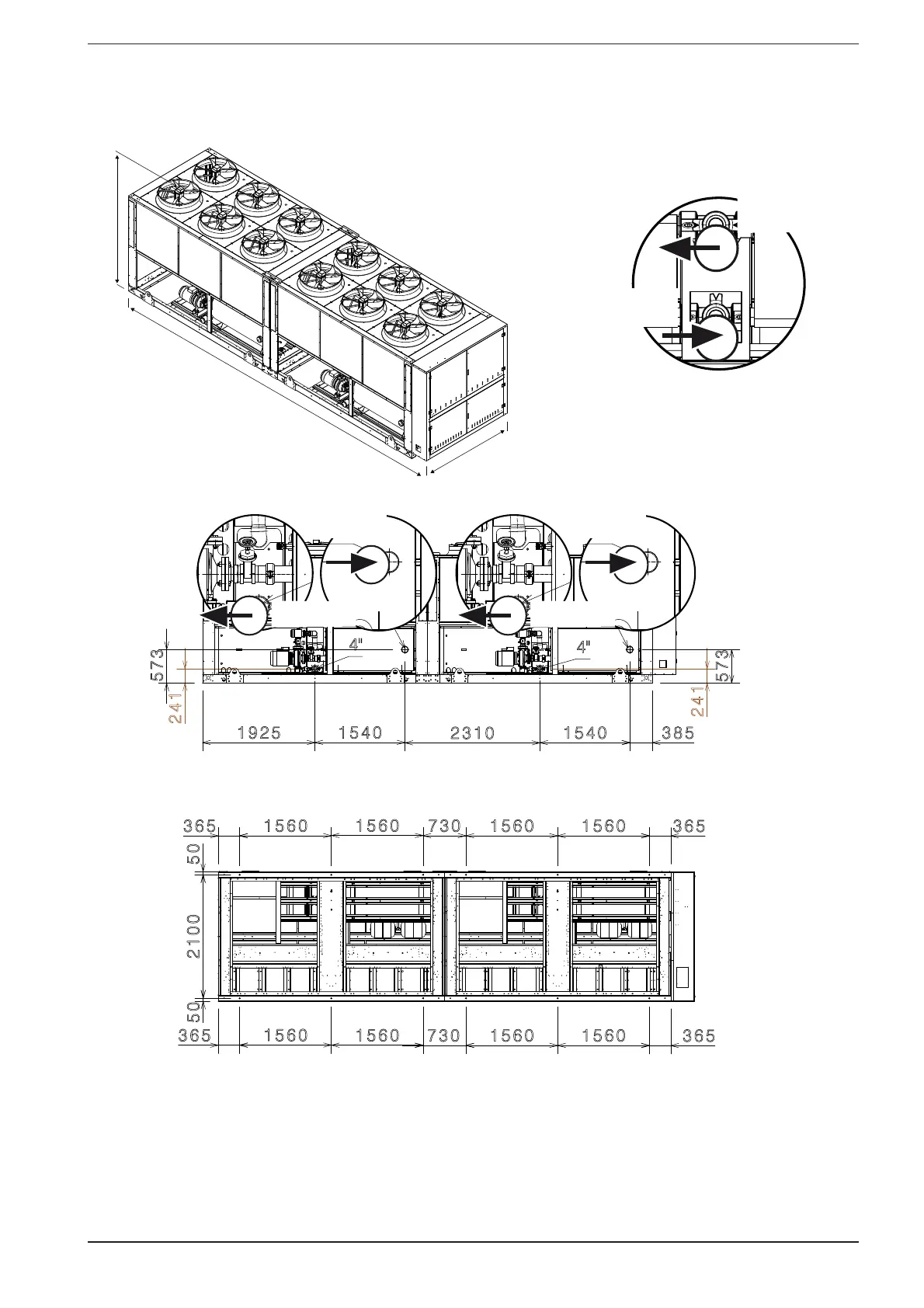

NRL 2800 - 3000 - 3300 - 3600 HYDRAULIC CONNECTIONS HYDRONIC UNIT
IN 2”
OUT 2”
Position AVX
EVAPORATOR water connections
DESUPERHEATER water connections
35
INRLPY. 02.10 4086916_01
