AERMEC NRP 0650 - Nrp 0500 0550 0600 0650

34 Aermec cod. 5806715_00 12.01
NRP 0200-0750
EN

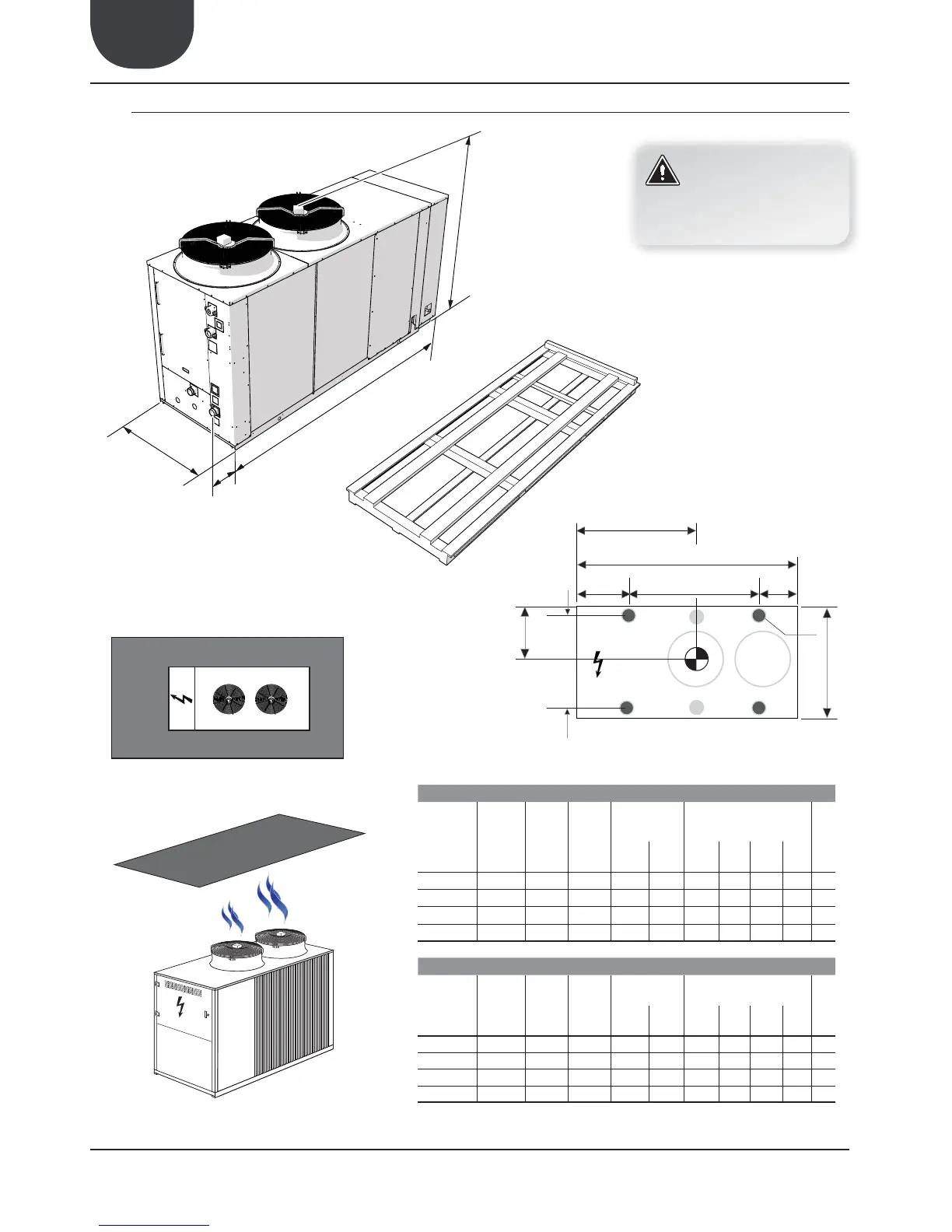

23.3. NRP 0500  0550  0600  0650
3280
50
1100
1875
WEIGHT OF UNITS WHEN EMPTY
HYDRONIC
KIT
BARYCENTRE
(mm)
WEIGHT DISTRIBUTION
ON SUPPORTS (%)
VT KIT
WEIGHT
UNIT
WEIGHT
PALLET
Gx Gy A B C D
NRP0500 00 1233 37
526 1521 28% 26% 24% 22% 13
NRP0550 00 1237
37 525 1518 28% 26% 24% 22% 13
NRP0600 00 1359
37 551 1490 27% 27% 23% 23% 13
NRP0650 00 1378 37
551 1485 27% 27% 23% 23% 13
WEIGHT OF UNITS WHEN RUNNING
HYDRONIC
KIT
BARYCENTRE
(mm)
WEIGHT DISTRIBUTION
ON SUPPORTS (%)
WEIGHT
UNIT
WEIGHT
PALLET
Gx Gy A B C D
NRP0500 00 1282
526 1537 28% 25% 24% 22% 13
NRP0550 00 1286
526 1534 28% 25% 24% 22% 13
NRP0600 00 1412
551 1505 27% 27% 23% 23% 13
NRP0650 00 1434
551 1499 27% 27% 23% 23% 13
ATTENTION
The unit is supplied fastened to
a pallet; use poles (not supplied)
for handling with forklift trucks
and belts.
800 mm
1100 mm
800 mm
800
mm
NRP 0500-0550-0600-0650
3.000 mm
Gy
Gx
3280
2550
530 200
16ø
2020
1100
A
C
B
D
