AERMEC RePuro Series - Control Panel Recessed Box Compatibility

27
4238010_00 - 0912
Wall
mounted
Wall
mounted
82,5mm
26mm
>10mm
Ø40mm
Type
503E
Type
503E
Type
502E
Type
502E
Type
M20
Type
M20

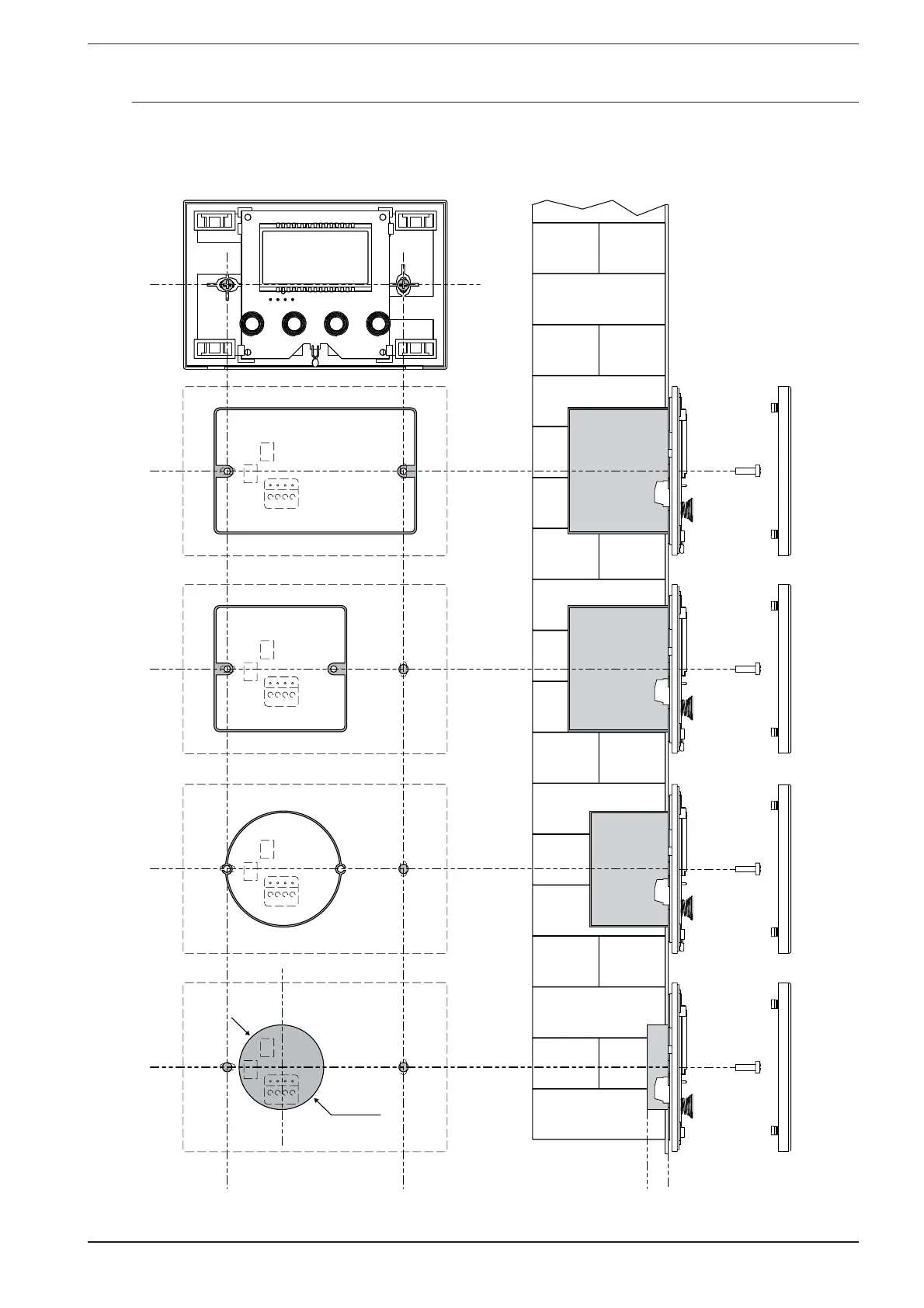

9.2. COMPATIBILITY BETWEEN CONTROL PANEL AND RECESSED WALL BOX
The wall mounted control panel can be mounted on a recessed wall box of various types; the following schematics detail the
compatibility between the recessed wall box and the control panel.
