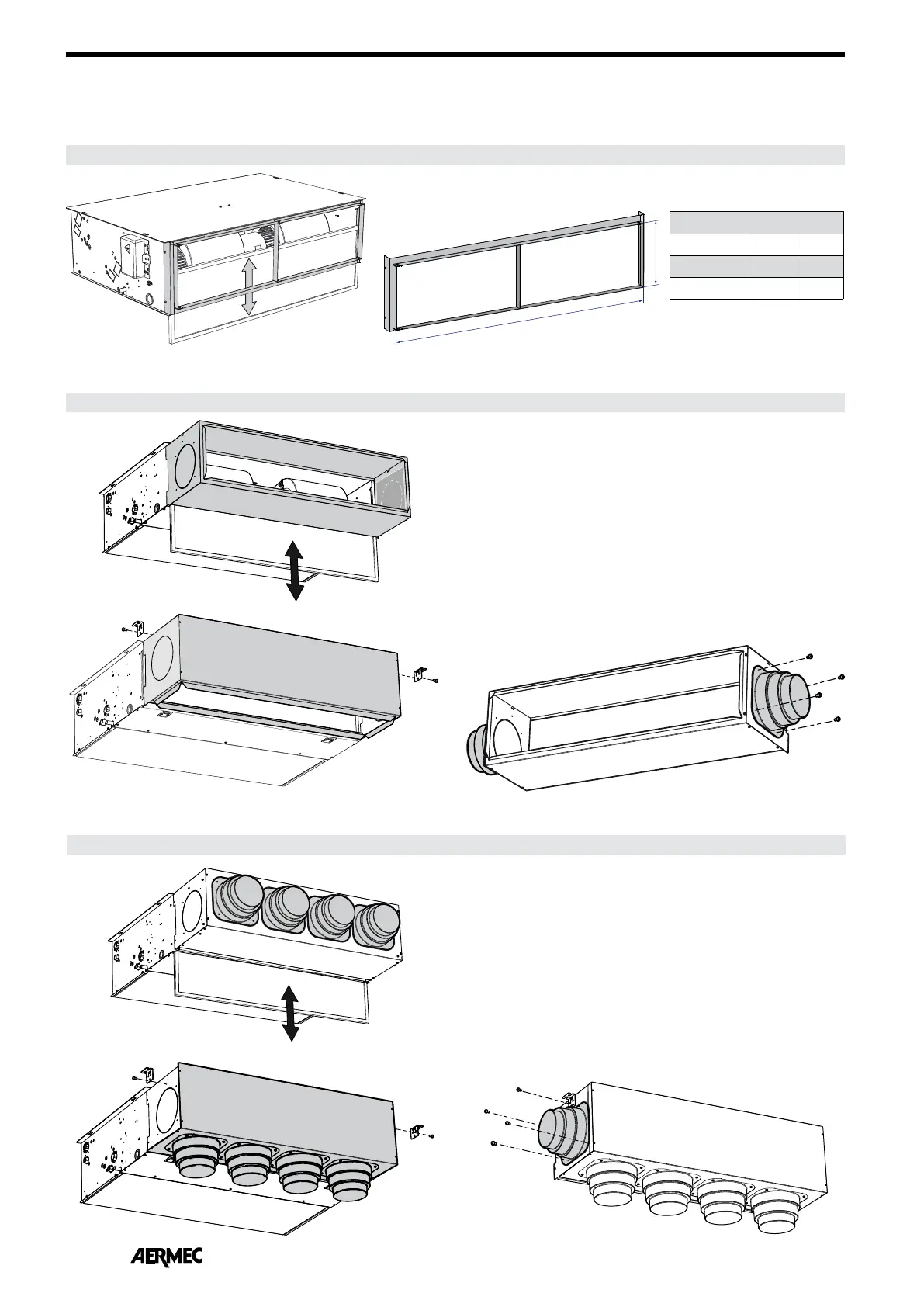

RDA_V STRAIGHT INTAKE COUPLING
Straight intake coupling with rectangular flange for ducting. In galvanised
steel. Air filter can also be housed.
DIMENSIONS [mm]
MOD. A B
RDA450V
1053 257
RDA670V
1453 308
A
B
ACCESSORIES
DUCTING ACCESSORIES:
RPA_V INTAKE PLENUM WITH RECTANGULAR FLANGE
RPA_V is an intake plenum with rectangular flange made of
galvanised steel . This accessory allows to connect a duct of
rectangular section to the inlet of the VED unit.
Due to the different system needs, the RPA_V accessory allows
the intake both longitudinally and perpendicularly to the air
flow passing through the VED unit.
A circular duct can be connected to the sides of the RPA_V
intake plenum by means of the accessory KFV.
KFV
KFV
RPA_V
PA_V INTAKE PLENUM WITH CIRCULAR FLANGE
PA_V is a galvanised steel intake plenum with a plastic
variable section circular flange. This accessory allows to
connect ducts of circular section to the inlet of the VED unit.
Due to the different system needs, the PA_V accessory allows
the intake both longitudinally and perpendicularly to the air
flow passing through the VED unit.
A circular duct can be connected to the sides of the PA_V
intake plenum by means of the accessory KFV.
KFV
PA_V
