46
IVEDLJ 1107 - 4880900_01
==
1133
1053
1104
440
737
141
130
25
300
256
15
248
287
403
362
313
45
109
241
198
275
Ø16
10
20
1158
1109

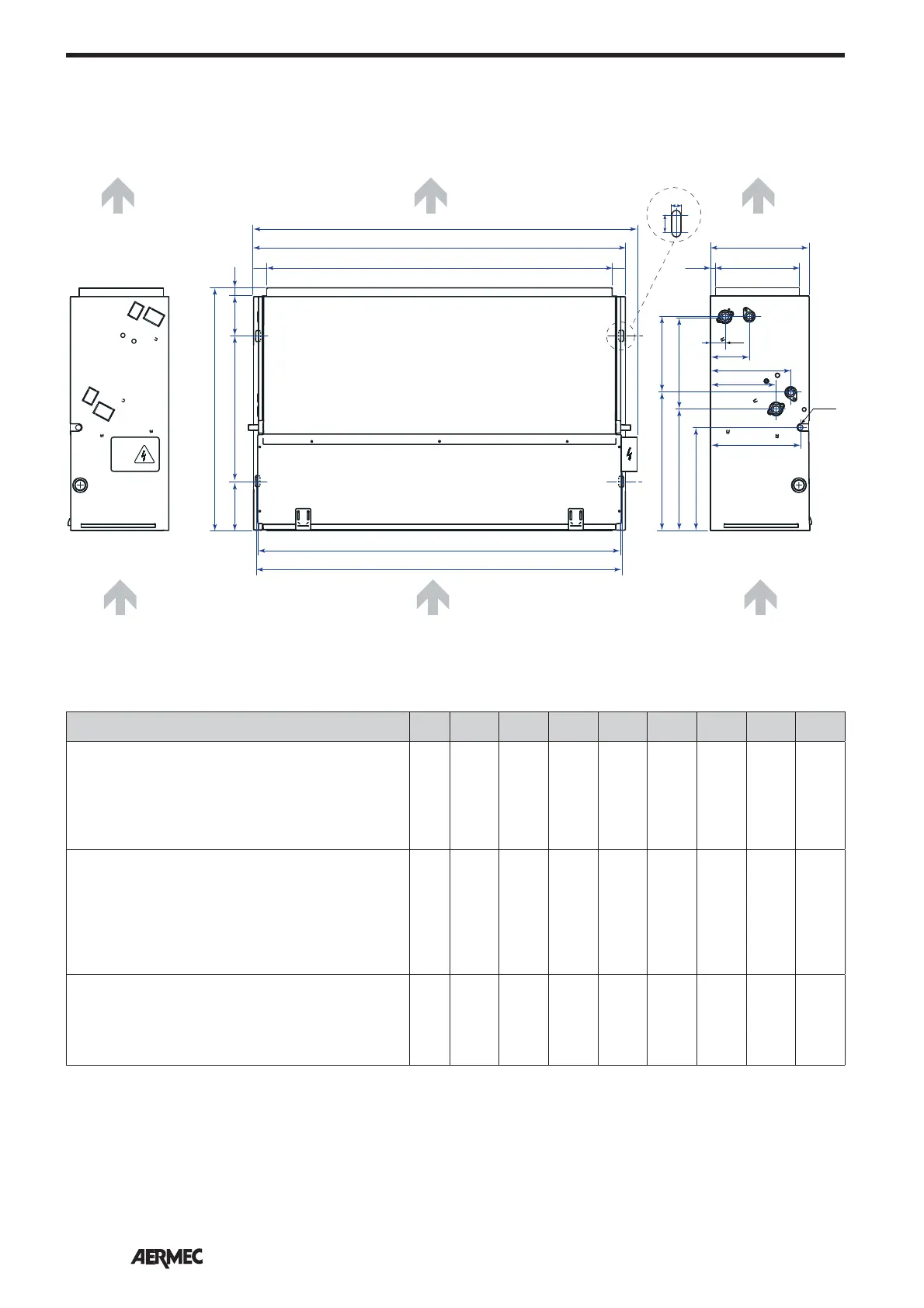

VED 430 - 440 - 530 -540 - 432 - 441 - 532 - 541
DIMENSIONI [mm]
VED 430 440 530 540 432 441 532 541
Attacchi idraulici batteria principale (femmina)
Main coil water connections (female)
Raccords hydrauliques de la batterie principale (femelle)
Wasseranschlüsse für Hauptwärmetauscher
(Innengewinde)
Conexiones hidráulicas batería principal (hembra)
Ø 3/4"G 3/4"G 3/4"G 3/4"G 3/4"G 3/4"G 3/4"G 3/4"G
Attacchi idraulici batteria per solo riscaldamento (femmina)
Heating only coil water connections (female)
Raccords hydrauliques de la batterie pour chauffage
seul (femelle)
Wasseranschlüsse für Wärmetauscher für reinen
Heizbetrieb (Innengewinde)
Conexiones hidráulicas batería sólo calor (hembra)
Ø - - - - 1/2"G 1/2"G 1/2"G 1/2"G
Attacchi scarico condensa (diametro esterno)
Condensate discharge connections (external diameter)
Raccords d'évacuation des condensats (diamètre extérieur)
Anschlüsse für Kondensatablass (Außendurchmesser)
Conexiones de descarga de condensación (diámetro exterior)
mm 16 16 16 16 16 16 16 16
