VMFE4 CONTROL PANEL FOR VMF SERIES THERMOSTATS, WALL-MOUNTED INSTALLATION
Flush electronic control panel for wall-mounted installation,
advanced interface for VMF series thermostats.
It must be coupled with VMF-E0 or VMF-E1 thermostats.
Digital display, "Touch" keyboard, often only 11mm can be
installed on wall on 503 Type recessed electric boxes and
compatible with 502 Type, M20 boxes (see installation manual).
Use:
• control panel for a single fan coil;
• a single control panel of a TTL network with up to 6 fan coils;
• control panel for controlling a TTL network (zone) with up to 6
fan coils inserted in a higher-level network;
The control panel enables you to select:
• fan speed, automatic or manual, with 20 positions displayed by
graduated bars;
• the room temperature;
• the operation mode.
In addition, the digital display shows:
• the set temperature;
• the room temperature;
• any alarms.
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E4
VMFE4
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E4
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E4
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E4
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E4
VMF-E0
VMF-E1
VMF-SIT
VED
VMF-E5
MASTER 3
MASTER 1
MASTER 2
MASTER 64
ATTENTION!: Not all the functions of the accessory can be
applied to the unit. Check the compatibility of the functions
with the configuration of the unit and of the other accessories
applied. For complete information relating to the functions
please refer to the technical manual of the unit and accessories.
ACCESSORIES

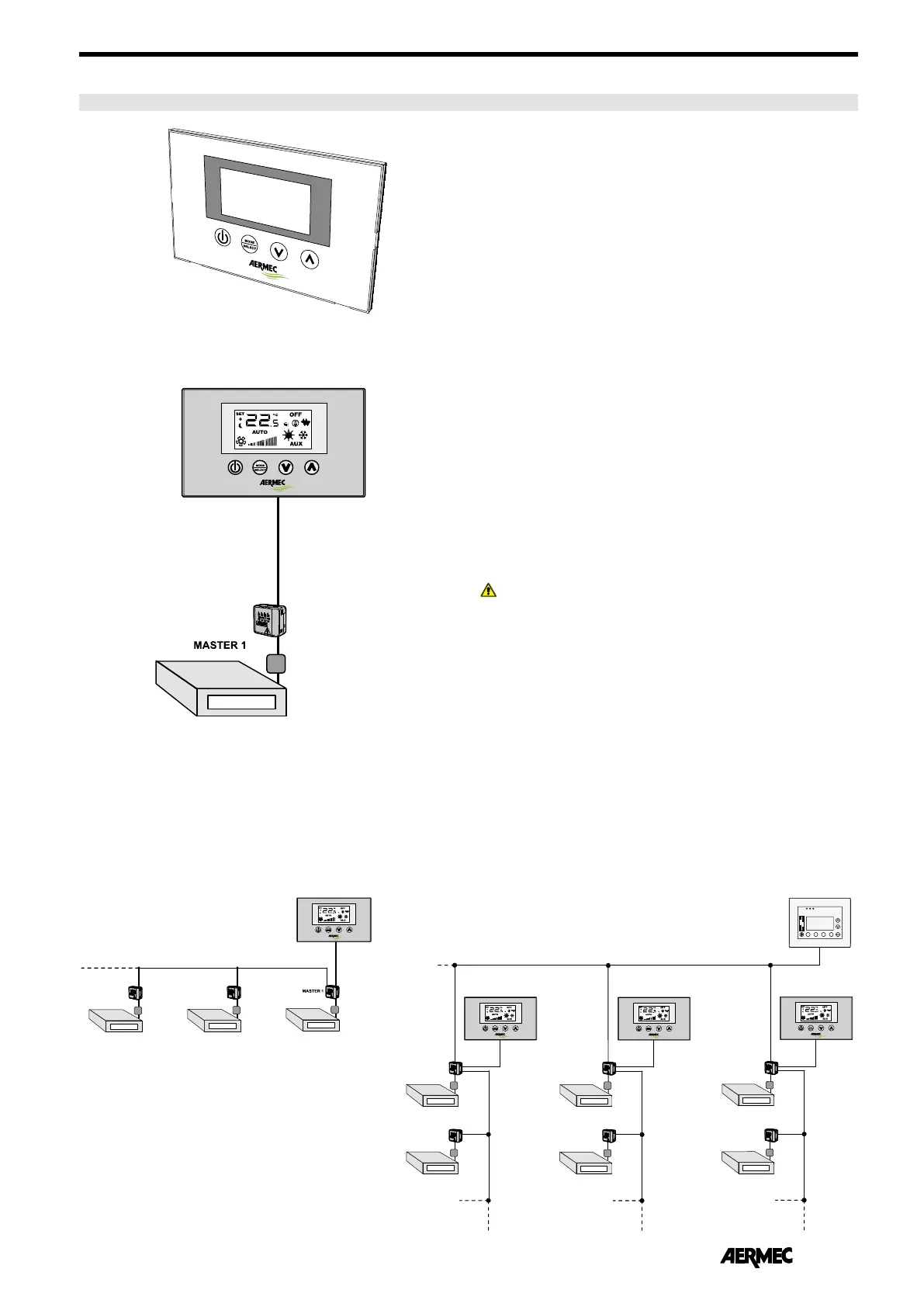

Connection of control panel for single unit
Control of a TTL network with fan coils
(up to 6)
Zone control (up to 6 fan coils) inserted in a network
with up to 64 zones (up to 384 fan coils)
