2-5-4. MEASURING SWR (cont)

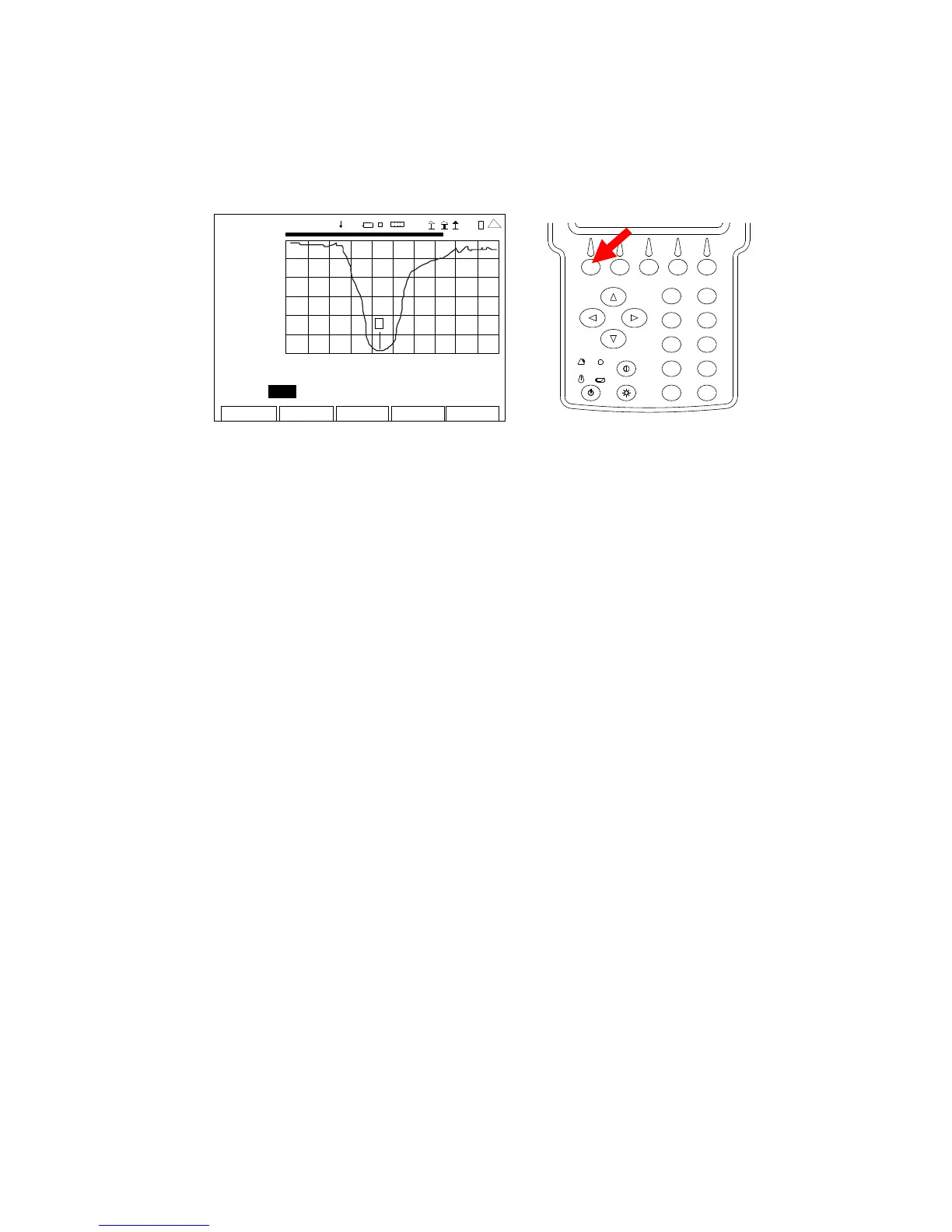

12. With the cursor on the Right Field, press the F1 “Enter” Key to move the Marker to the right
on the Graphical Display.
ANT-CABLE TEST
7.00
2009-01-06
11:35:30
SWR
1.00
35.0 MHz 45.0
Ma r ke r : 1 O f f Del ta: 1 Po s: 0 .00 De lt a 0 .00
Move Left Right V SW R 0. 00 Del ta 0 .00
Edit Return Ho l d Cal Scale
1
4 1 20 29
2
4
6
8
0
1
9
7
5
3
NOTE: When first enabled, a Marker is at the far left of the Graphical Display. Up to
three Markers may be placed on the Graphical Display at a time. The Marker
shown in the Marker Number Field is active. The active Marker can be moved
using the Move/Min/Max and Left Right Fields with the readings, corresponding to
the Marker position, displayed in fields under the Graphical Display.
