2-108 Subject to Export Control, see Cover Page for details.
2-5-6. MEASURING REVERSE POWER

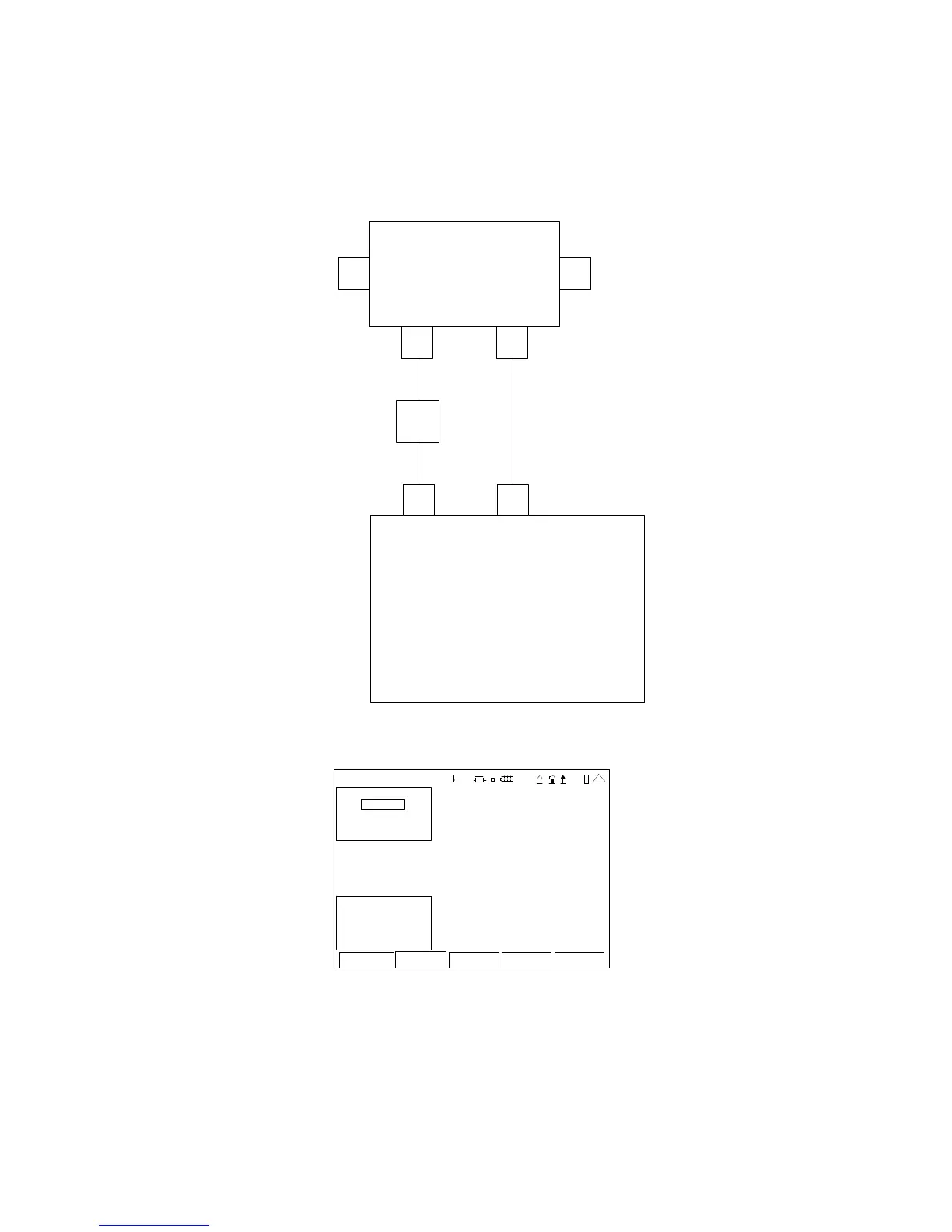

1. Connect the Directional Coupler in line between the Transmitter and Antenna and to the
3500 / 3500A.
DIRECTIONAL
COUPLER
J4 J3
J2 J1
REVERSE FORWARD
ANTENNA
TEST SET
ANT CONNECTOR T/R CONNECTOR
10 dB
PAD
TRANSMITTER
2. The Transmitter Test Screen should be displayed.
Edit Re tur n Hol
d
Se t up
TRANSMITTER TEST
Rec ei ver M ore
MH
z: 40 .00000 0
Port: T/ R
Mod: FM 10k
AFBW: None
Vo lu me: 100
Squelch: -50 dBm
Speake r: Au di o In
A u d O ut : Au d i o In
Save Recall
41 20 29
