11.5- Flange for air delivery duct (FLMA)
You can connect up to 3 throws ducted through D.160 collars. The available prevalence is a function of the
number of collars connected and the air flow rate. Collars positions are represented in the figure below.

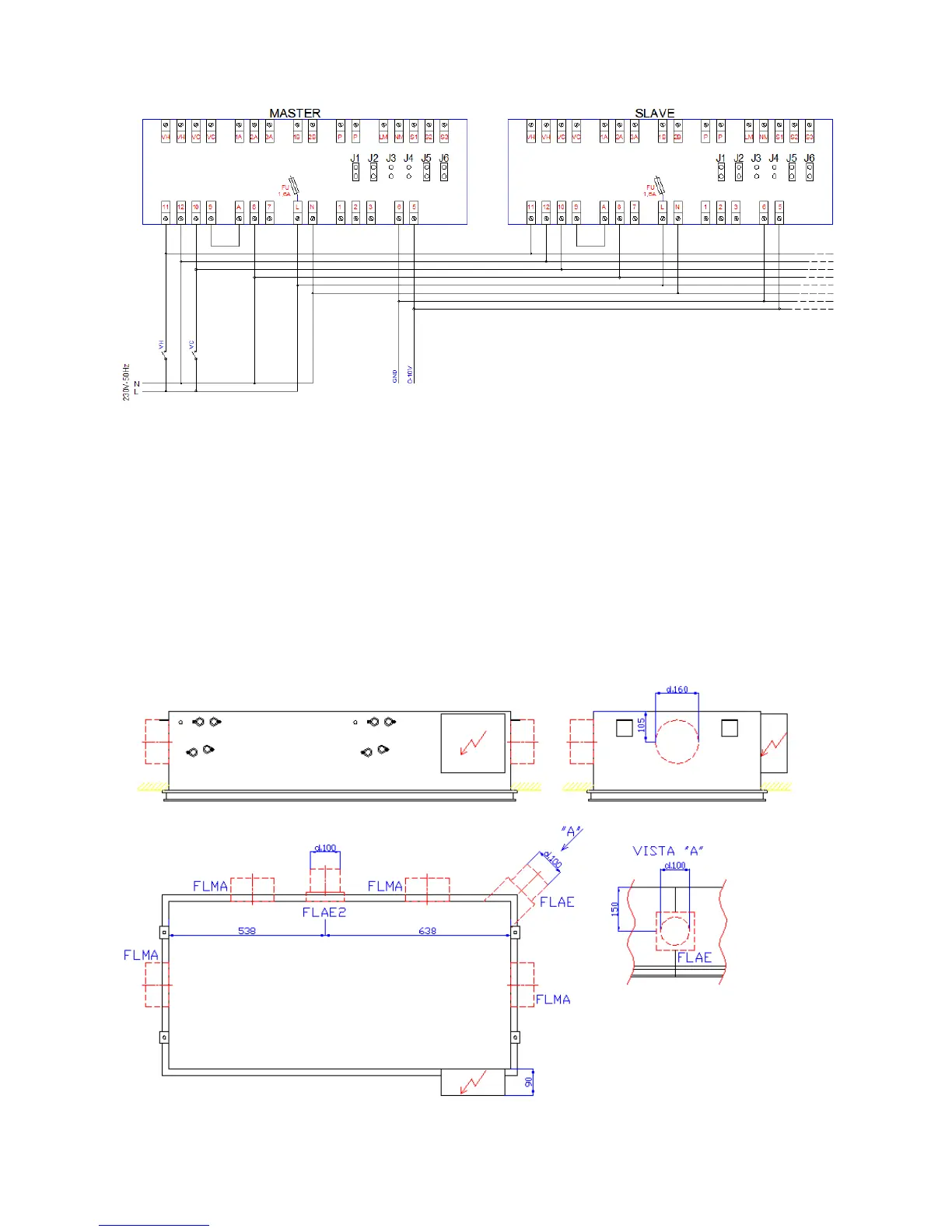

11.6- Flange for external air intake (FLAE-FLAE2)
It is possible to connect an external air intake via a D.100 collar. The maximum flow of outside air is
100MC/h. The outside air has to be treated, filtered and must not be at a low temperature.
The flange for fresh air intake has FLAE code or FLAE2 code. These have different installation points on the
unit, as in the drawing below.
