AERTESI srl SOFFIO INSTALLATION USE AND MANTEINANCE MANUAL
Page 11 AER.MIU.GB.SOFFIO.000.02.15

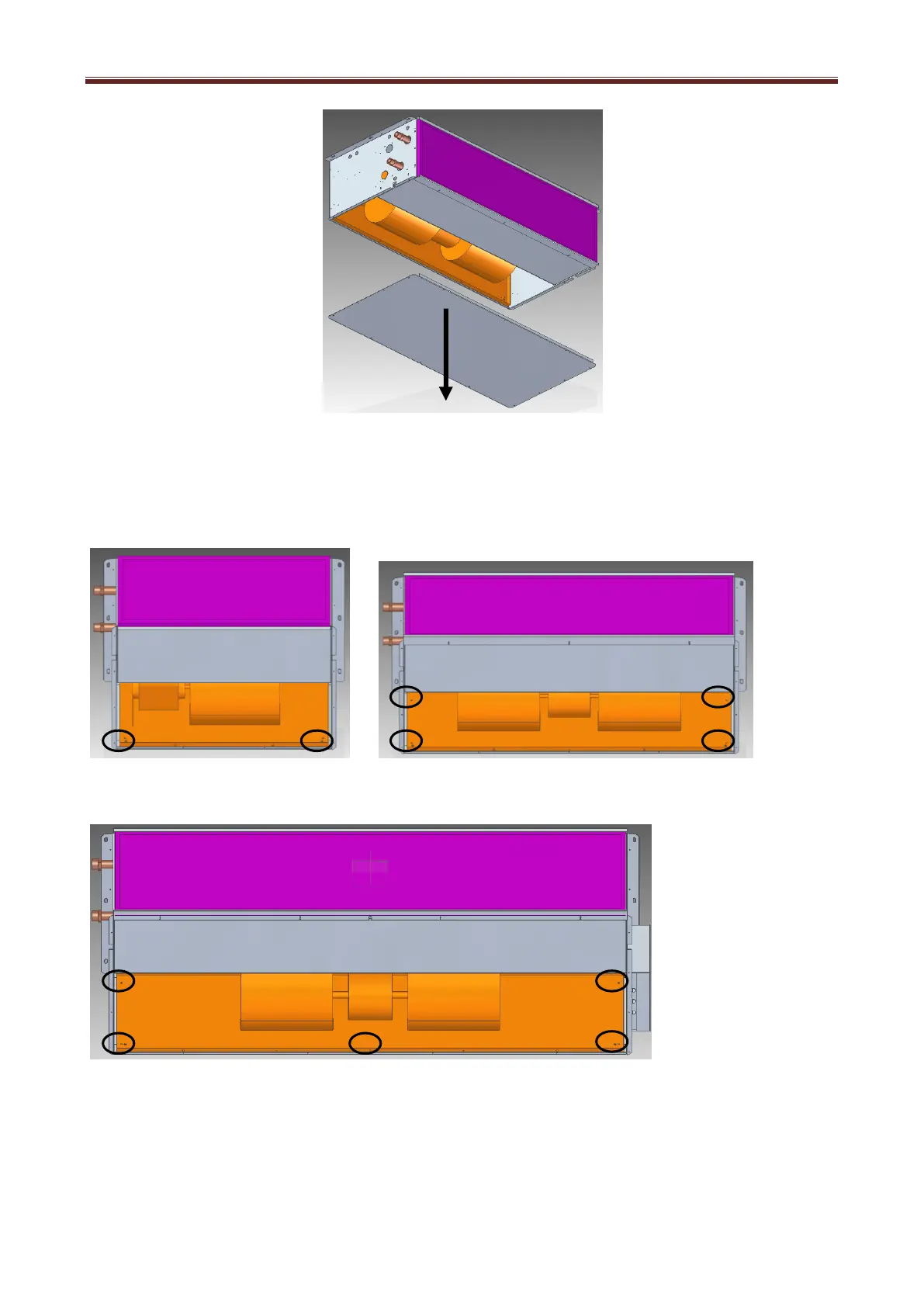

Remove the bottom panel
Then unscrew the M6 screws that secure the motor plate to the machine frame (2 screws for size 21, 4
screws for size 31/38, 5 screws for size 41/81).
Fixing screw size 21 Fixing screw size 31/38
Fixing screw size 41/81
Then the whole plate containing motor and fan can be removed.
