AERTESI srl SOFFIO INSTALLATION USE AND MANTEINANCE MANUAL
Page 10 AER.MIU.GB.SOFFIO.000.02.15

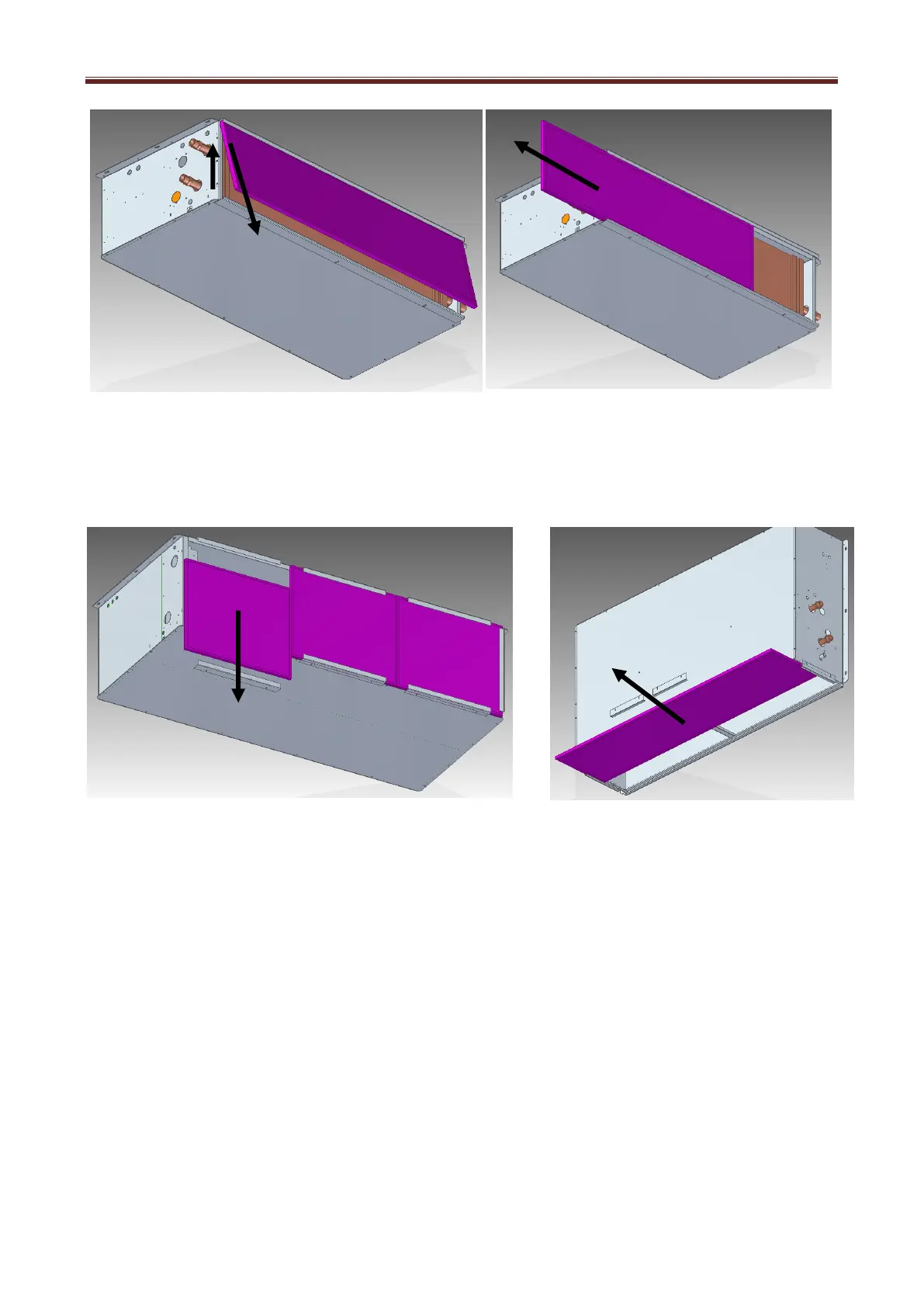

Removal from the bottom / side of the filter machines with engines average prevalence
For high prevalence sizes (HP) is only possible the extraction of the filter from below. For vertical sizes is
only possible extraction from the front. In these cases, you must remove the brackets that block the filter.
Removing the filter with engines with a high prevalence HP or vertical
8.2- Fan (motor standard)
To remove the fan, you must first remove the bottom panel (or front for vertical), unscrewing all the screws.
Disconnect the cable or cables of the fan from the terminals of the control cabinet
