AERTESI srl SOFFIO INSTALLATION USE AND MANTEINANCE MANUAL
Page 12 AER.MIU.GB.SOFFIO.000.02.15

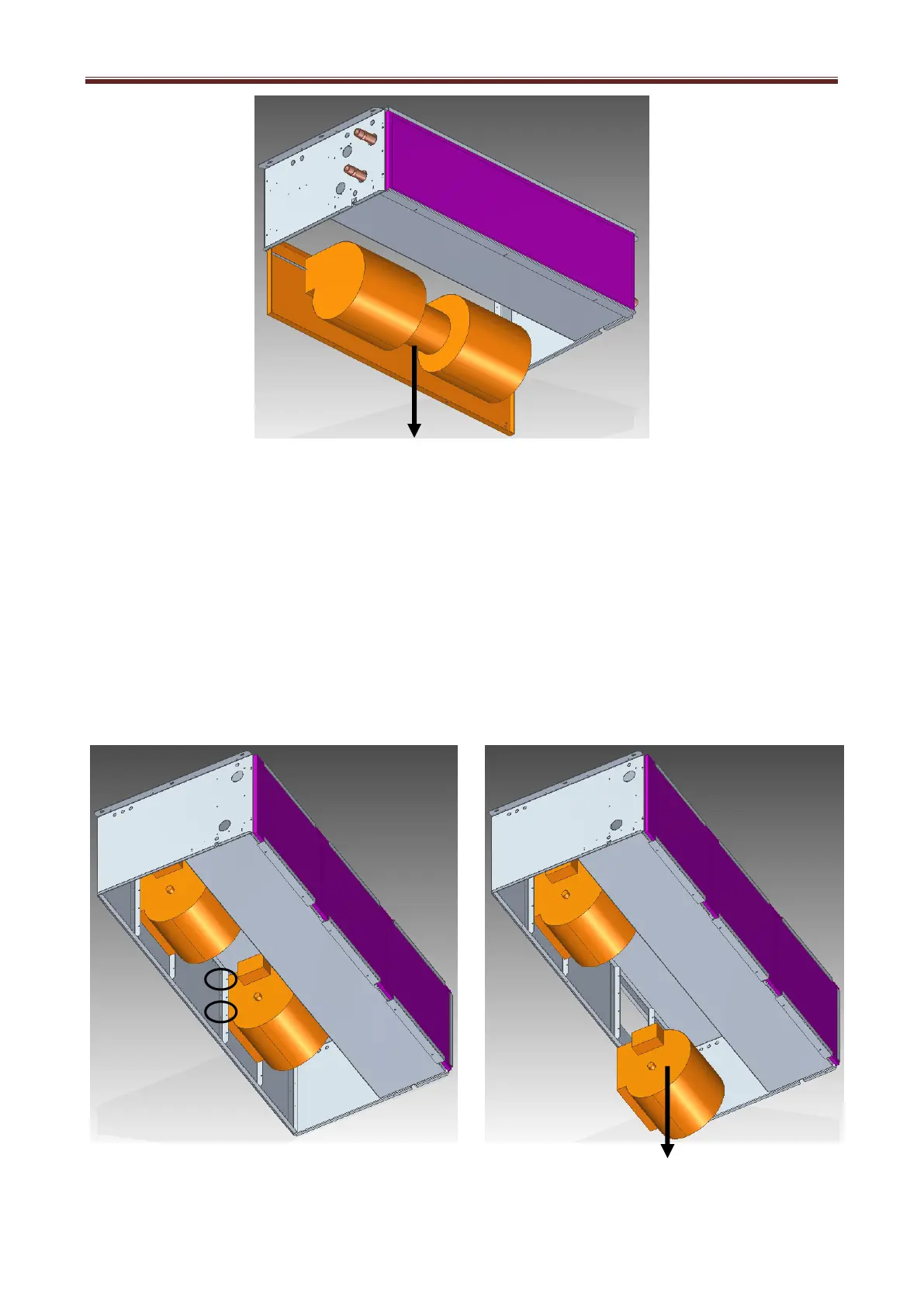

Removing the motor plate
After replacing the fan, install all the components performing the same operations in reverse order.
8.3- Fan (HP motor high pressure)
In versions “High Prevalence” , after removing the bottom panel and disconnect the motor cables as
described in the previous paragraph, you must remove individual fans, not the whole plate. Each fan is fixed
with four self-tapping screws (2 for each side), to remove it, unscrew these screws.
Removing the motor for high prevalence machines HP
