AERTESI srl SOFFIO INSTALLATION USE AND MANTEINANCE MANUAL
Page 6 AER.MIU.GB.SOFFIO.000.02.15

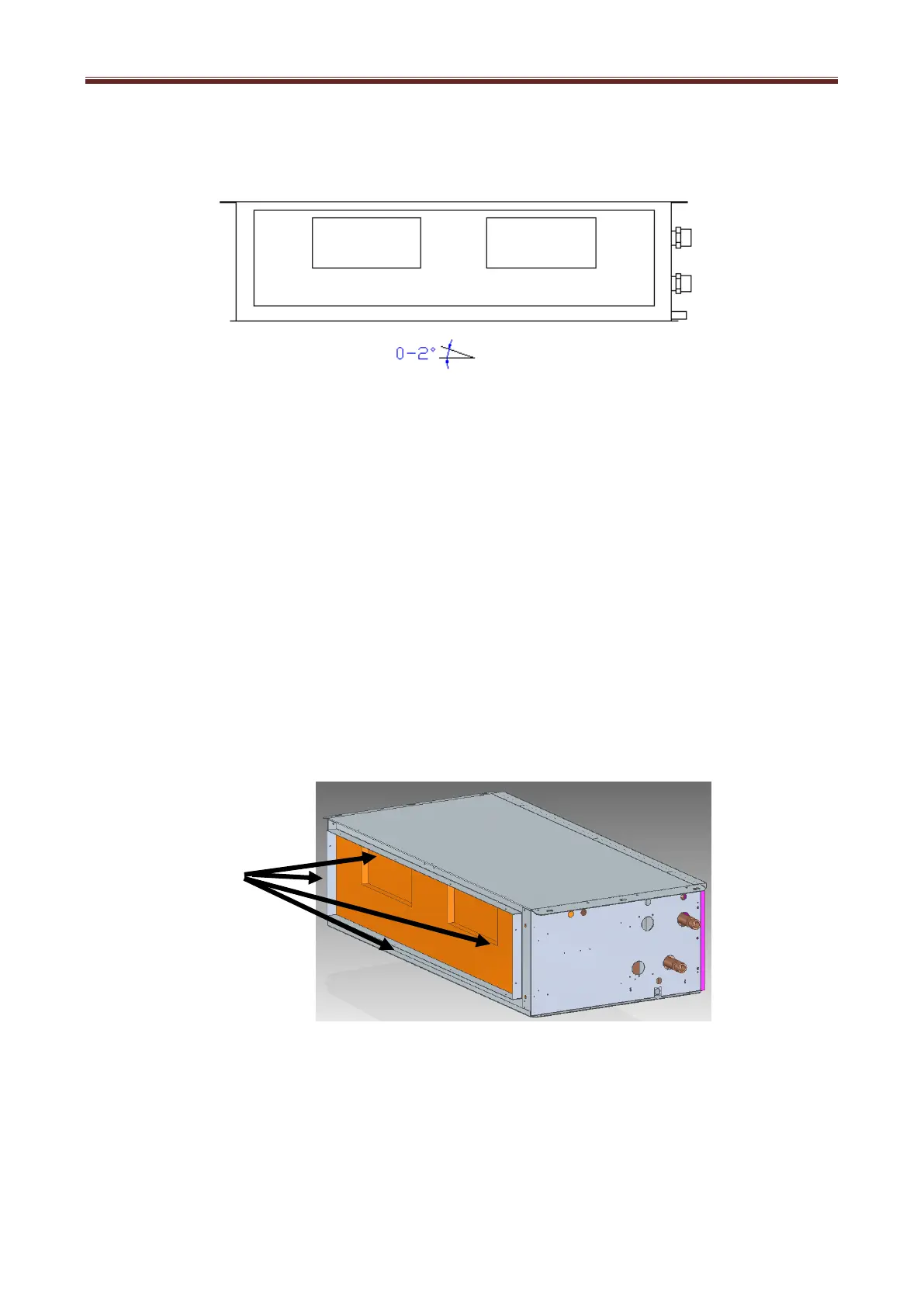

Check that the machine is perfectly horizontal or sloping slightly towards the condensate drain (never
counter slope). If necessary adjust the height by means of the nut and locking nuts that hold the threaded
rod to the bracket.
Unit positioning
Depending on type of ceiling and installation location, you can use other procedures, provided they comply
with the current standards and with attention for the safety of people
.5-AERAULIC CONNECTIONS
Connect the channels using the appropriate outlet flange. It is advisable to interpose a flexible connection
between the car and channels to not transmit the vibrations. Channels must be appropriately sized
(according to the prevalence of the machine) and insulated to prevent condensation and deaden the noise
propagation.
To connect the suction channels, you need a special accessory, the flange shooting (FRA). If you connect
the channels in another way, it is likely to compromise the accessibility of the filter or damage the machine.
OUTLET FLANGE
Outlet Flange
