4. Wiring
You may now connect power to the unit. The unit can accept 12-24v ac or dc. Please do
NOT USE MAINS power, as this will damage the unit and void the warranty.

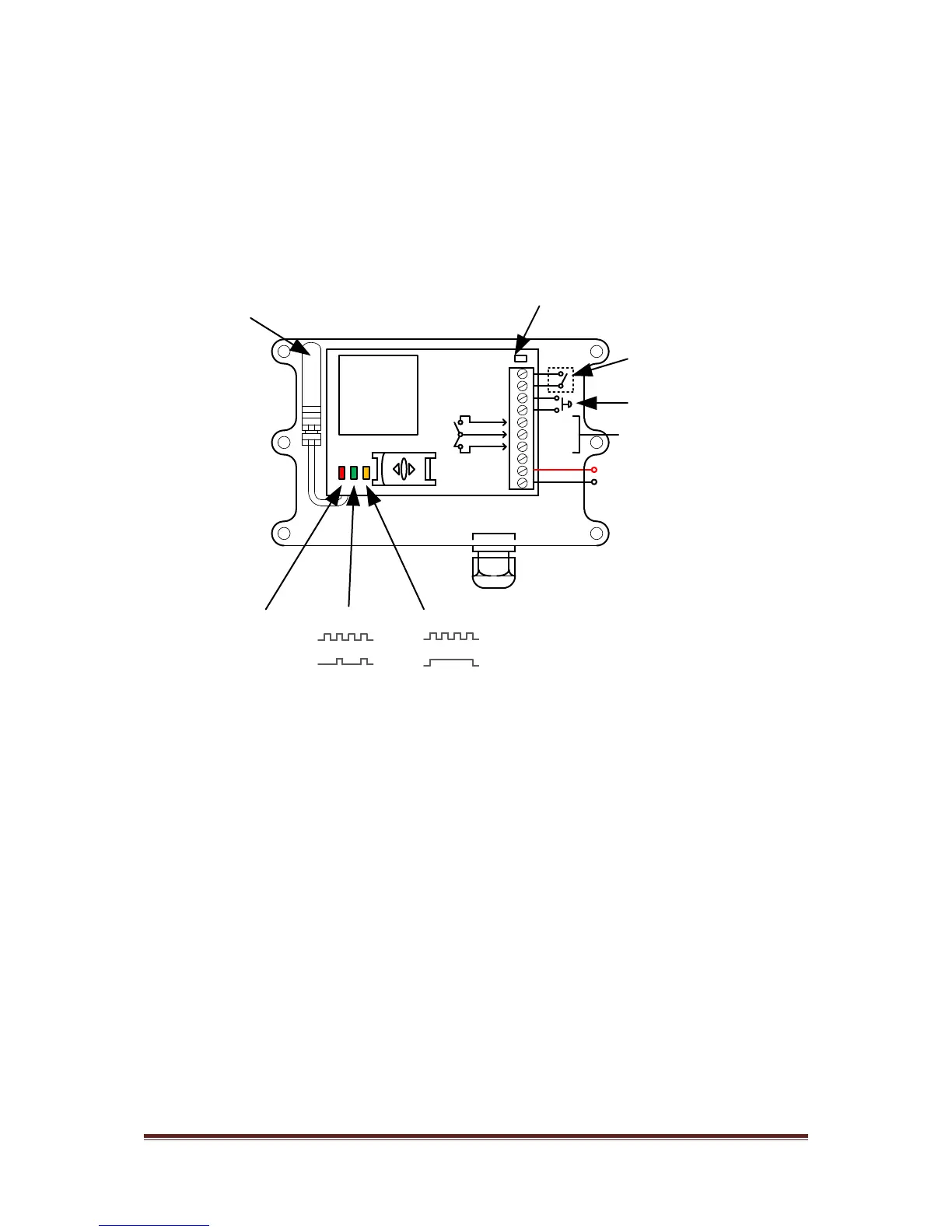

The connections supported by the unit are shown below.
AC
AC
VCC
N/C
COM
N/O
GND
PB
GND
DETECT
GSM
modem
Volt free
relay output
Optional input limit
switch from gate/door
Optional exit button
open
close
12-24
ac-dc
Searching
Network found
Standby
Busy
Power LED
GSM LED
CPU LED
Hard restore default
button
Antenna
Tip: Power cable should be less than 3 meters (10 feet). Do not use thin cables such as
alarm cable or CAT5 cable to power this unit. The standby current is 45mA, however this
increases to 200mA when dialling out, with spikes of current draw up to 2 amps.
Power up the unit. After 10 seconds or so, the GSM LED should change from a fast flashing
frequency to a slow flash, every 3 seconds or so. If this does not happen, power the unit off,
and check the SIM card is seated correctly and ensure the steps above regarding the SIM
card have been followed.
