AIB-SO21/AIB-SO31/AIB-SN31/AIB-SN41 User Manual 13

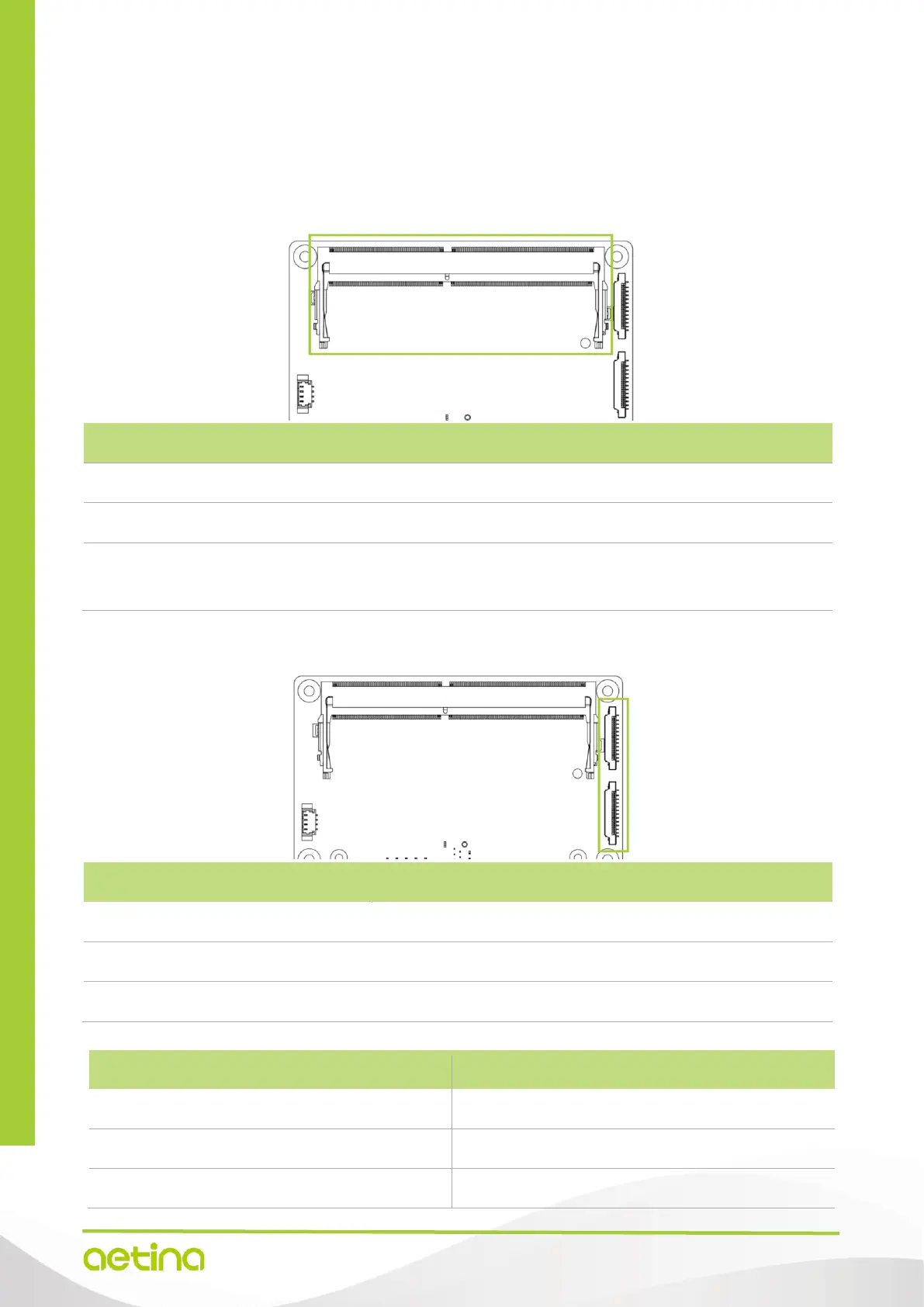

2.4 Connectors and Pinout
Here are the connectors and pinout information of AIB-SO21/31 & AIB-SN31/41 carrier board below.
◼ Jetson Orin Nano/NX Module Connector
Item
Description
Location
J1
Type
DDR4 SODIMM 260-Pin
Pinout
Please refer to NVIDIA Jetson Orin Nano/NX System-on-
Module datasheet
◼ MIPI CSI-2 22-Pin Connectors
Item
Description
Location
CN10/CN11
Type
4-Lane MIPI CSI-2 22-pin connector
Notes
support FFC/FPC cable
Pin #
Definition
Pin #
Definition
1
VDD_3V3
2
CAMA_I2C_SDA
3
CAMA_I2C_SCL
4
GND
5
CAM_CK0
6
CAM_PD0
