AIB-SO21/AIB-SO31/AIB-SN31/AIB-SN41 User Manual 18

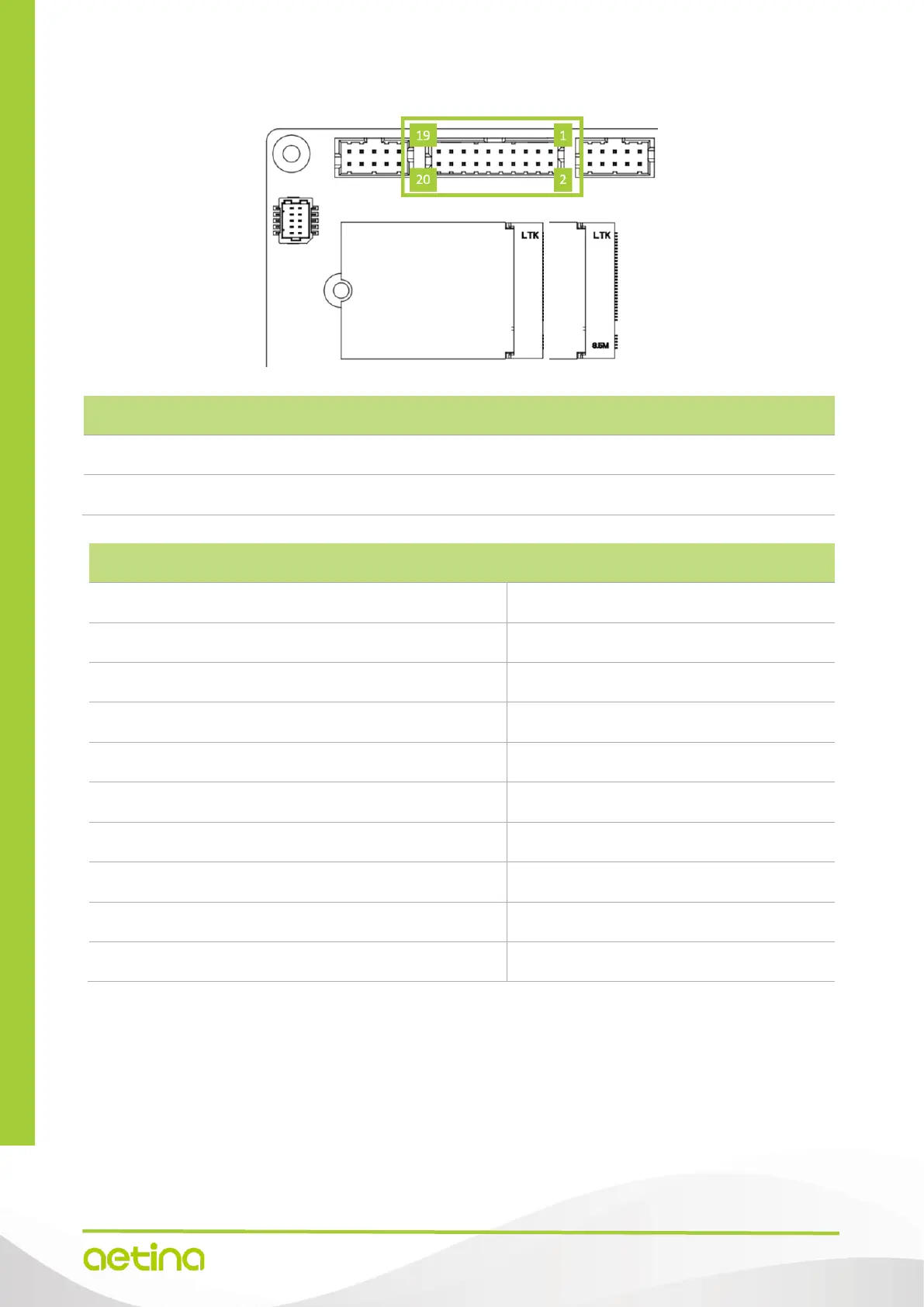

◼ MISC I/O Connector (RS232/GPIO/I2C/UART)
Pin #
Definition
Notes
Pin #
Definition
1
VDD_3V3
2
VDD_5V
3
GPIO_1 (GPIO01 / PQ.05 453)
IN/OUT
4
UART_TXD
5
GPIO_2 (GPIO11 / PQ.06 454)
IN/OUT
6
UART_RXD
7
GPIO_3 (GPIO12 / PN.01 433)
IN/OUT
8
UART_CTS
9
GPIO_4 (GPIO13 / PH.00 391)
IN/OUT
10
UART_HDR
11
GPIO_5 (GPIO05 / PZ.07 485)
IN/OUT
12
RS232_RXD
13
I2C_CLK
14
RS232_RTS
15
I2C_DAT
16
RS232_TXD
17
GND
18
RS232_CTS
19
GND
20
GND
Item
Description
Location
CN2
Type
2*10P P:2.0mm H:7mm Pin header
