AIB-SO21/AIB-SO31/AIB-SN31/AIB-SN41 User Manual 22
Pin #
Definition
Pin #
Definition
1
GND
2
VDD_5V
3
TACH
4
PWM

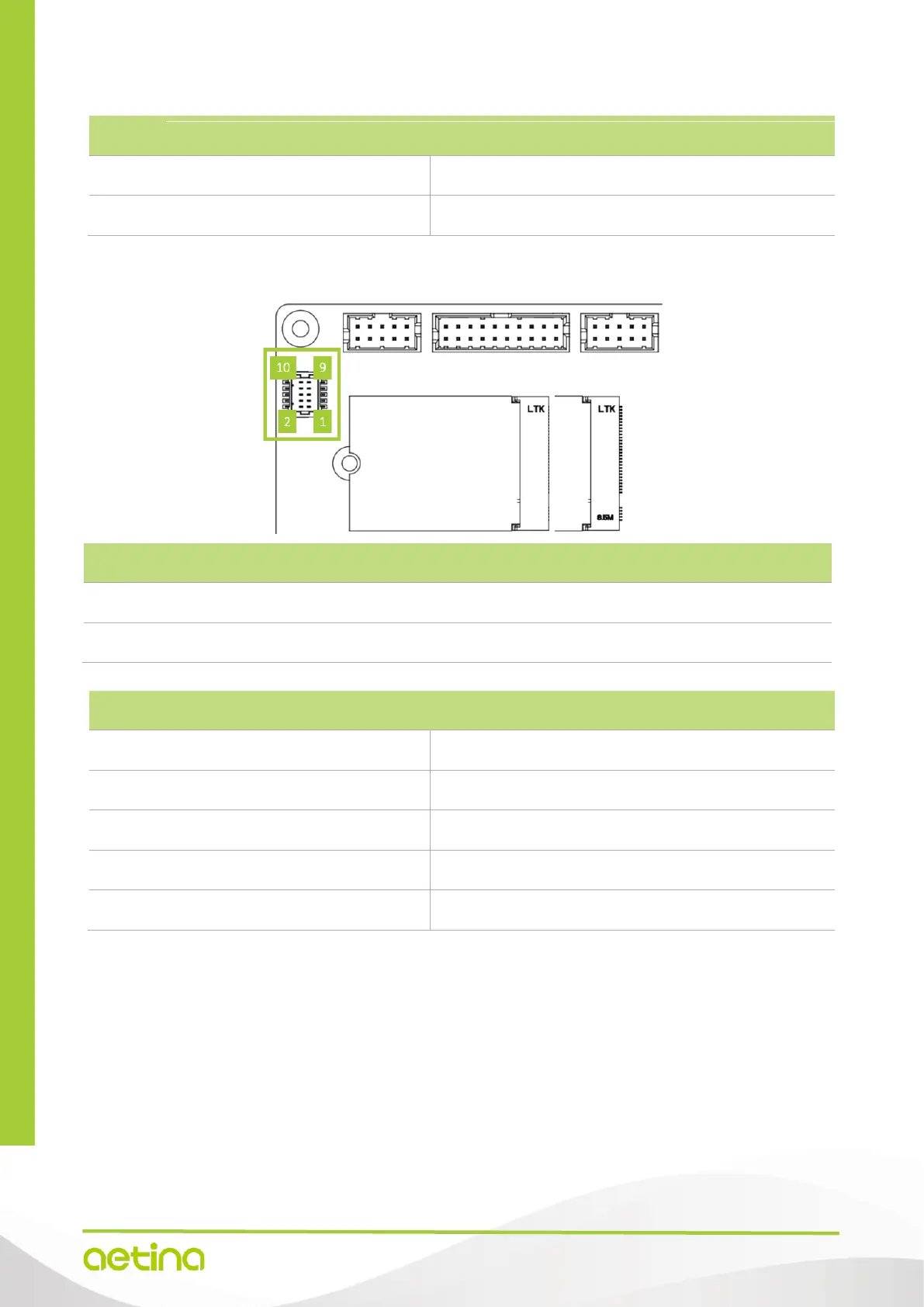

◼ Audio Board-to-Board Connector
Pin #
Definition
Pin #
Definition
1
I2S_SCLK
2
VDD_3V3
3
I2S_OUT
4
I2C_DAT
5
I2S_IN
6
I2C_CLK
7
I2S_FS
8
GND
9
I2S_MCLK
10
GND
Note: The voltage level of I2C & I2S is 1.8V
Item
Description
Location
J5
Type
2*5P P:1.0mm Wafer connector
