RE-50-RE-75-OI-vers. 2.6 gb 28.07.14 9
Due to the decentral controller the operator of the RE rotary
module needs not to be near the product so that third persons
might be endangered by the rotation mode.
Always switch off the controller and protect it from being
switched on again unintentionally when you work on the RE
rotary module. The signals of the control system can cause un-
intentional movements of the module which may lead to per-
sonal injuries.
The RE-50 / RE-75 rotary modules can be installed in a vertical and horizontal posi-
tion.
The RE-50 / RE-75 rotary modules are fastened at the rear of the housing. The RE-
50 is fitted in the 30 x 30mm hole matrix with 4 M4 bolts (bolt circle 58 mm, through-
hole 4 x 3.4 mm) while the RE-75 module is fitted in the 48 x 48 mm hole matrix with
4 M5 bolts (bolt circle 88 mm, through-hole 4 x 5.5 mm).
The corresponding connection plates must be used for mounting the Afag modules.

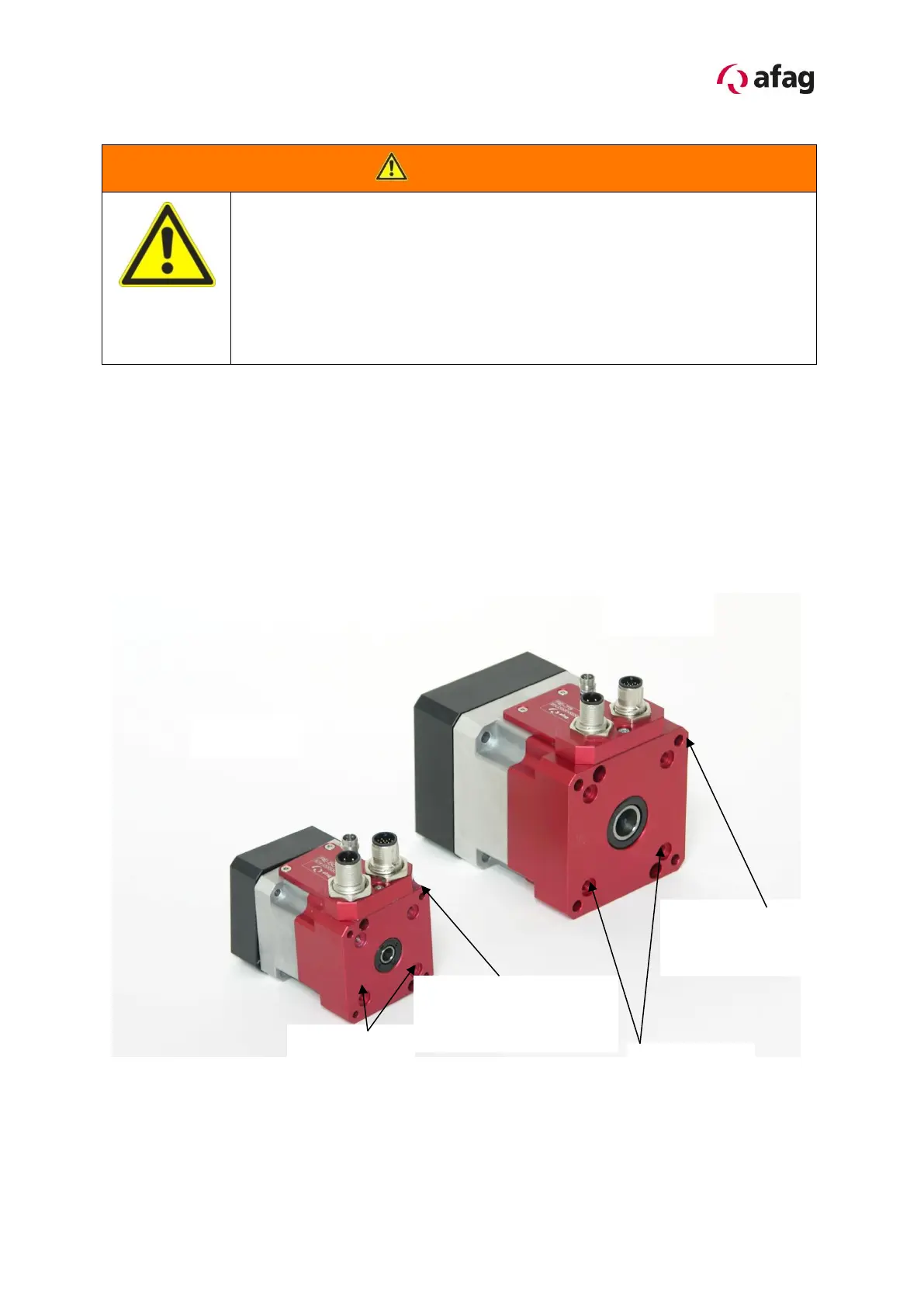

Figure 2: Installation and mounting options
Use the centering bushings included in the scope of supply for positioning and insert
these sleeves in the diagonally opposite bore holes of the mounting grid.
Circular hole 58 mm
4x Ø 3,4 mm
Circular hole
88 mm
4x Ø 5,5 mm
