HARDWARE BAG 9 CONTENTS:

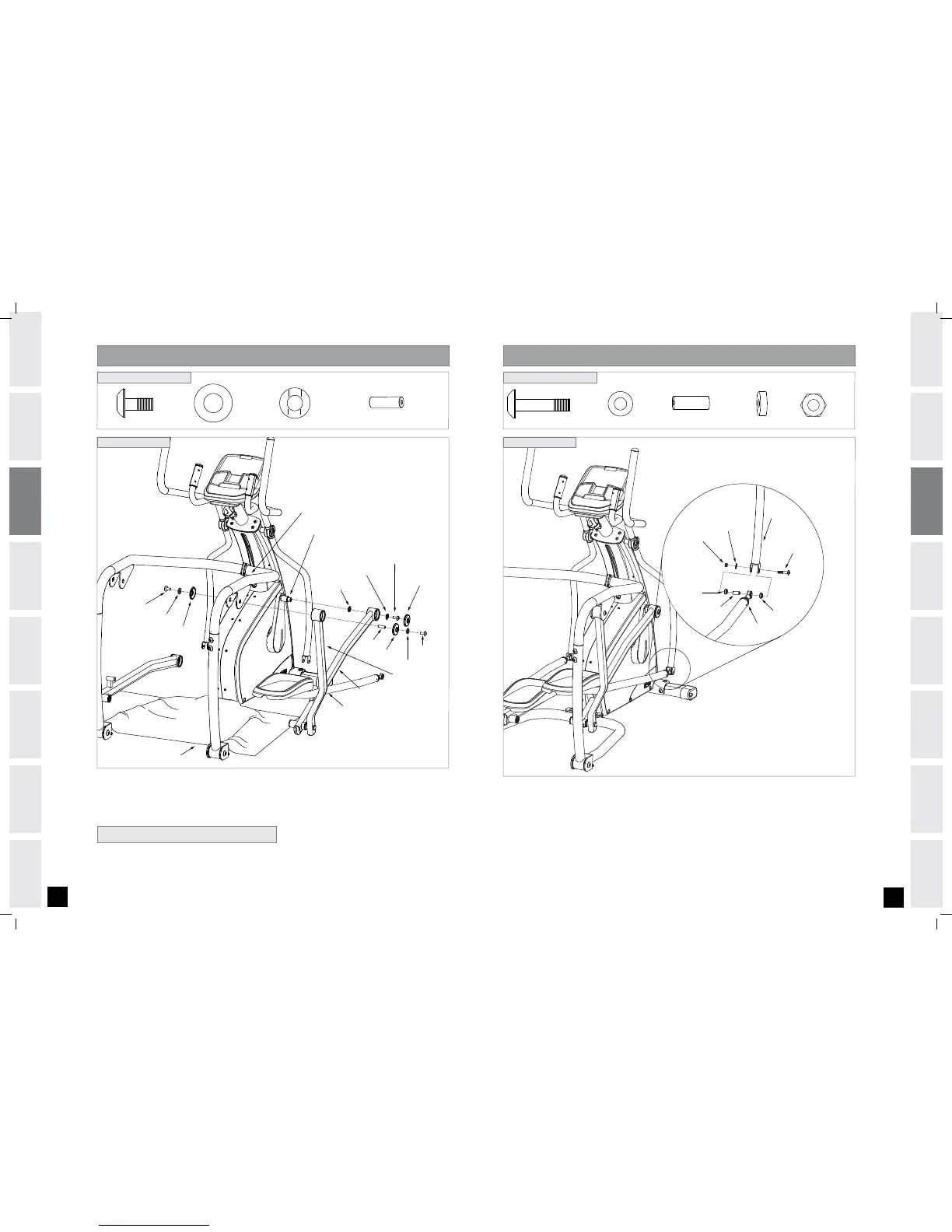

ASSEMBLY STEP 9:
Open HARDWARE BAG 9.
Slide 1 ROD BEARING SHAFT into the joint end of right LINK ARM.
Fit 1 SPACER on each side of each ROD BEARING SHAFT after the ROD BEARING SHAFTS are in LINK ARM.
Attach right LINK ARM to the right LOWER HANDLEBAR using 1 BOLT (N), 1 WASHER (L) and 1 NUT (G).
Repeat on opposite side.
A
B
C
D
E
ASSEM B LY S T E P 9
HARDWARE BAG 8 CONTENTS:
ASSEMBLY STEP 8:
Lay waste packaging plastic over the BASE RAIL. This will prevent the PEDAL ARM assembly from scratching
the ascent trainers paint.
Open HARDWARE BAG 8.
Attach right SWING ARM to TOP HANDRAIL using 2 SWING CAPS, 2 BOLTS (C), 2 AXLES and 2 WASHERS (D).
Attach the right PEDAL ARM to the right CRANK using 1 WAVY WASHER (J), 1 WASHER (D) and 1 BOLT (C).
Attach the CRANK CAP to the CRANK.
Repeat on opposite side.
A
B
C
D
E
F
ASSEM B LY S T E P 8
LEAVE BOLTS LOOSE until you have finished STEP D.
