BOLTS (K)
WASHERS (L)
LINK ARM
FOOTPAD
WASHER (L)
18 mm
Qty: 8
BOLT (K)
12 mm
Qty: 8
WASHER (I)
18 mm
Qty: 8
BOLT (H)
12 mm
Qty: 8
HARDWARE BAG 6 CONTENTS:

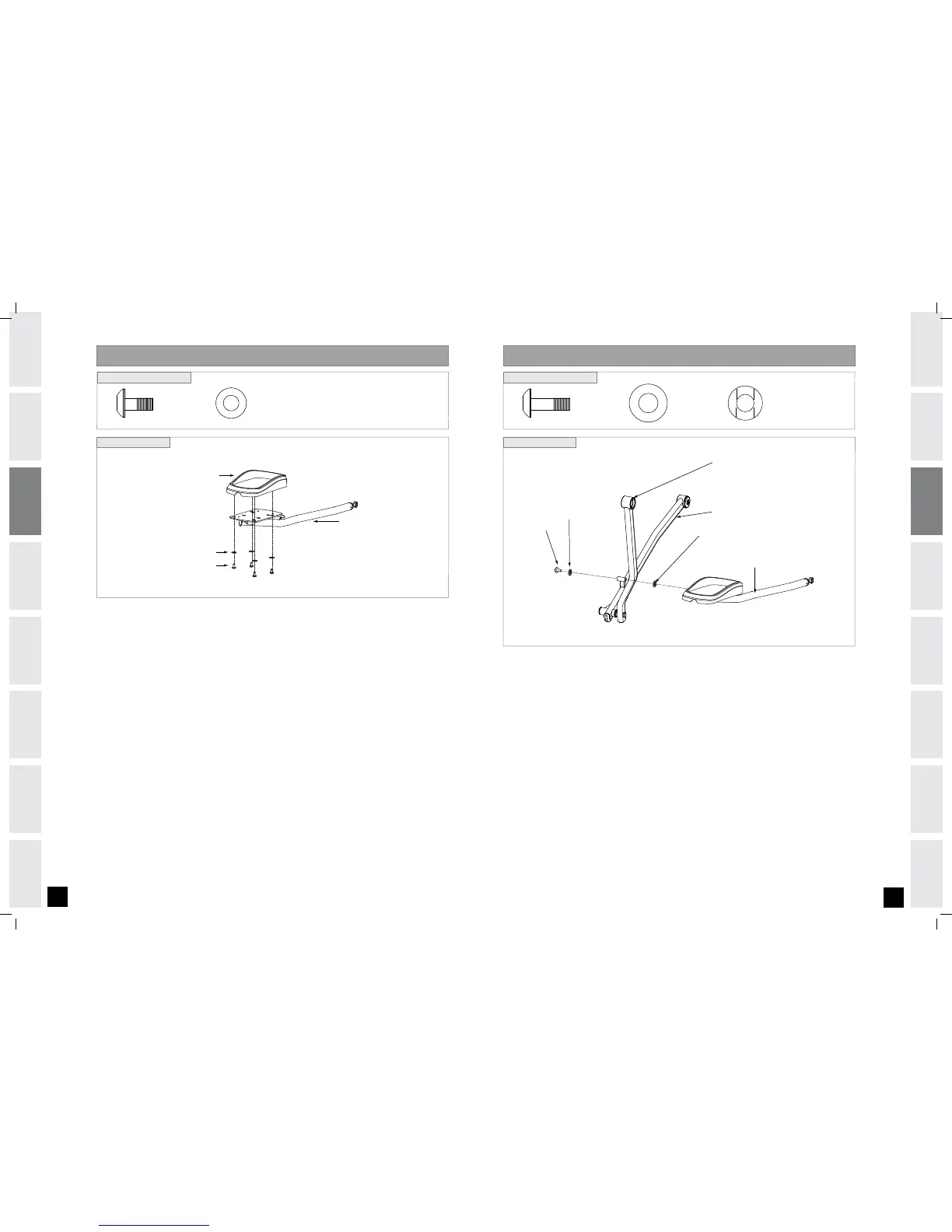

ASSEMBLY STEP 6:
Open HARDWARE BAG 6.
Attach each FOOTPAD to the footpad support on each LINK ARM using 4 BOLTS (K) and 4 WASHERS (L).
Repeat with the left LINK ARM.
A
B
C
ASSEM B LY S T E P 6
BOLT (C)
16 mm
Qty: 2
BOLT (C)
16 mm
Qty: 2
WASHER (P)
38 mm
Qty: 2
WASHER (D)
38 mm
Qty: 2
WAVY WASHER (M)
34 mm
Qty: 2
WASHER (D)
17 mm
Qty: 2
HARDWARE BAG 7 CONTENTS:
Open HARDWARE BAG 7.
Attach right LINK ARM to right PEDAL ARM using 1 BOLT (C), 1 WASHER (P) and 1 WAVY WASHER (M).
Repeat on opposite side.
Discard packaging plastic.
A
B
C
D
ASSEM B LY S T E P 7
BOLT (C)
WASHER (P)
WAVY WASHER (M)
SWING ARM
PEDAL ARM
LINK ARM
ASSEMBLY STEP 7:
