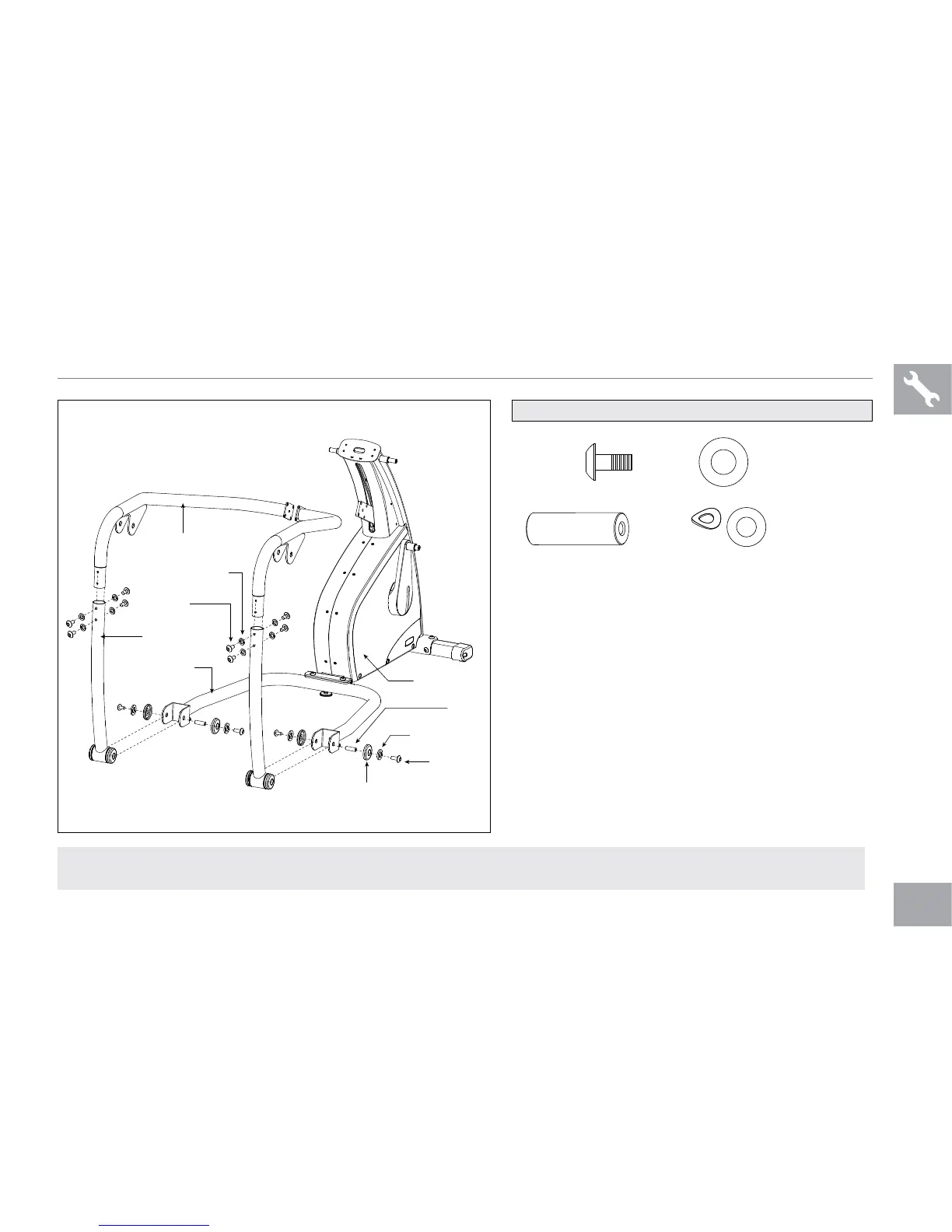

ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.
B Attach the REAR UPRIGHTS to the BASE
FRAME using 4 BOLTS (C), 4 WASHERS (D),
4 BASE RAIL BRACKET CAPS and 2 AXLES.
C Partially thread the TOP HANDRAILS to the
REAR UPRIGHTS using 8 BOLTS (C) and 8
ARC WASHERS (E).
WASHER (D)
25 mm
Qty: 4
AXLE
Qty: 2
BOLT (C)
16 mm
Qty: 12
ARC WASHER (E)
17 mm
Qty: 8
SIDE
VIEW
HARDWARE FOR STEP 2:
BOLTS (C)
ARC WASHERS (E)
BOLTS (C)
WASHERS (D)
AXLE
BASE RAIL
TOP HANDRAIL
MAIN FRAME
REAR UPRIGHT
BASE RAIL BRACKET CAPS
NOTE: Assemble the top handrails so they are parallel to the floor. Do not assemble with the top handrail resting on the floor.
Assemble the rear uprights so they curve toward the main frame as illustrated.
