ASSEMBLY STEP 3
A Open HARDWARE FOR STEP 3.
B Attach each TOP HANDRAIL to the INCLINE
ARM using 4 BOLTS (F) and 4 NUTS (G). To
make assembly easier, lightly tighten all four
bolts to begin, then tighten firmly after all bolts
have been started.
C Tighten all hardware from ASSEMBLY STEP 2.
BOLT (F)
25 mm
Qty: 4
NUT (G)
8 mm
Qty: 4

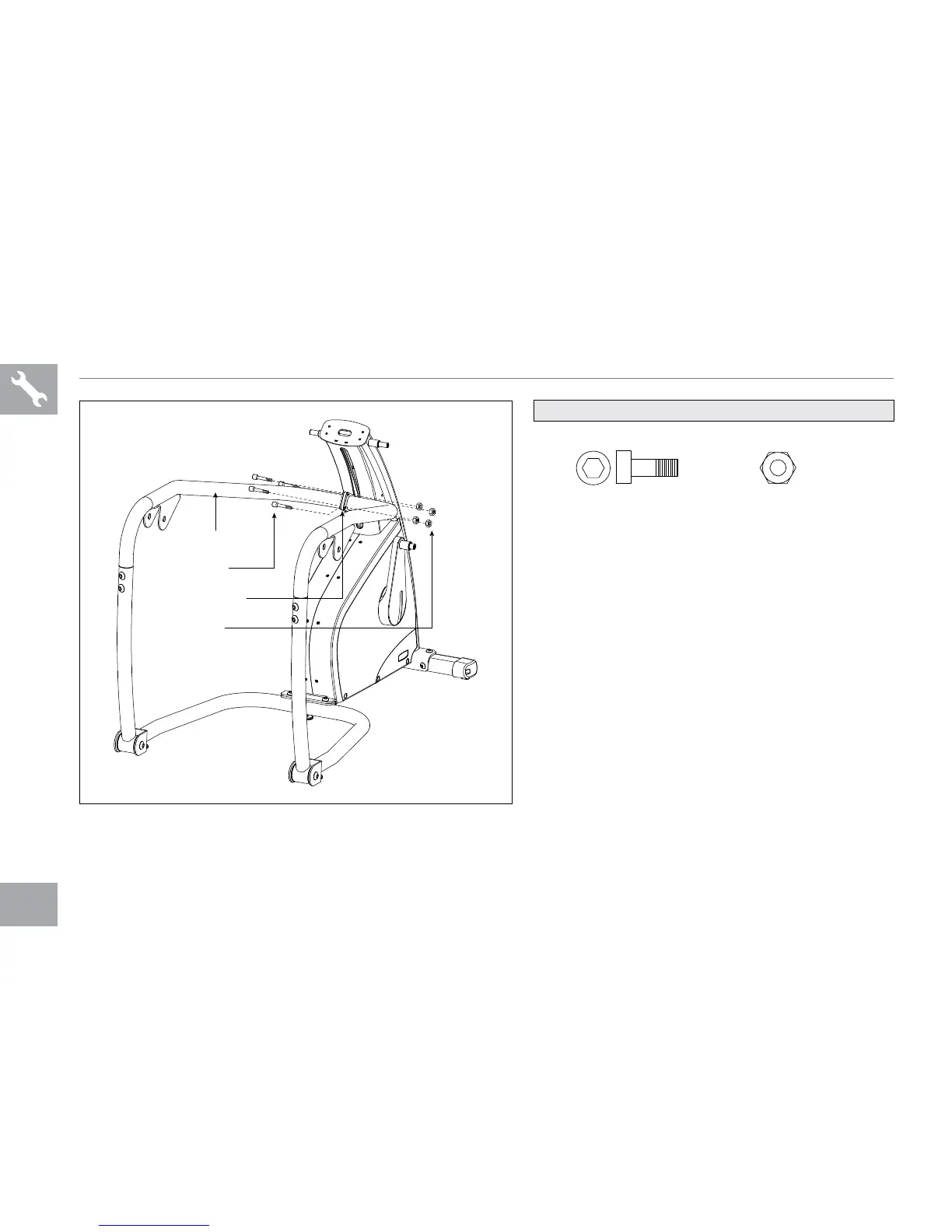

HARDWARE FOR STEP 3:
INCLINE ARM
BOLTS (F)
TOP HANDRAIL
NUTS (G)
