19

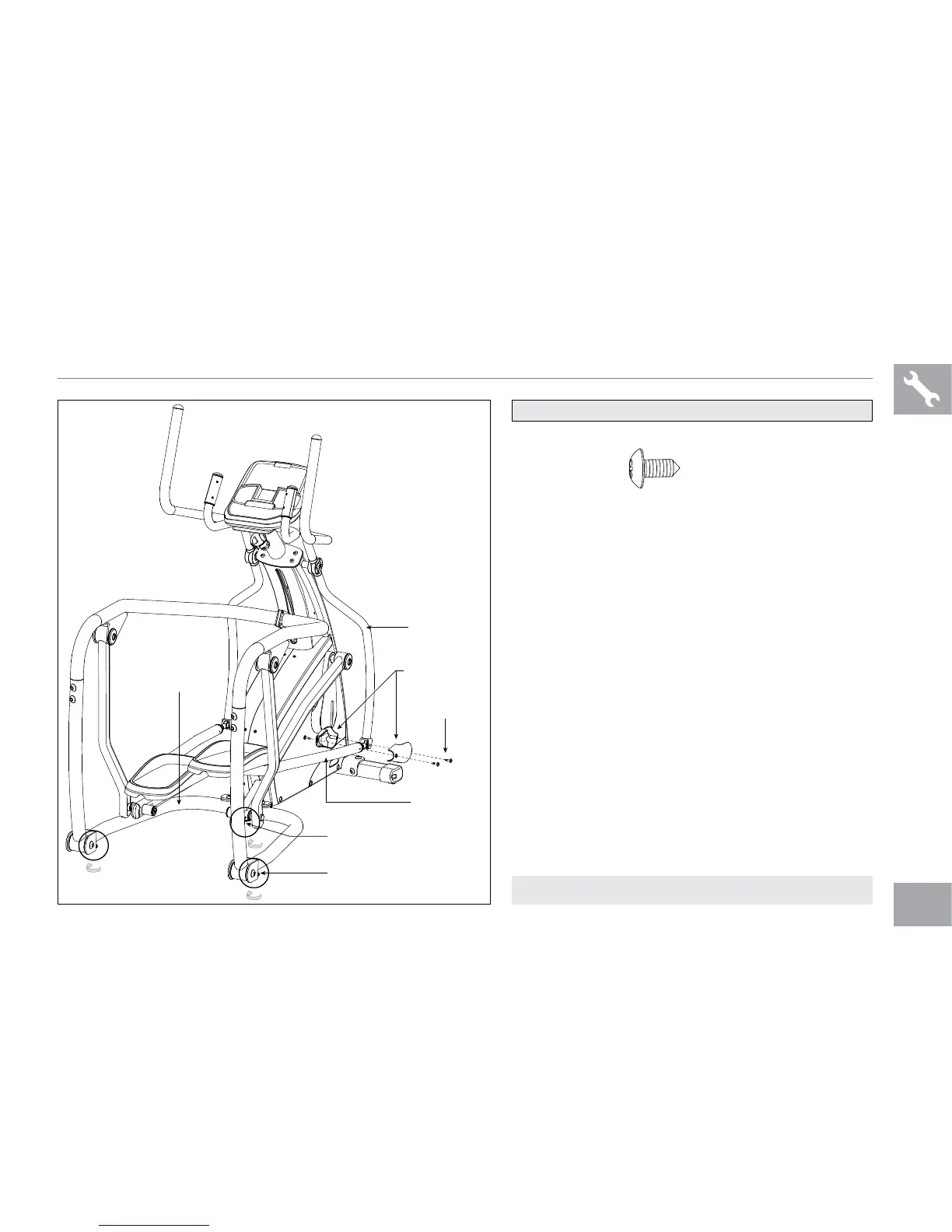

ASSEMBLY STEP 10
A Open HARDWARE FOR STEP 10.
B Attach JOINT COVERS to the joint between
the LINK ARM and the LOWER HANDLEBAR
using 3 SCREWS (O).
C Repeat on opposite side.
D Adjust the 2 REAR LEVELERS so that the
machine is level on the floor. Then adjust the
CENTER LEVELER located under the BASE
RAIL just so it is snug with the floor.
SCREW (O)
12 mm
Qty: 6
HARDWARE FOR STEP 10:
JOINT COVERS
LOWER
HANDLEBAR
SCREWS (O)
LINK ARM
REAR LEVELERS
CENTER LEVELER
BASE RAIL
ASSEMBLY COMPLETE!
