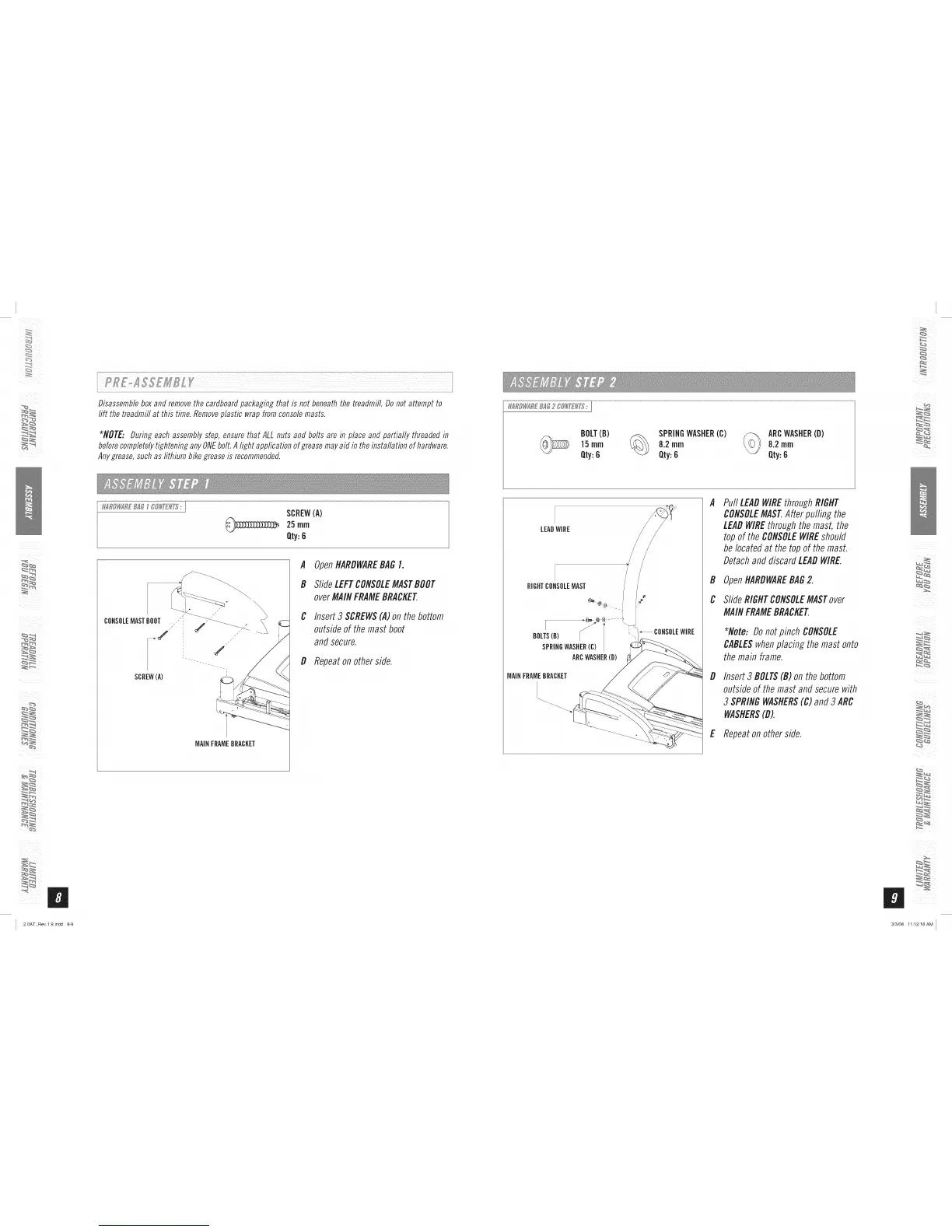

Disassemble box and remove the cardboard packaging that is not beneath the treadmill. Do not attempt to
lift the treadmill at this time. Remove plastic wrap from console masts.
*NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in
before completely tightening any ONEbolt. A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
H_RD_/_[_°B_(_f CONTEHTS:
SCREW(A)
25mm
Qty:6
A
B
C
OpenHARDWAREBAG L
SlideLEFTCONSOLEMASTBOOT
overMAINFRAMEBRACKET.
Insert3 SCREWS(A)on thebottom
outsideof the mast boot
andsecure.
D Repeaton other side.
BOLT(B)
15mm
Qty:6
SPRINGWASHER(C)
8.2 mm
Qty:6
ARCWASHER(B)
8.2 mm
Qty:6
LEADWiRE
BOLTS(B)
SPRINGWASHER(C)
ARCWASHER(B)
MAiNFRAMEBRACKET
A
B
C
D
PuffLEADWIREthroughRIGHT
CONSOLEMAST.Afterpulling the
LEADWIREthroughthe mast,the
top of the CONSOLEWIREshould
belocatedat the top of the mast.
DetachanddiscardLEADWIRE.
OpenHARDWAREBAG2.
SlideRIGHTCONSOLEMASTover
MAINFRAMEBRACKET.
*Note: Donot pinch CONSOLE
CABLESwhenplacing the mast onto
the main frame.
Insert3 BOLTS(B)onthe bottom
outsideof the mast and securewith
3 SPRINGWASHERS(C)and 3 ARC
WASHERS(D).
E Repeat on other side.
