AFG 2.0 AT - Page 6

ii_:_ i_
ii_:_ _i
BOLT(E) (_
lOmm
Qty:4
SPRINGWASHER(C)
8.2ram
Qty:4
LEFTSIDE
@
RIGHTSlOE
f
f
CONSOLE
CONSOLEMASTCAP
SPRINGWASHERS(C)---_ @_
BOLTS(E)----_
A
B

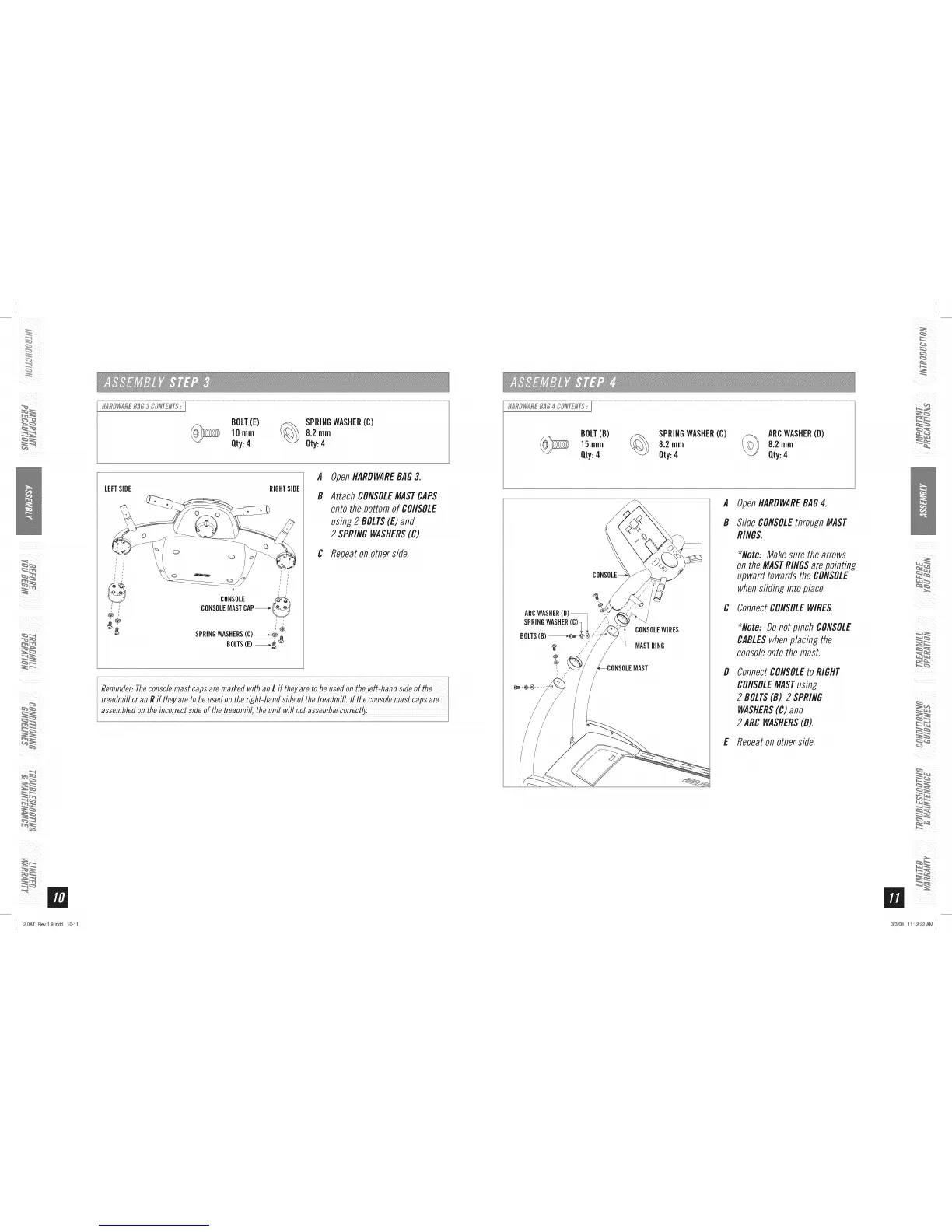

OpenHARDWAREBAG3.
Attach CONSOLEMASTCAPS
ontothe bottomof CONSOLE
using2 BOLTS(E)and
2 SPRINGWASHERS(C).
C Repeat on other side.
BOLT(B)
15 mm
Qty:4
SPRINGWASHER(C)
8.2 mm
Qty:4
ARCWASHER(D)
8.2 mm
Qty:4
ARCWASHER(D)
SPRINGWASHER
_"_1 __ CONSOLEWIRES
BOLTS(B)_-e® i
" MASTRiNG
, ;ONSOLEMAST
A OpenHARDWAREBAG4.
B Slide CONSOLEthroughMAST
RINGS.
*Note: Make sure the arrows
on the MASTRINGSare pointing
upward towards the CONSOLE
when slidin_ into place.
C Connect CONSOLEWIRES.
D
*Note: Donotpinch CONSOLE
CABLESwhenplacing the
consoleontothemast.
ConnectCONSOLEto RIGHT
CONSOLEMASTusing
2 BOLTS(B), 2 SPRING
WASHERS(C)and
2 ARCWASHERS(D).
E Repeatonotherside.
_3
i__ i
i iiiiii ii i
