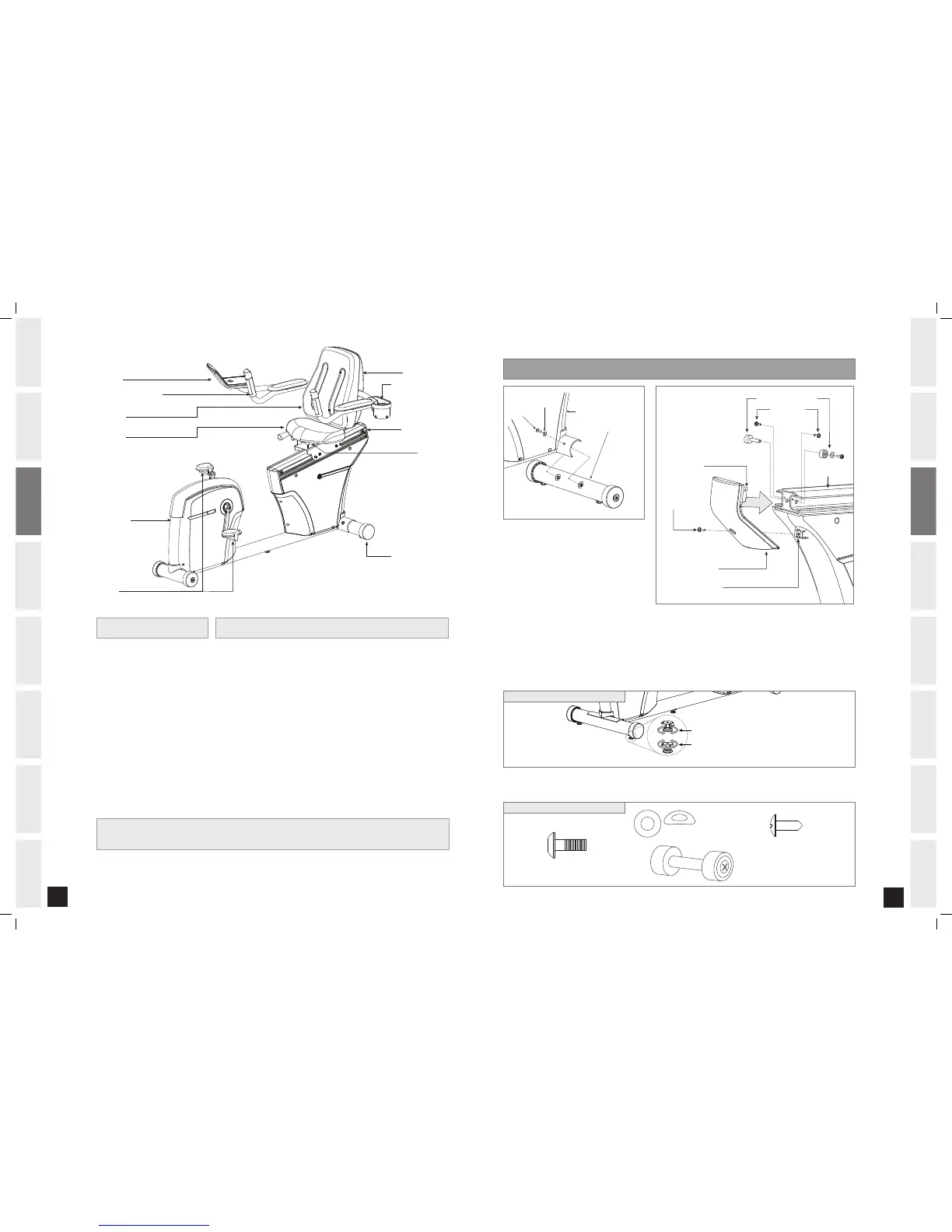

ASSEMBLY ST EP 1
Open HARDWARE BAG FOR STEP 1
Attach the REAR STABILIZER TUBE to the
MAIN FRAME using 2 BOLTS (A) and 2
ARC WASHERS (B)
Remove the PRE ATTACHED SCREW from
the MOUNTING BRACKET.
Attach the REAR PLASTIC CAP to the MAIN FRAME using 2 SCREWS (K) and the PRE ATTACHED SCREW.
NOTE: Make sure PLASTIC TABS are positioned on the inside of the GUIDE RAIL.
Remove one of the rubber bumpers from the SEAT STOP ASSEMBLY. Slide the SEAT STOP ASSEMBLY through
the GUIDE RAIL and re-attach the rubber bumper to the SEAT STOP ASSEMBLY using the screw and washer.
A)
B)
C)
D)
E)
TOOLS INCLUDED PARTS INCLUDED
c 5mm Allen Wrench
c 13/15mm Flat Wrench
c Phillip Screwdriver
c 5mm T Wrench
c 1 Console
c 2 Pedals
c 1 Seat Back
c 1 Seat Back Cover
c 1 Seat Base
c 7 Hardware Bags
c 1 Rear Plastic Cap
c 1 Rear Stabilizer Tube
c 1 Frame
c 1 Pulse Grip Handlebar
c 1 Seat Frame
c 1 Water Bottle Holder
c 1 Water Bottle
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
CONSOLE
MAIN FRAME
WATER BOTTLE HOLDER
SEAT BACK
SEAT BASE
PULSE GRIP HANDLEBARS
PEDALS
SEAT FRAME
REAR PLASTIC CAP
SEAT BACK COVER
REAR STABILIZER TUBE
