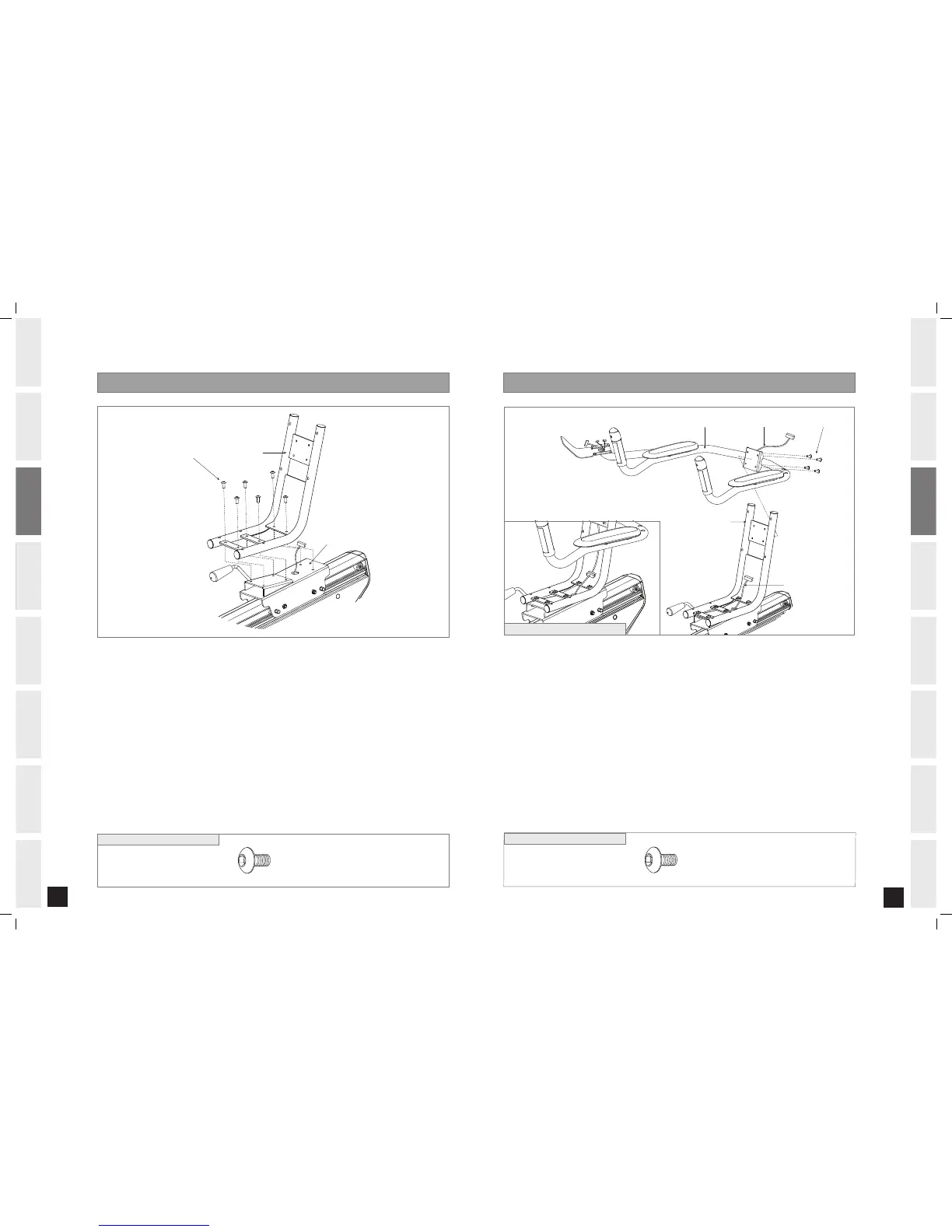

ASSEMBLY ST EP 3ASSEMBLY ST EP 2
Open HARDWARE BAG FOR STEP 2.
Attach the SEAT FRAME to the SEAT SLIDE using 6 BOLTS (B).
A)
B)
BOLT (C)
15 mm
Qty: 6
HARDWARE BAG FOR STEP 2 CONTENTS :
SEAT FRAMEBOLTS (C)
SEAT SLIDE
BOLT (C)
15 mm
Qty: 4
HARDWARE BAG FOR STEP 3 CONTENTS :
Open HARDWARE BAG FOR STEP 3.
Attach ARM REST to SEAT FRAME using 4 BOLTS (C).
Attach the CONSOLE CABLE from the rear of the recumbent to the CONSOLE CABLE from the ARM REST
BAR.
Note: Tuck in wires as shown. Be sure that the PULSE GRIP WIRES will not be crushed when adjusting
the seat back and forth.
A)
B)
C)
BOLTS (C)ARM REST BAR CONSOLE CABLE
SEAT FRAME
CONSOLE CABLE
BOLTS (C)ARM REST BAR CONSOLE CABLE
SEAT FRAME
CONSOLE CABLE
WIRE CONNECTION
