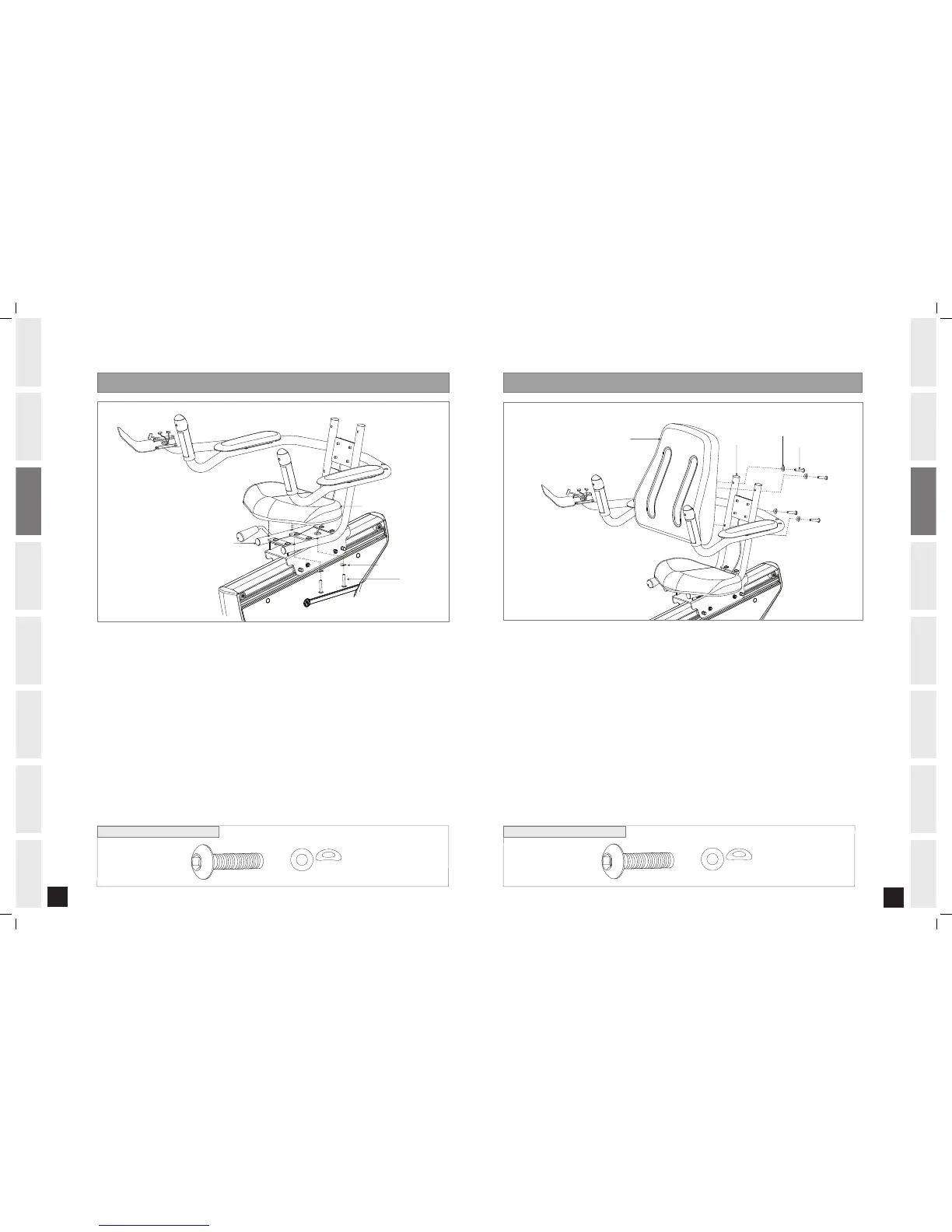

ASSEMBLY ST EP 4 ASSEMBLY ST EP 5
BOLT (E)
ARC WASHER (F)
SEAT FRAME
SEAT BACK CUSHION
BOLT (E)
45 mm
Qty: 4
section to the seat back set.
ARC WASHER (F)
15.4 mm
Qty: 4
SIDE VIEW
HARDWARE BAG FOR STEP 4 CONTENTS :
Open HARDWARE BAG FOR STEP 4.
Attach the SEAT BASE to the SEAT FRAME using 4 BOLTS (E) and 4 ARC WASHERS (F).
A)
B)
Open HARDWARE BAG FOR STEP 5.
Attach the SEAT BACK CUSHION to the SEAT FRAME using 4 BOLTS (E) and 4 ARC WASHERS (F).
A)
B)
SEAT BASE
BOLT (E)
SEAT FRAME
ARC WASHER (F)
BOLT (E)
45 mm
Qty: 4
section to the seat back set.
ARC WASHER (F)
15.4 mm
Qty: 4
SIDE VIEW
HARDWARE BAG FOR STEP 5 CONTENTS :
