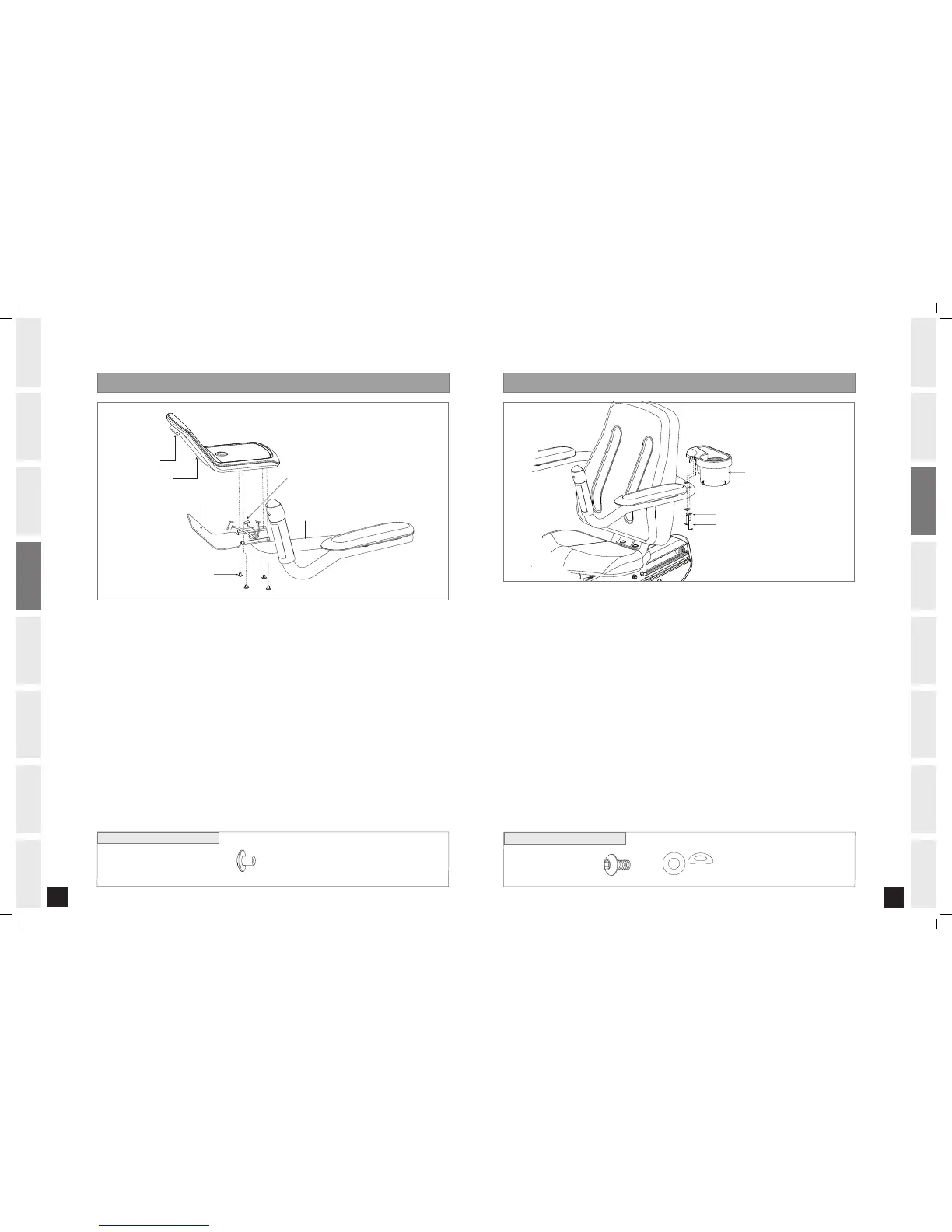

ASSEMBLY ST EP 6
BOLT (G)
CONSOLE
STRENGTHENING PLATE
CONSOLE MAST
CONSOLE WIRES
CLIP
Open HARDWARE BAG FOR STEP 6.
Plug the CONSOLE MAST WIRES into the bottom of the CONSOLE.
Carefully tuck the CONSOLE WIRES into the CONSOLE MAST before attaching the CONSOLE.
NOTE: DO NOT PINCH WIRES!
Attach the CONSOLE to the CONSOLE MAST using 4 BOLTS (G).
NOTE: Make sure the strengthening plate is inserted into the CLIP on the back of the console before
tightening the screws.
A)
B)
C)
D)
BOLT (G)
7 mm
Qty: 4
HARDWARE BAG FOR STEP 6 CONTENTS :
ASSEMBLY ST EP 7
WATER BOTTLE HOLDER
BOLT (H)
ARC WASHER (I)
Open HARDWARE BAG FOR STEP 7.
Attach the WATER BOTTLE HOLDER to the ARM REST using 2 BOLTS (H) and 2 ARC WASHERS (I).
A)
B)
BOLT (H)
30 mm
Qty: 2
ARC WASHER (I)
15.4 mm
Qty: 2
SIDE VIEW
HARDWARE BAG FOR STEP 7 CONTENTS :
