AFi NANTUCKET MURPHY - Back View

Page 5 of 8
05
G
G
G
F
F
F
F
G

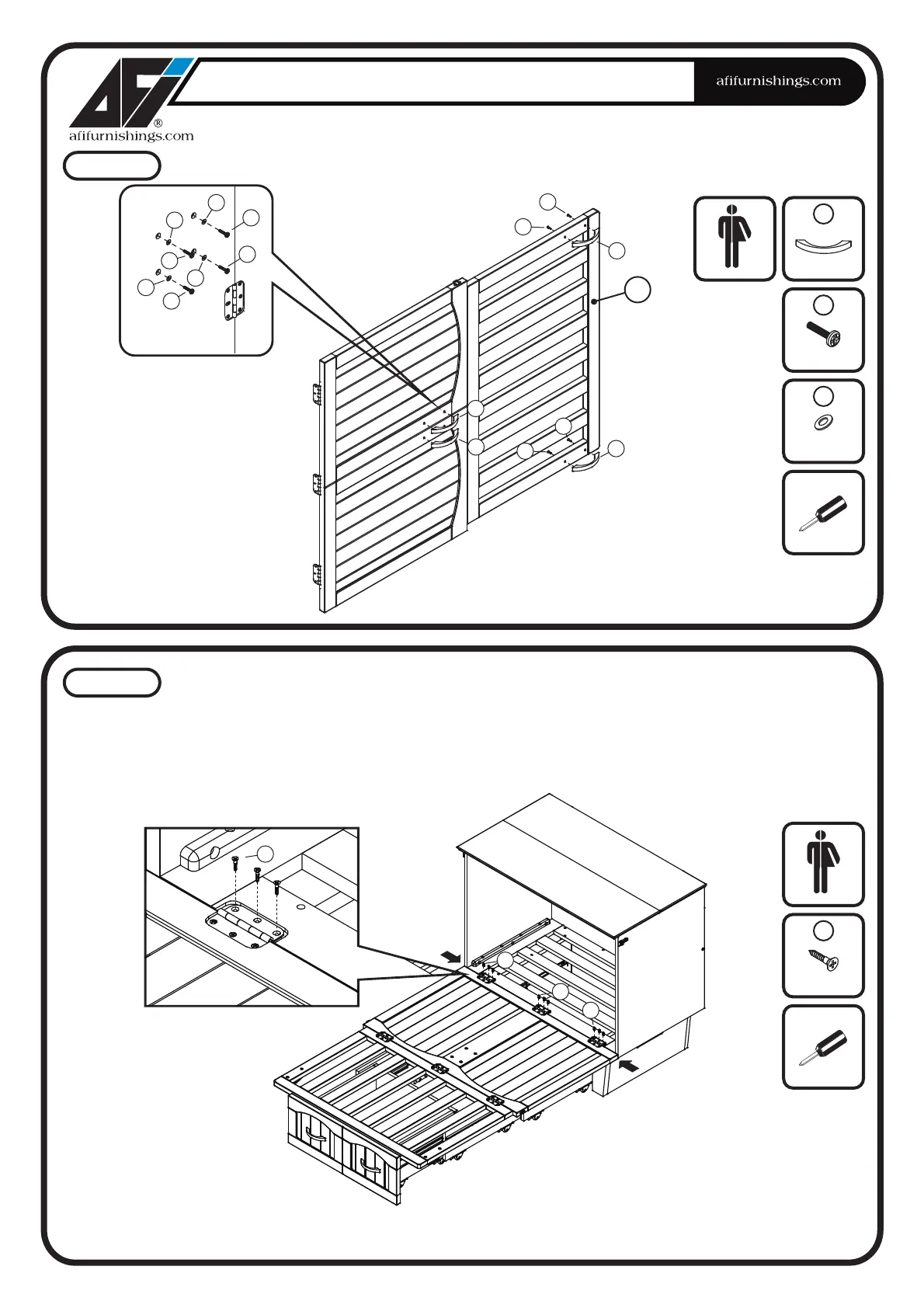

STEP 6
Install metal pull (F) to the locator holes on (05) as shown below. Using metal
pull screw (G) and washers (H) tighten with Phillips screwdriver (customer supplied).
Metal pull
Metal pull screw
F
G
Phillips screwdriver
Customer supplied
Adult assembly
Washer
Adjust quantity
as needed
H
NANTUCKET MURPHY BED
WITH CHARGING STATION
STEP 7
TWIN
Back view
G
H
H
H
H
G
G
G
C
C
C
C
Lay the door down flat as shown below. Attach door hinge to drawer base using wood
screw (C) and tighten with Phillips screwdriver (customer supplied ).
Note: Be sure to align door with side panels in this step.
Wood screw 5/8”
C
Phillips screwdriver
Customer supplied
Adult assembly
