AFi NANTUCKET MURPHY - TOP PANEL AND DOOR ATTACHMENT

NANTUCKET MURPHY BED
WITH CHARGING STATION

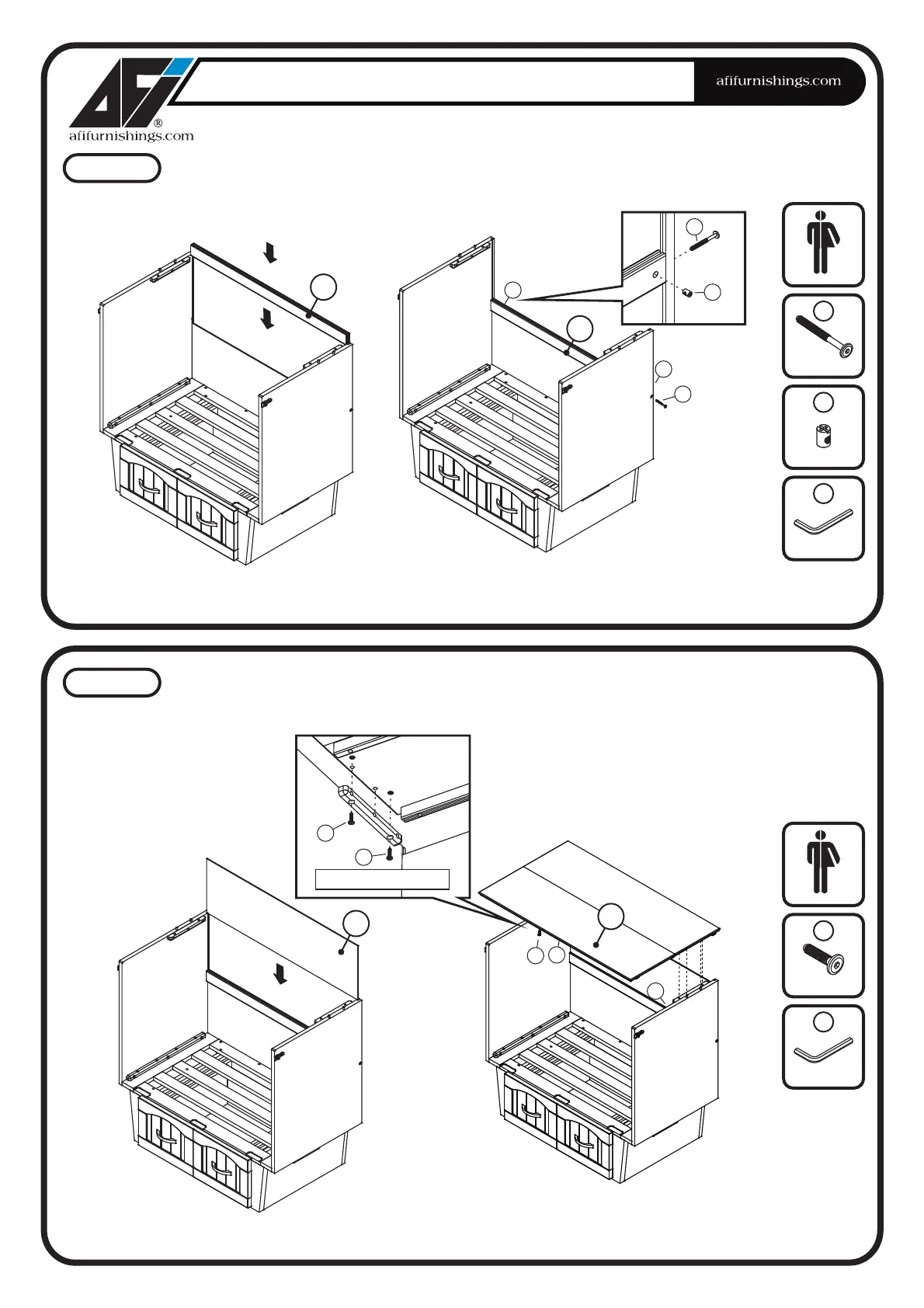

STEP 4
JCB M6 X mm60
Barrel Nut
Allen wrench
D
E
K
Adult assembly
Guide the (0 ) in carefully so that it won’t jump out of its grooves.middle back rail 7
Using JCB (D) and barrel nut (E). Tighten with Allen wrench ( ).K
07
06
02
07
E
B
B
B
B
B
E
E
D
D
STEP 5
Guide the back panel (0 ) in carefully so that it won’t jump out of its grooves. Be sure
it fits fully into its groove at the .
6
middle back rail Attach top panel (02) to cabinet
assembly as shown below. Use JCB (B). Tighten with Allen wrench ( ).K
JCB M6 X 25mm
Allen wrench
B
K
Adult assembly
BOTTOM VIEW
Page 4 of 8
