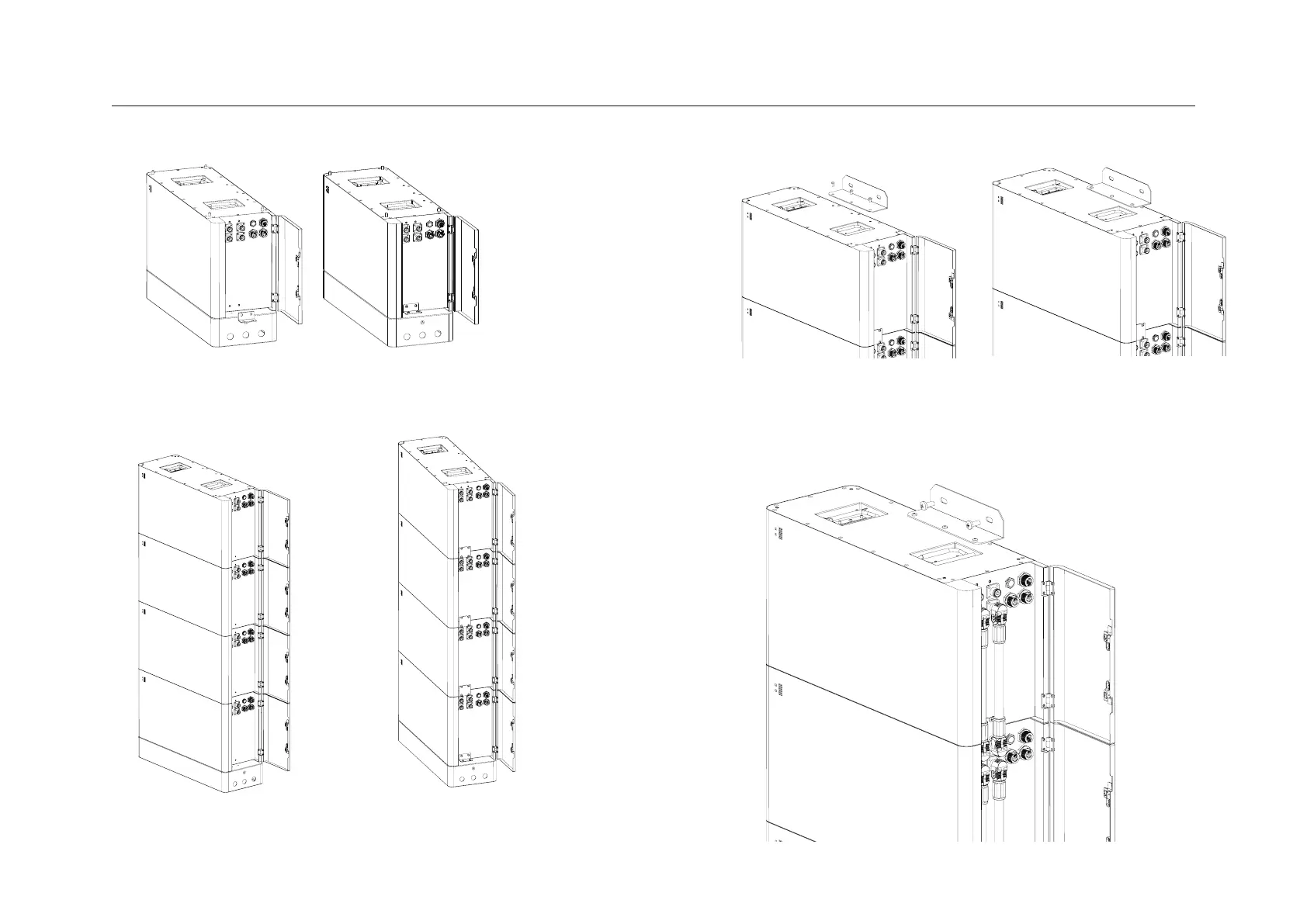

Secure the battery module to the base with the L-shape plate.
Step 3
Step 4
Place the next battery module on top of the first battery module and secure the
battery modules with the fixing plate. Repeat this step until all battery modules
have been installed.
Step 5
Attached the L-shape support frame onto the battery as shown in the image.
Step 6
Drill three holes of in the wall and insert three screw plugs.Insert three screws to
secure the L-shape support frame to the wall.
（3.1） （3.2）
（5.1） （5.2）
（4.1） （4.2）
17 18
