4.Operation

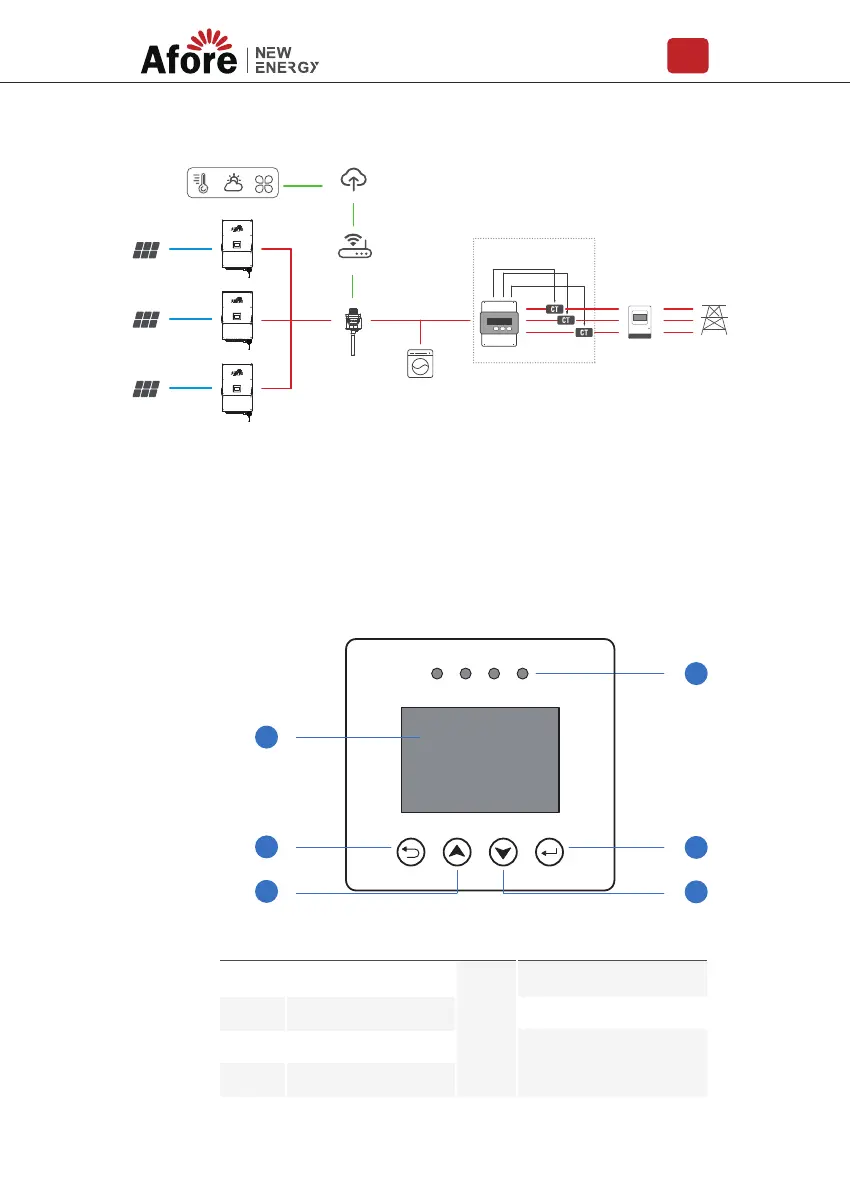

4.1 Control Panel
1
3
52
4
6
IItteemmssNNoo.. IItteemmssNNoo..
1
2
3
4
5
6
LCD Display
GRID LED Indicator
POWER LED Indicator
FAULT LED Indicator
DOWN Touch Button
ESC Touch Button
UP Touch Button
ENT Touch Button
RUN LED Indicator
Grid
Load
Distribu�on Cabinet
L1
L1‘
L2’
L3’
L2
L3
PV Array
RS485 / WiFi / Ethernet / GPRS
Afore Smart Meter
PV Array
PV Array
Router
Cloud Server
Weather Sta�on
Energy Meter
UP DOWNESC ENT
RUN FAULTGRID POWER
PV Inverter
PV Inverter
PV Inverter
