Installation
07

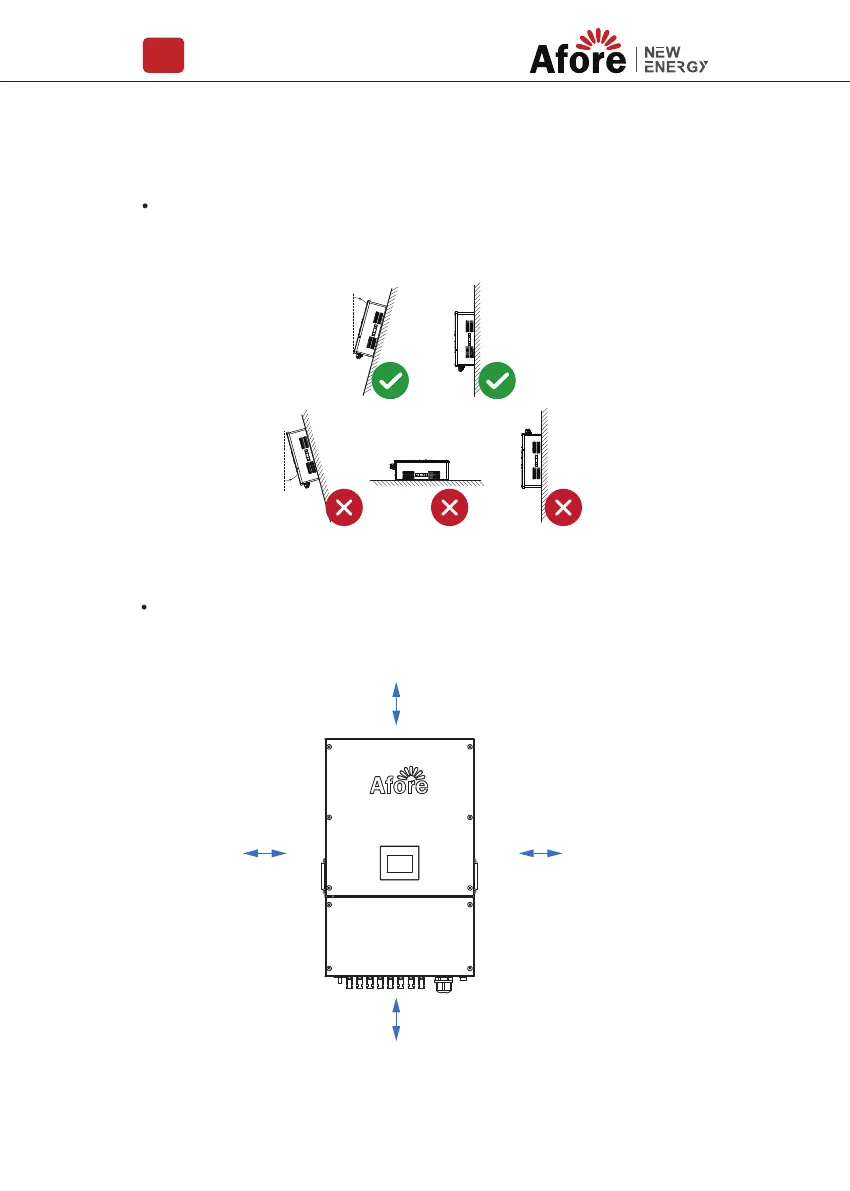

The inverter should be installed vertically on the wall, or lean back on plane
with a limited tilted angle. Please refer to below picture.
Leave the enough space around inverter, easy for accessing to the inverter,
connection points and maintenance.
300mm 300mm
500mm
500mm
<30°
>0°
Max
