Connect the Smart Meter to Single-phase System
05
4. Connect the Smart Meter to Single-phase System

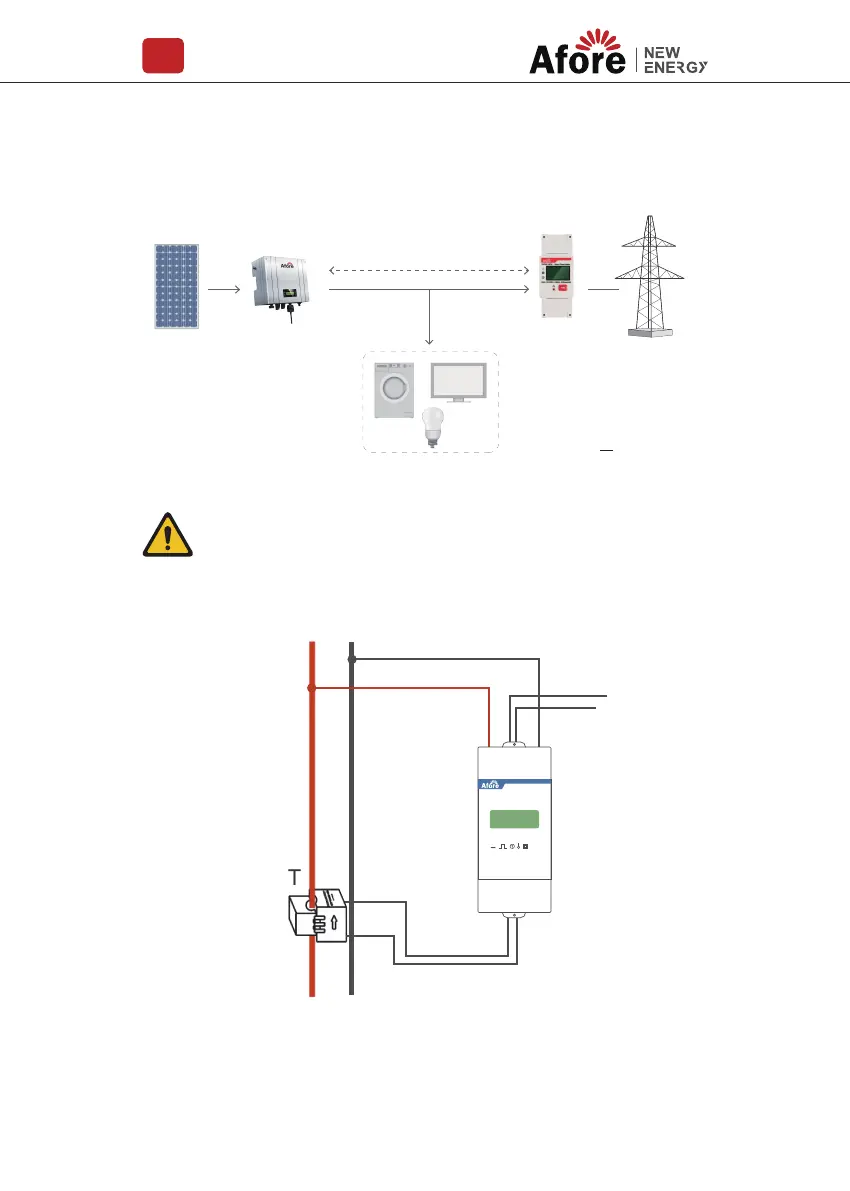

4.1 System Diagram
PV GENERATOR
Afore Simplex
SAPM-10KW Meter
HOUSEHOLD CONSUMERS
GRID
Communication path
Power path
......
RS485
HNS1000TL-1~HNS10000TL
Inverter
LOAD
CT
L N
RS485B
RS485A
I*
LINE
DDSU666 DIN-RAIL METER
230V */100mA 800imp/kWh
(White)
87
65
3 4
I
(Blue)
Note:
When the load exceeds 10kW, a CT needs to be added, see the
figure below:
