afx light BEAM2R-X - Pcb Board

©Copyright LOTRONIC 2016 BEAM2R-X Page 11

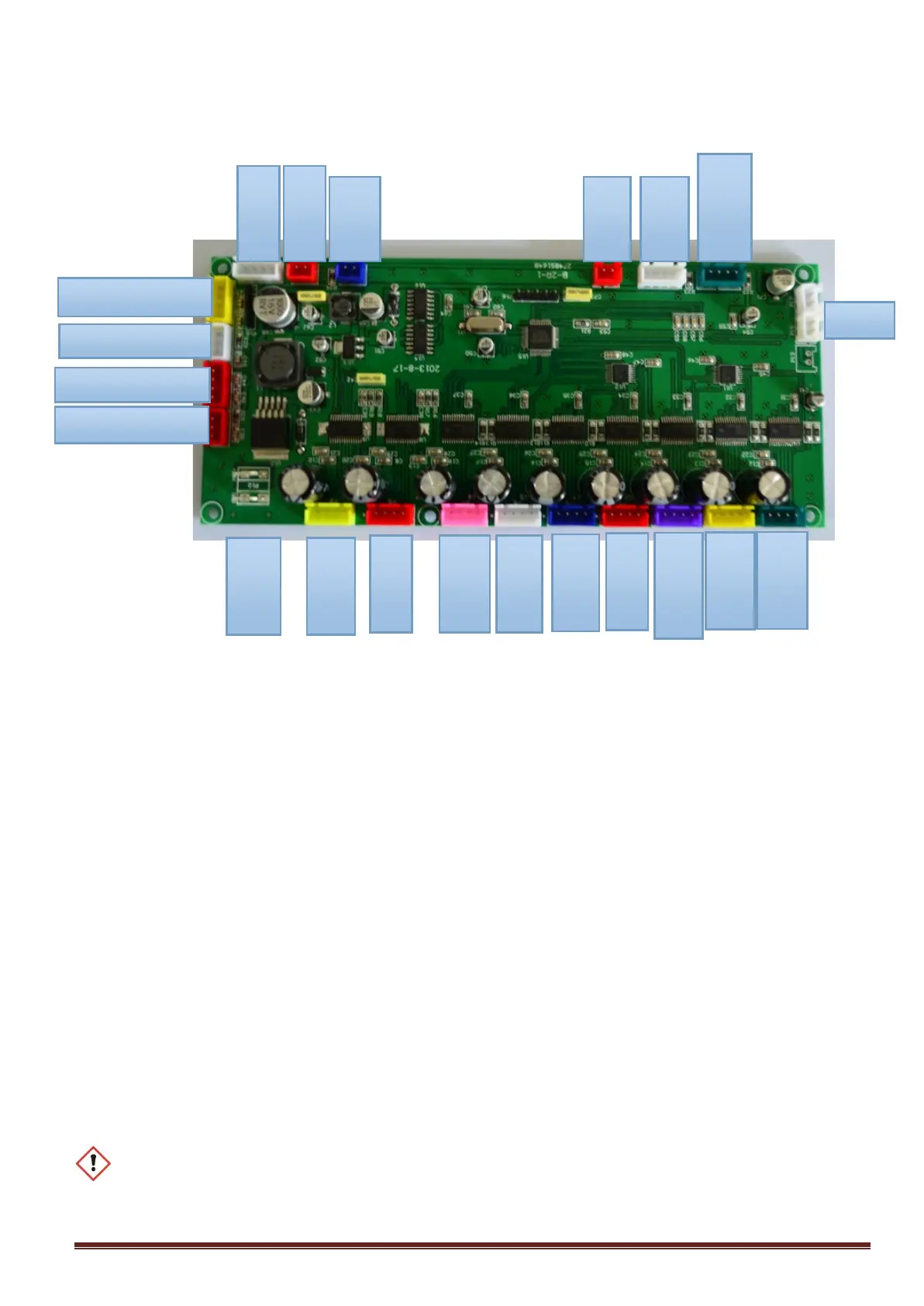

10.PCB BOARD
Specifications
Voltage: ................................................................................................................. 110-240V∼ 50/60Hz
Fuse: ............................................................................................................................. 6A - 250V
Power consumption: ........................................................................................................................................350W
Light source: ................................................................................................ 2R YODN MSD 132W, 9300K
Pan: ...................................................................................................................................... 540°
Tilt: ....................................................................................................................................... 270°
Function: ............ Sound
control, Auto-run, Master/Slave, DMX 512 16bits, Strobe, beam 0-4°
Max. Ta ................................................................................................................................. 40°C
Channel: ..........................................................................................................16 DMX channels
Data input .................................................................................... Locking 3-pin XLR male socket
Data output ............................................................................ Locking 3-pin DMX female socket
Data pin configuration ................................................................. Pin1 shield, pin 2 (-), pin 3 (+)
Dimensions .................................................................................................. 272 x 279 x 415 mm
N.W: ................................................................................................................................ 11.85kg
Disconnect the power cord before replacing a fuse and always replace with the same type fuse.
Fan
Color
Gobo
Prism rotate
Frost
Prism
Focus
Shutter
PAN
Tilt
26V power
Color testing
Focus
Thermost
DMX IN
Thermostat
Fan
Tilt Optical sensor
Tilt Magnetic sensor
PanOptical Sensor
Pan Magnetic sensor
