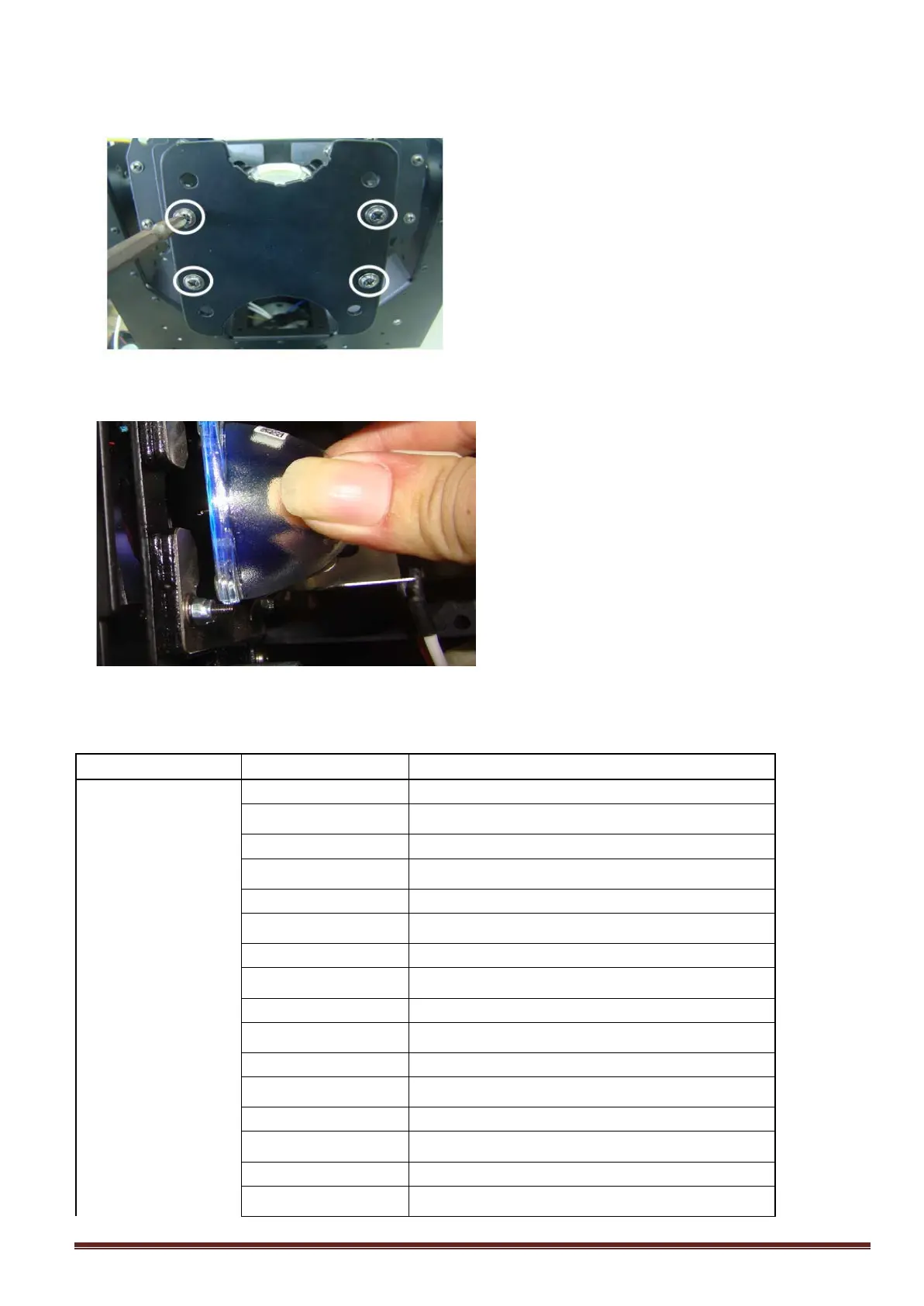

4. Please loose the screws installed in the metal pieces as following.
5. Press the lamp reflector slightly use one finger, and press the lamp bottom slightly use another finger. So the
lamp will loose from the stand.
6. Repeat the above steps on the contrary action to install the lamp.
7. DMX CHANNELS
Channels
DMX value
Detail
0~4
White
5~8
White＋Color 1
9~12
White 1
13~17
Color 1＋Color 2
18~21
Color 2
22~25
Color 2＋Color 3
26~29
Color 3
30~34
Color 3＋Color 4
35~38
Color 4
39~42
Color 4＋Color 5
43~46
Color 5
47~51
Color 5＋Color 6
52~55
Color 6
56~59
Color 6＋Color 7
60~63
Color 7
64~68
Color 7＋Color 8
