©Copyright Lotronic 2018 Manual DMX512-PRO 3
manually, sound-controlled or automatically. All settings of your light show can be
conveniently stored and archived on a USB memory device.

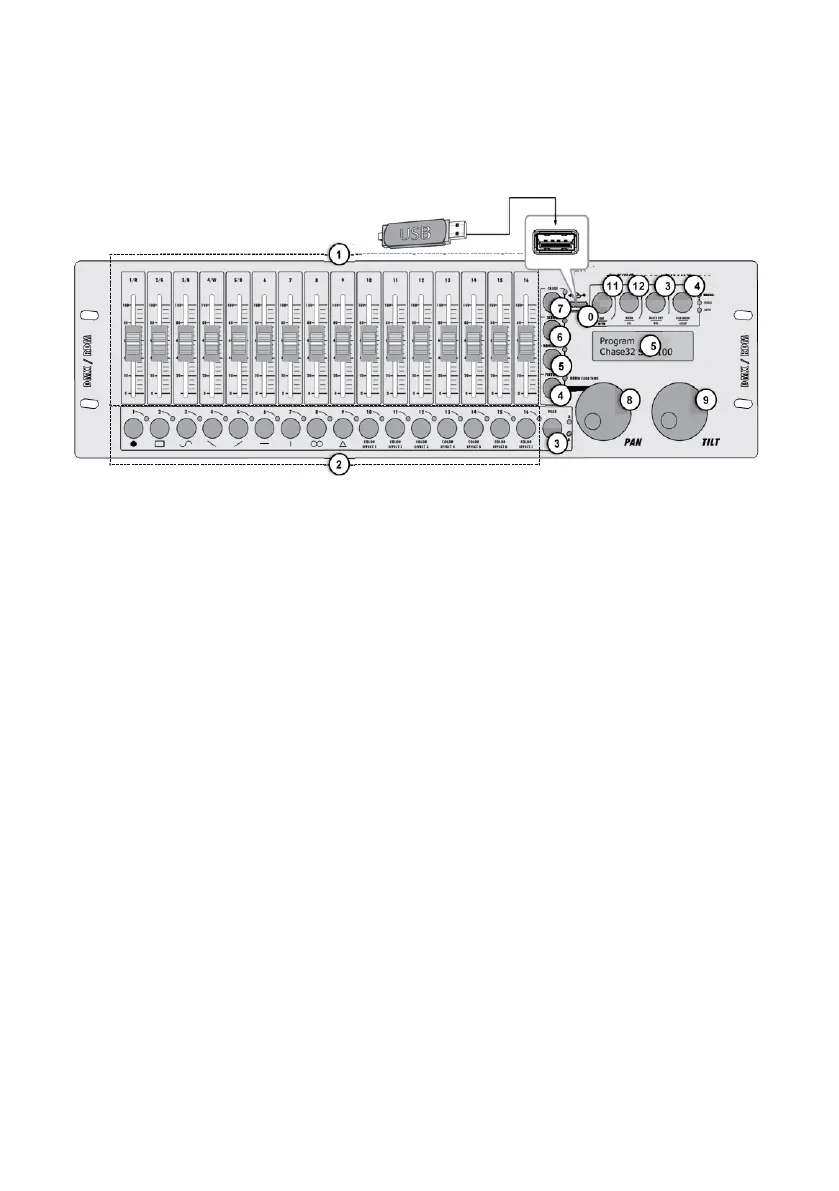

CONTROLS & FUNCTIONS
TOP panel:
1. Slider controls 1-16
•
For adjusting the DMX values of the connected light effect units. The current DMX
value is indicated on the display.
•
Controls 1-4 adjust the brightness ratio of the red, green, blue and white LEDs of the
light effect units and control 5 adjusts the total brightness.
2. Number buttons 1 to 16 with LEDs
These buttons control different functions depending on the selected mode and have
a dual function; the PAGE button allows switching between the two channel groups
1-16 and 17-32.
•
FIXTURE: To select and deselect devices.
•
MOVEMENT: To activate and deactivate movement patterns (button 1-9) or color
effects (button 10-16).
•
SCENE: To activate or deactivate illumination scenes.
•
CHASE: To activate or deactivate chases.
3. PAGE Button with LEDs
To switch the number buttons between the two channel groups 1-16 and 17-32.
•
LED A lights: channel group 1-16 is selected.
•
LED B lights: channel group 17-32 is selected.
4. FIXTURE Button with LED
•
With the button pressed (LED lights) the number buttons allow to select and deselect
devices.
•
Adjusts the fade in time for the RGBW color channels together with the pan wheel.
5. MOVEMENT Button with LED
With the button pressed (LED lights) the number buttons allow to activate and
deactivate movement patterns or color effects.
