PF3000 Cotton Yield Monitor
Ag Leader Technology
General
March 2002
Area Count Switch
The area count switch manually turns area counting on and off. When the
switch is in the up position area is counting. When the switch is in the
down position, area is not counting. The monitor will display either "AREA
ON" or "AREA OFF" on the bottom right corner of the display to indicate
the status of area counting.
Connectors
The PF3000 has four connectors on the bottom side of the console. The
large 25-pin connector is for power and sensor connections. The three 9-pin
ports (Port 1, Port 2 and Port 3) are for connecting a GPS receiver (Port 1)
and as yet to be determined functions for Ports 2 and 3.

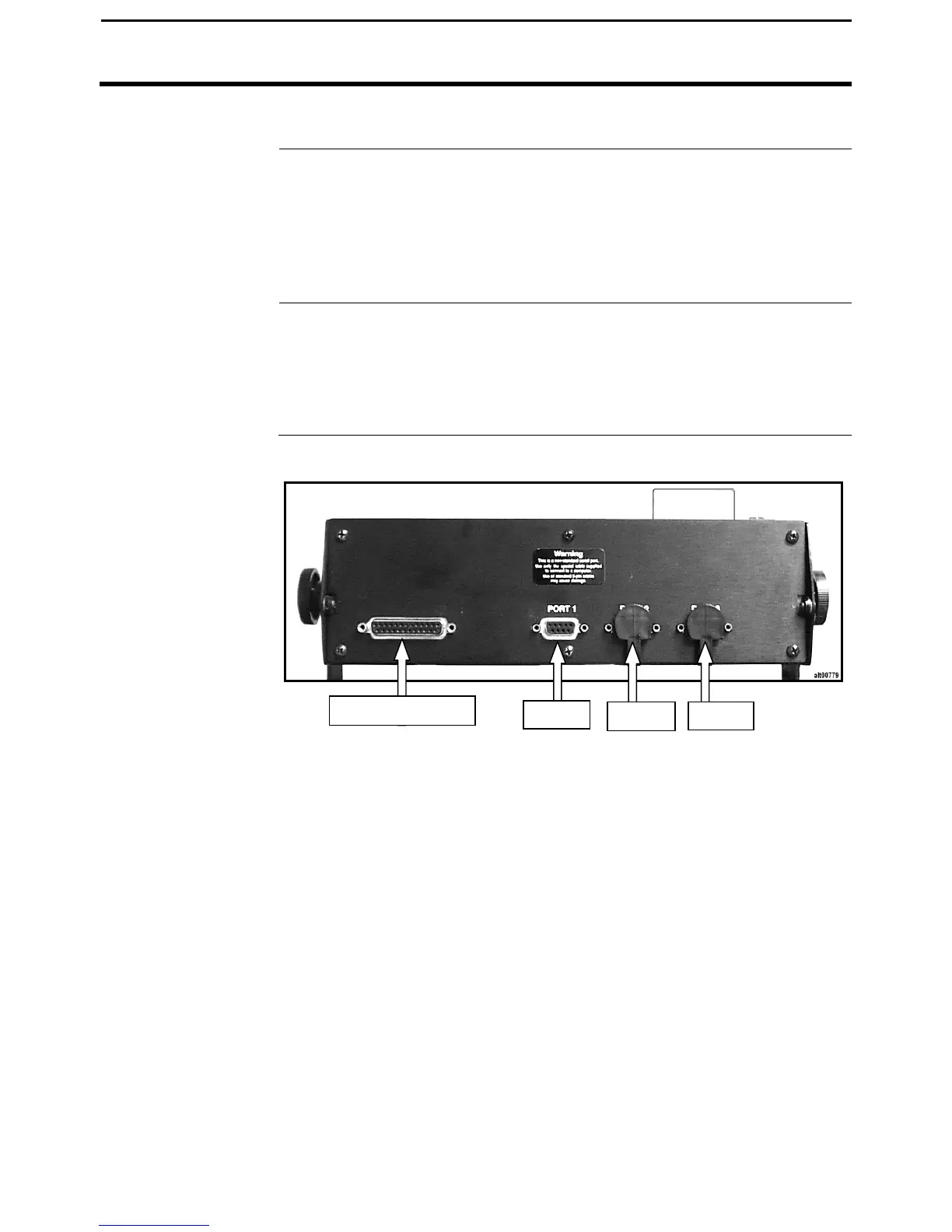

Figure 2: PF3000 Connectors
