AR / 25.07.23 / Version 1 16

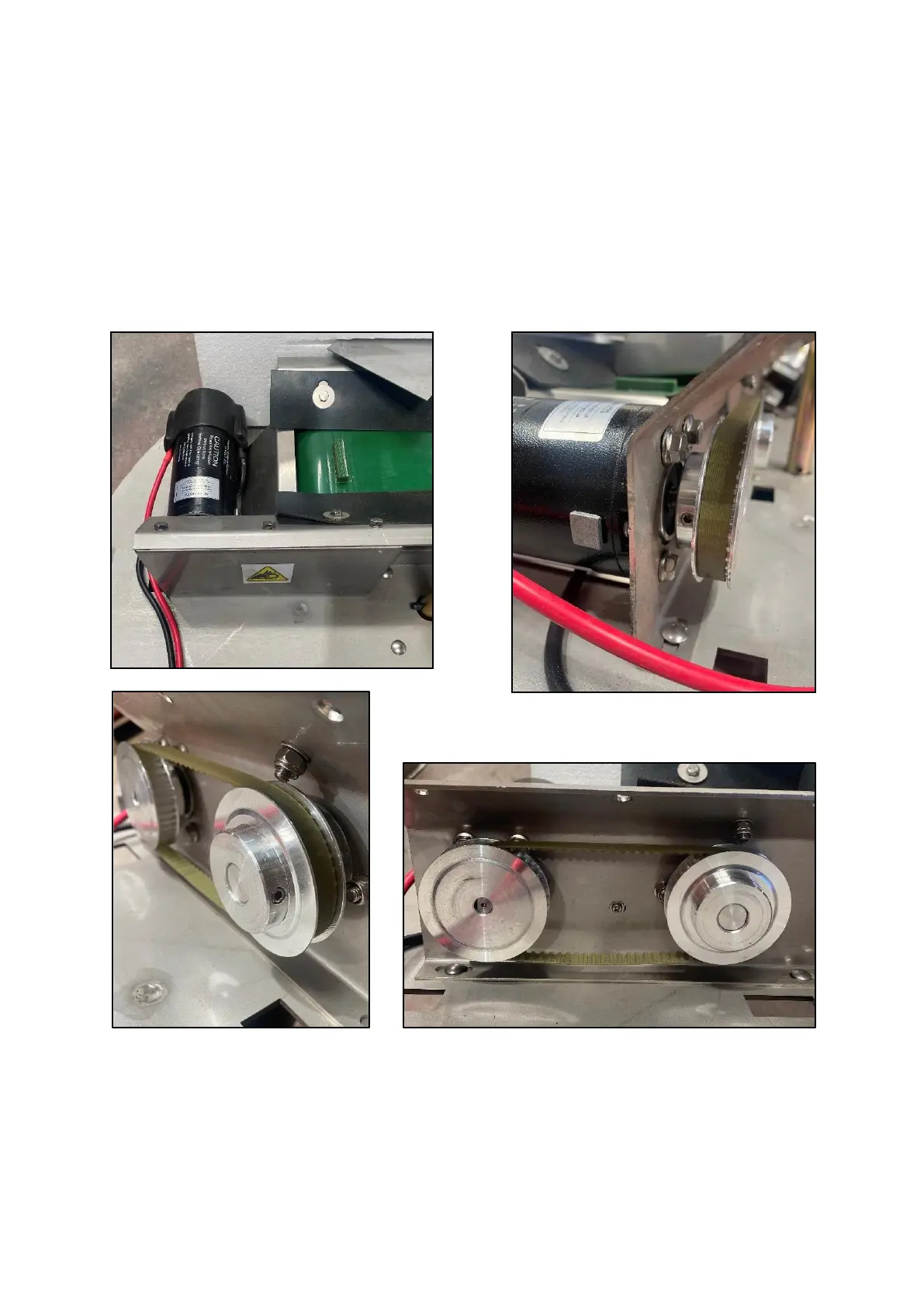

4.2 COMPLETE CONVEYOR UNIT
The conveyor unit is fixed to the chassis of the AG Maxi, underneath the hopper. 12 V from
the electrical enclosure powers the conveyor motor.
