5.9 AG MAXI AGITATOR AND GEARBOX

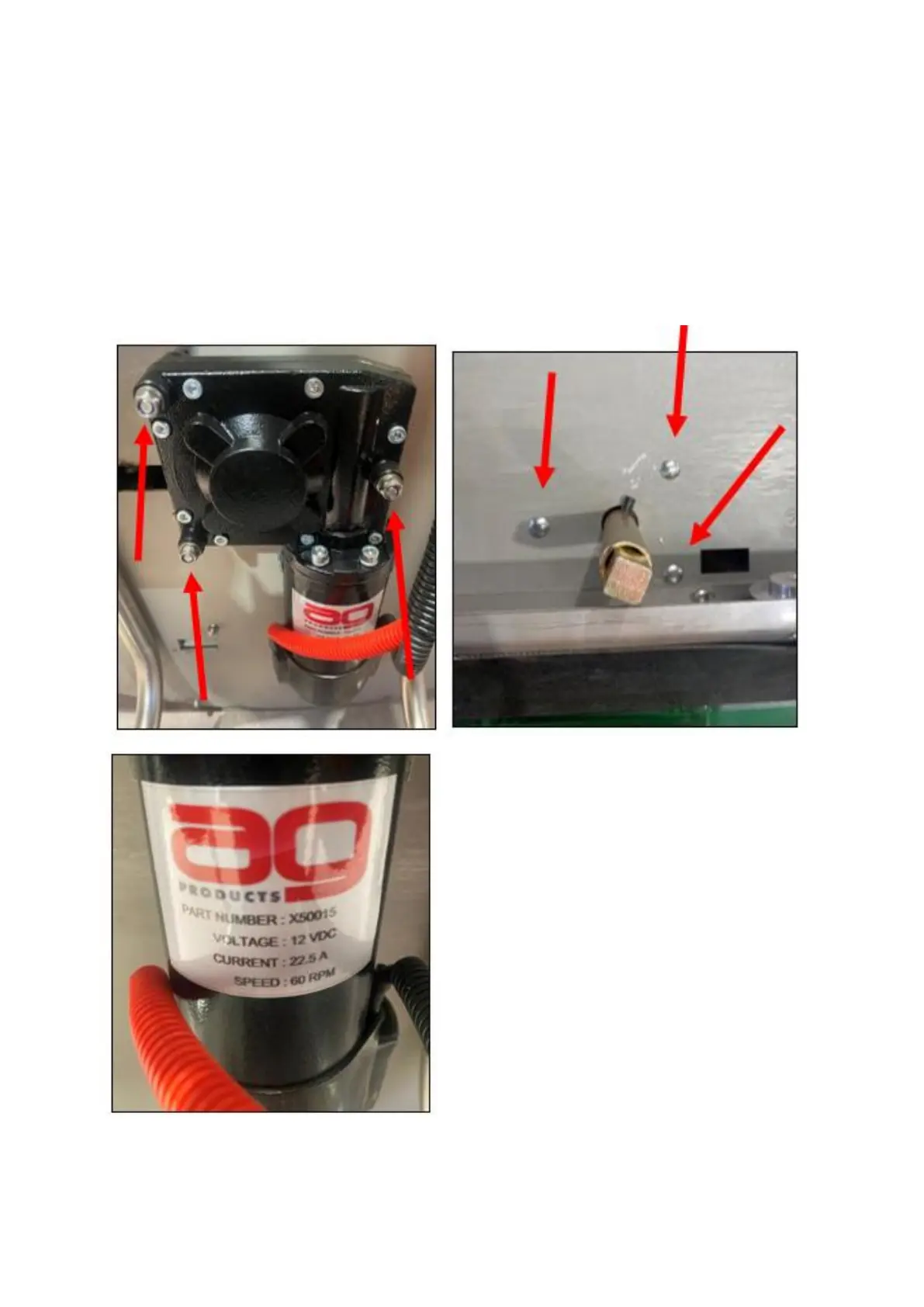

The agitator motor and gearbox are fixed to the underside of the AG Maxi chassis, above the
battery. The 3x M6 cup-head bolts fix the motor and gearbox to the AG Maxi chassis. Bolts
are fitted through the top side of the chassis, next to the conveyor and proceed through the
gearbox housing as illustrated below. 12 V from the electrical enclosure powers the agitator
motor.
Attached to the AG Maxi agitator motor is
information including part number, voltage
and current speed.
