5.4 TIMING-BELT TENSION

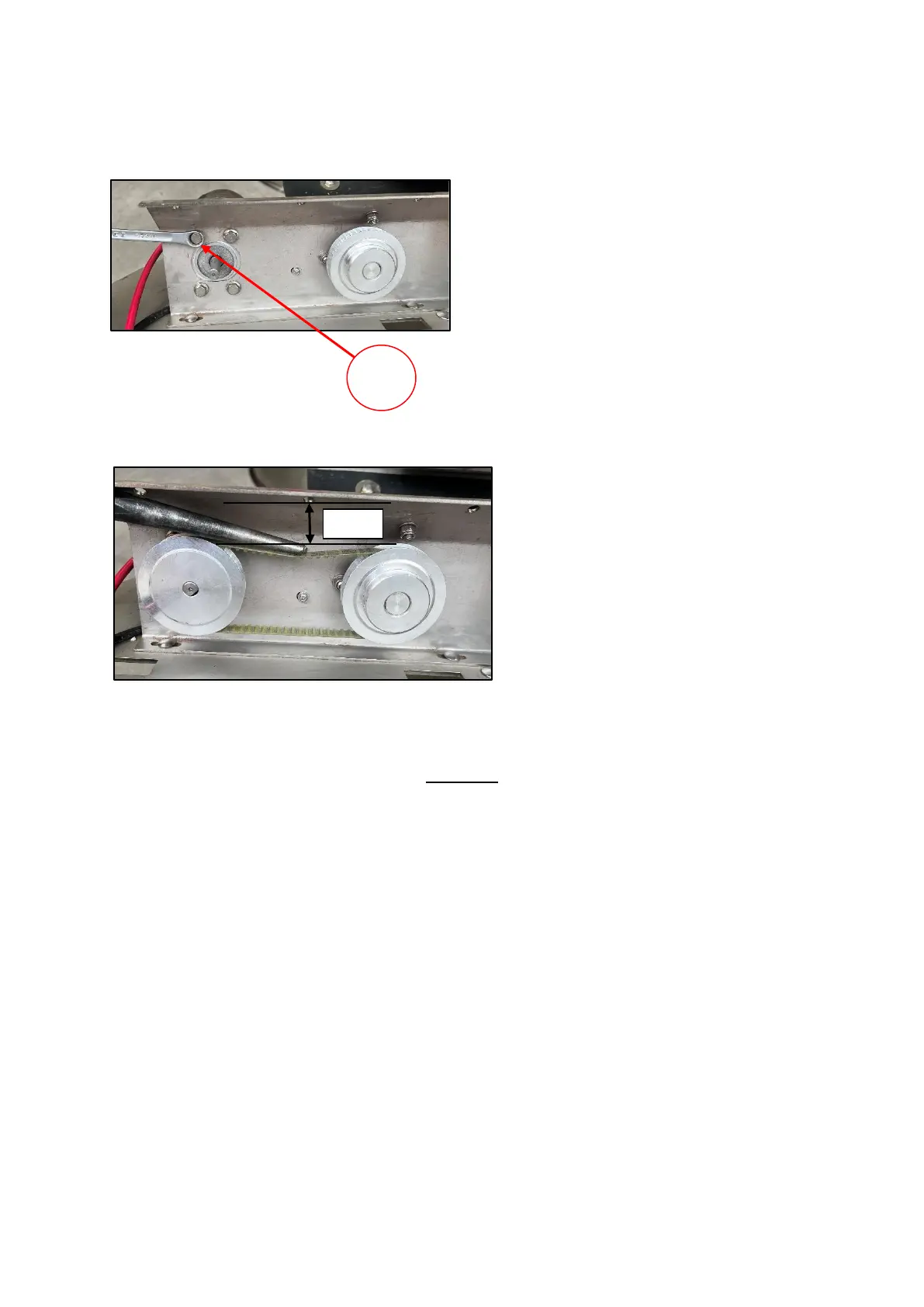

Altering the bolt (A) will allow the timing belt

to be altered to the amount shown in the

photo.

To remove the pulley, unscrew the grub

screw located on the pulley.

After the guard is removed, the pulleys

and timing belt are then shown. Tension

on the timing belt must be set at 5 mm.

Excessive belt tension will cause undue

motor wear, resulting in loss of power on

the conveyor belt.

CAUTION

Excessive V-belt tension will void any warranty.

5 mm
