AGA TC3 - Mains Supply Location and Isolation

Data plate located behind toe-kick,
pull toe-kick to remove.
Mains cable fed from control tray
right-hand exit through ducting
dependent upon position of supply
socket
The mains supply connection and isolation point must be within the zone shown

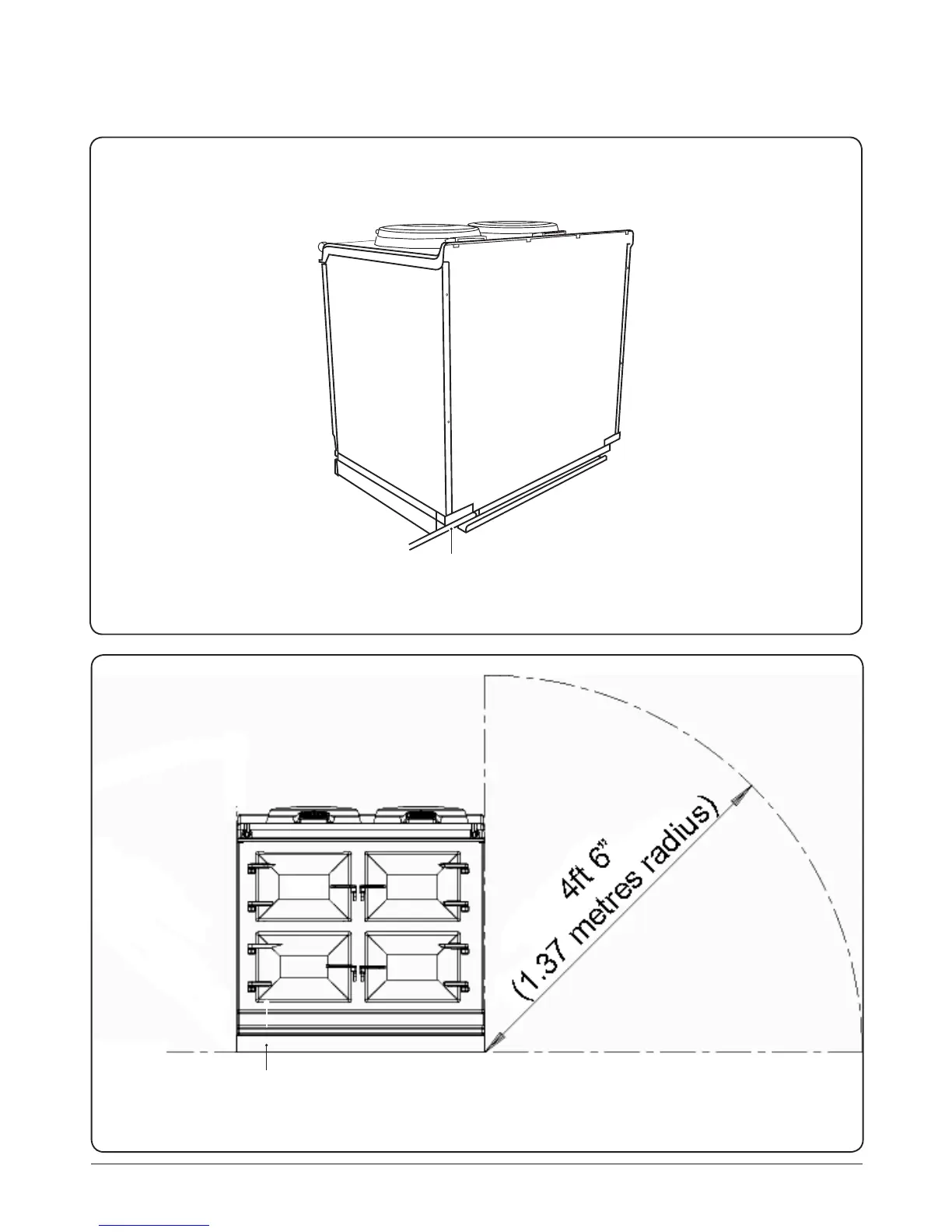

DESN 516295
DESN 517444
Mains Supply Location
33
Fig. 13.1
Fig. 13.2
