About the Lancing System
Note: Lancing devices and Lancets are only intended for a single
user and should not be shared between users.

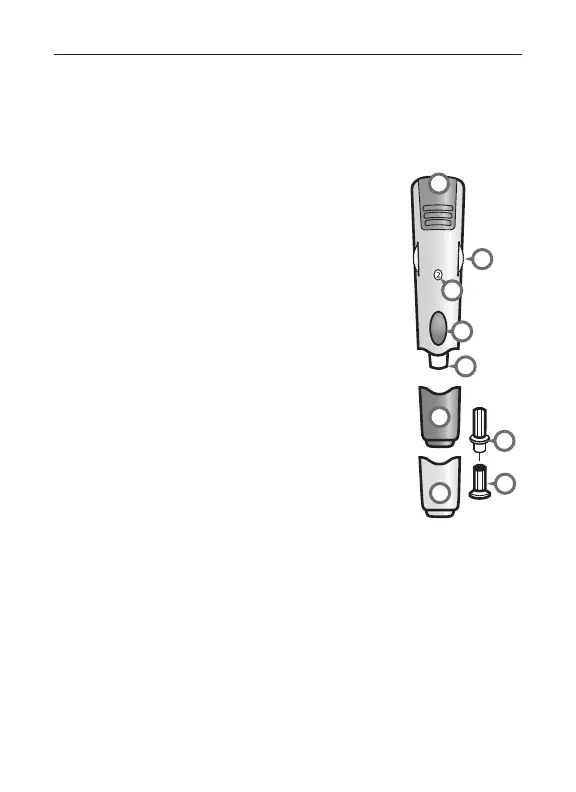

(1) Cocking Handle: Cocks the device so
it is ready to lance.
(2) Depth Adjustment Dial: Adjusts how
deep the lancet will lance the skin.
(3) Depth Indicator Window: Displays
the depth setting of the lancing device.
(4) Release Button: Fires the lancet.
(5) Lancet: Lances the skin to produce a
drop of blood.
(6) Lancet Cover: Covers the lancet for
safety.
(7) Lancing Device Cap: Covers the lancet
when in lancing device.
(8) Alternate Site Testing Cap: An AST clear lancing device
cap used for obtaining a blood sample on the palm (at the
base of the thumb) or forearm.
(9) Lancet Holder Cup: Holds the lancet into place inside the
lancing device.
2
1
3
4
8
7
5
6
9
