Engine Component Removal and Installation

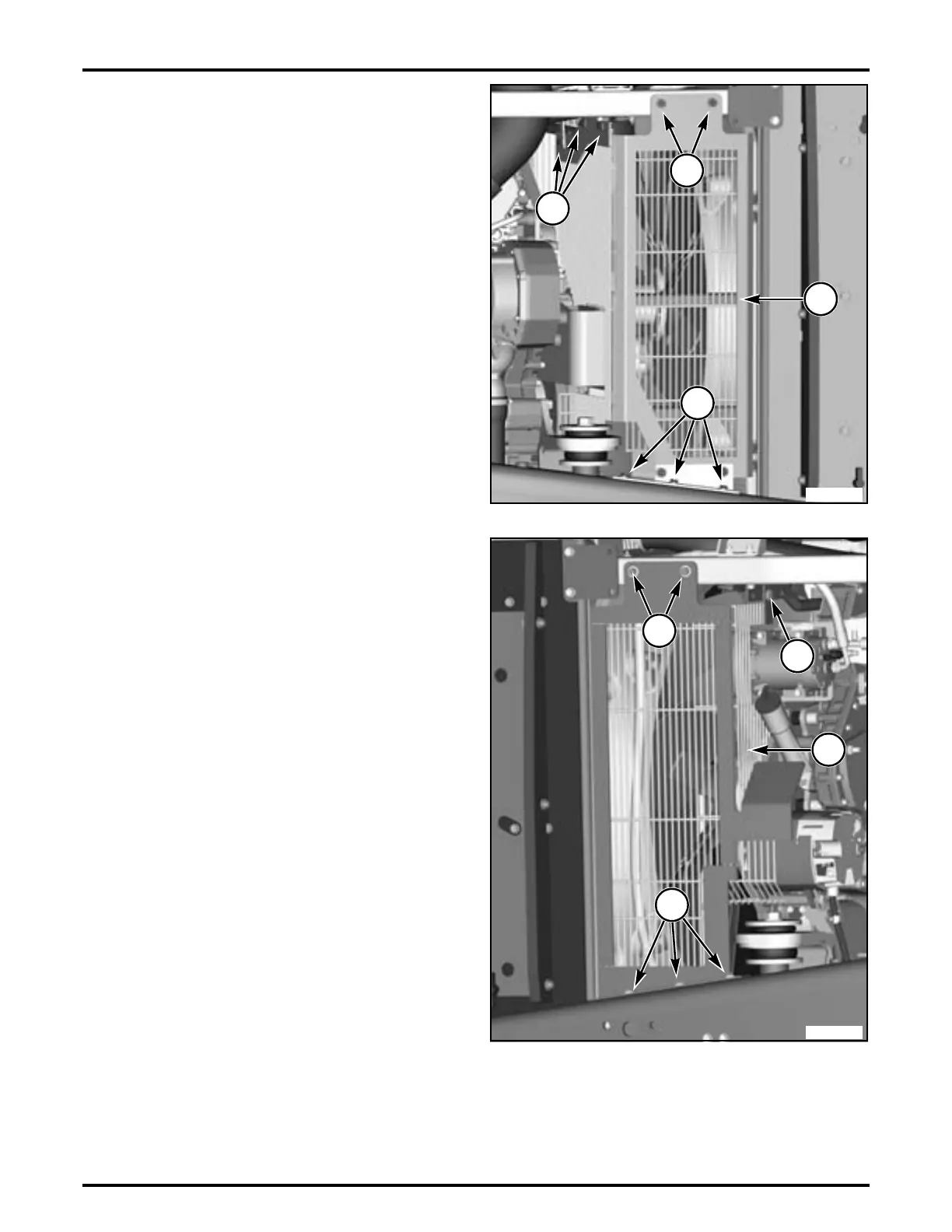

FIG. 9: Install right guard.
Install guard (2) and install bolts and washers (1) and
tighten. Torque to 55 Nm (40 lbf ft).
FIG. 10: Install left guard.
NOTE: This step can be skipped if the left guard was not
removed.
Install guard (2) and install bolts and washers (1) and
tighten. Torque to 55 Nm (40 lbf ft).
FIG. 9
1
2
1
1
N011906001
FIG. 10
1
1
2
1
N012606004
