Chapter 2: Installing the Scanner 19

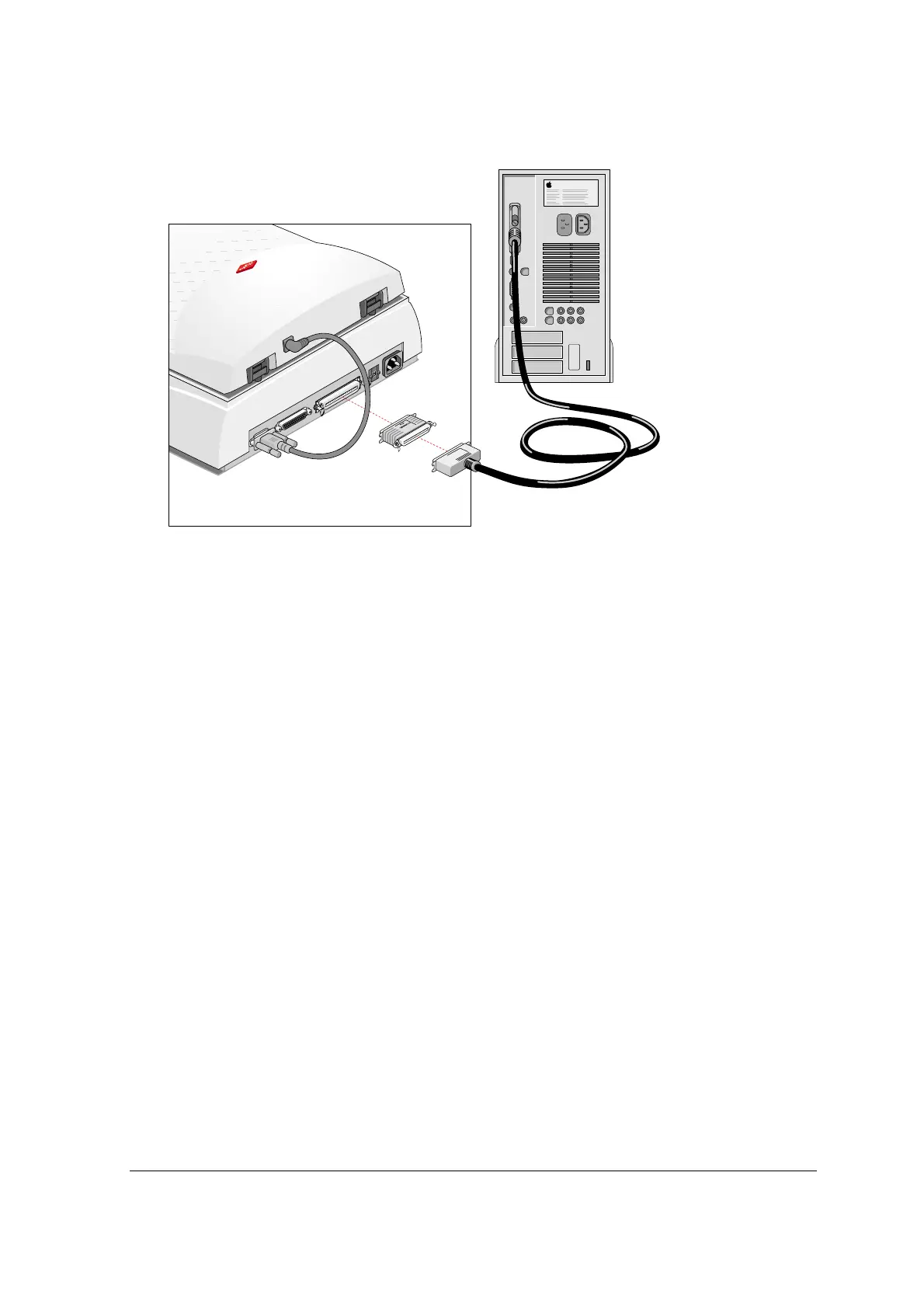

If your Arcus 1200 is the only external SCSI device to be connected to your Apple
Macintosh:
1
Place the terminator on the 50-pin connector of the scanner.
2
Snap the diamond shaped wire clips into the clip brackets to secure the connection.
3
Connect the 50-pin end of the SCSI cable to the free side of the terminator.
4
Snap the diamond shaped wire clips into the clip brackets to secure the connection.
5
Connect the smaller 25-pin end of the SCSI cable to the connector of your Apple Macintosh.
6
Tighten the connector screws to secure the connection.
