Chapter 2: Installing the Scanner 20
If your Arcus 1200 will be connected to your Apple Macintosh together with other external
SCSI devices:

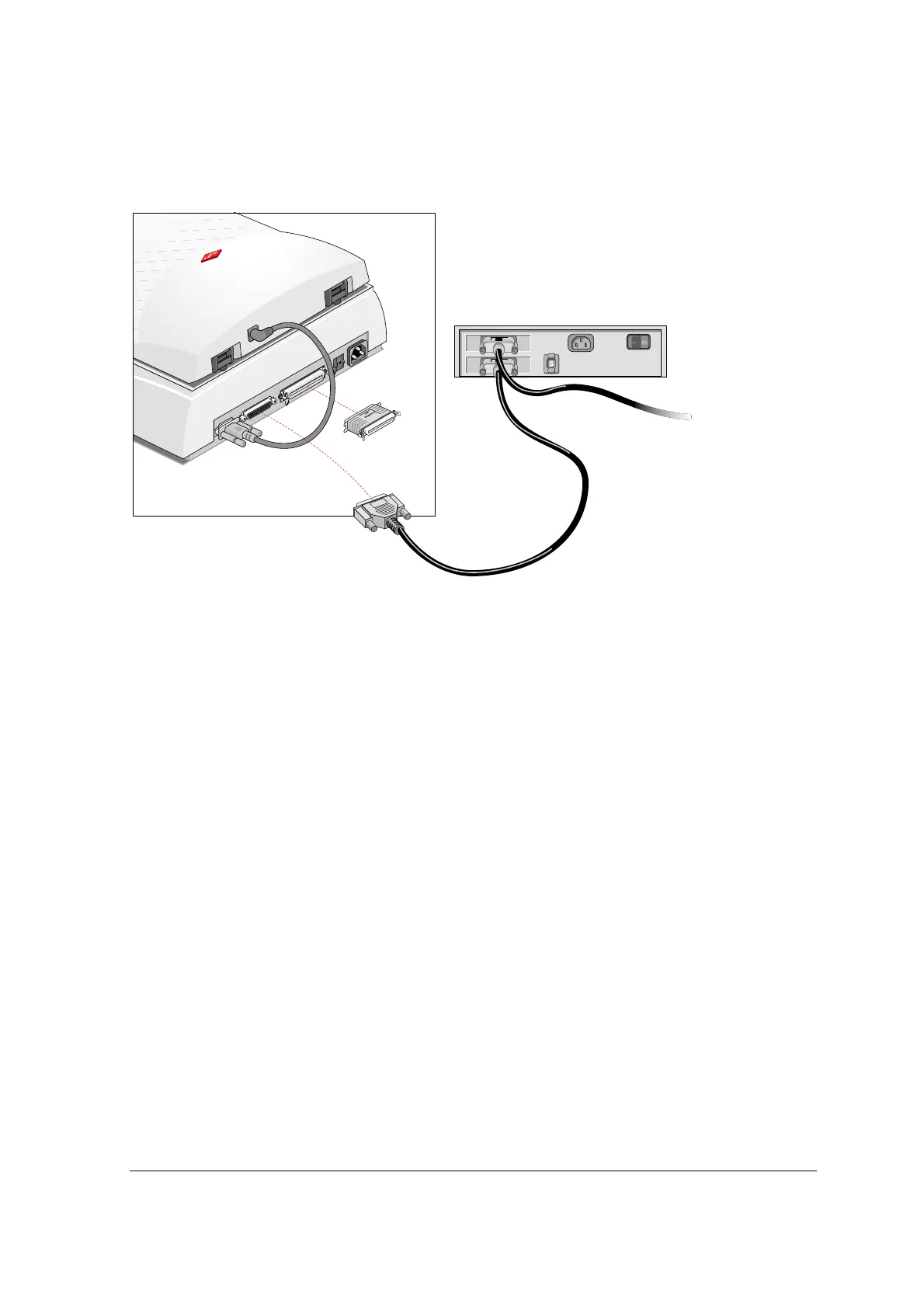

If you install the scanner at the end of your SCSI chain
1
Remove or switch off the terminator from the last device in the SCSI chain.
2
Connect the 50-pin end of the SCSI cable to the connector that has become available on this
device.
3
Snap the diamond shaped wire clips into the clip brackets to secure the connection.
4
Connect the 25-pin end of the SCSI cable to the 25-pin connector of the scanner.
5
Tighten the connector screws to secure the connection.
6
Place the terminator on the 50-pin connector of the scanner.
