The display
The CR 85-X control panel has a backlit LCD display with 8 lines of 40
characters each. Its lay-out depends on the operating mode.

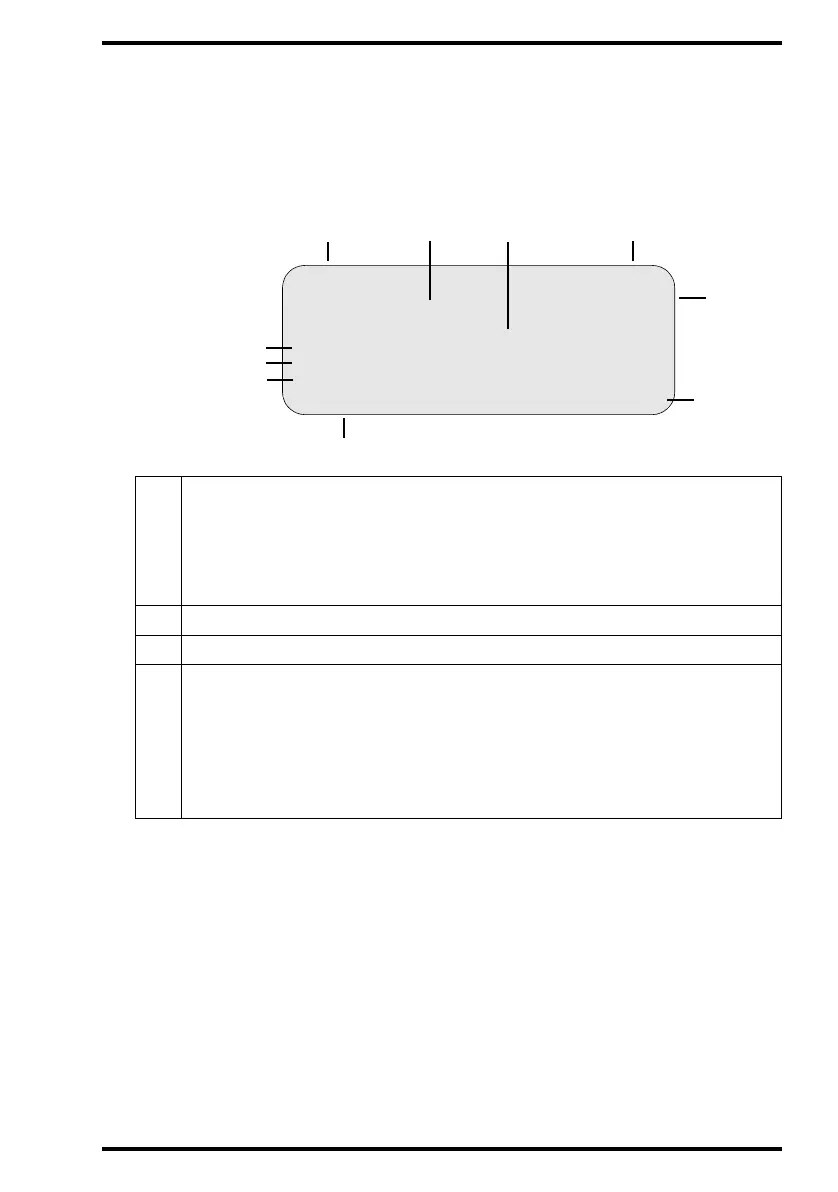

" In operator mode, the display has dedicated areas for specific information:
1
Set-up of image processing station:
• [blank]: Default image processing station selected.
• Off line: Transmission to all image processing stations disabled.
• [process.station] not ready: Image processing station not available.
• [process.station] rerouted: Images rerouted to other image processing station.
2
Type of message
3
Extra comment or action to take
4
System status:
• READY: The CR 85-X is ready for operation.
• BUSY: The CR 85-X is busy with scanning or erasing.
•ERROR: An error has occurred.
•LOCKED: id.
•WARNING: id.
3
1
Set-up STATUS
OPERATION MODE
1ST MESSAGE
2nd Message
Patient_Last_Name Sub_Exam
Patient_Last_Name Sub_Exam
Patient_Last_Name Sub_Exam
Station Name ERROR
5
6
8.1
8.2
8.3
