DX- D 600
User Manual
0242F EN 20181218
58

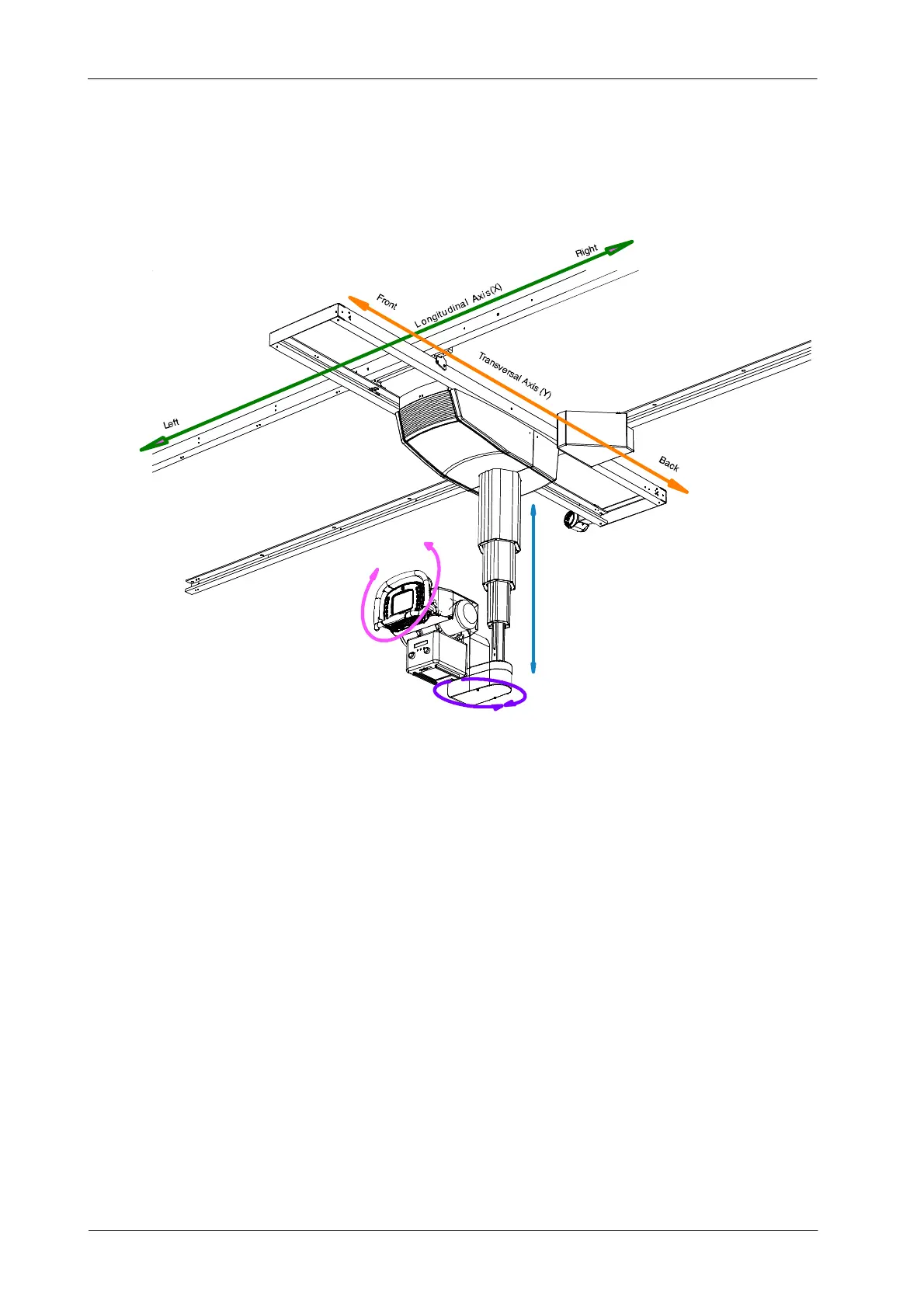

Illustration 4-2
Ceiling Suspension Axis and Travels
¦135
o
X-ray Tube Angulation
in Alpha Axis
¦180
o
X-ray Tube Angulation
in Beta Axis
Down UpVertical Axis (Z)
CARRIAGE
The Carriage contains some electronics and mechanics components of the
Ceiling Suspension and supports the Telescopic Column, L-Block Assembly,
X-ray T ube Support with the Tube, Collimator and Control Console.
TELESCOPIC COLUMN
It is composed of four different sized hexagonal tubes of steel. Fi xed to the
Carriage, the Telescopic Column allows vertical movement of the X-ray Tube
Assembly in the V ertical Axis (Z). This motion is controlled by the V ertical Brake.
The Focal Spot vertical travel is 1570 mm (61.8”). The minimum distance
Focus-Ceiling is 737 mm (29”) and the maximum distance is 2307 mm (90.8”).
